Automatic Zone Control Module C2 (AZC) - Black 12 Way Connector End View

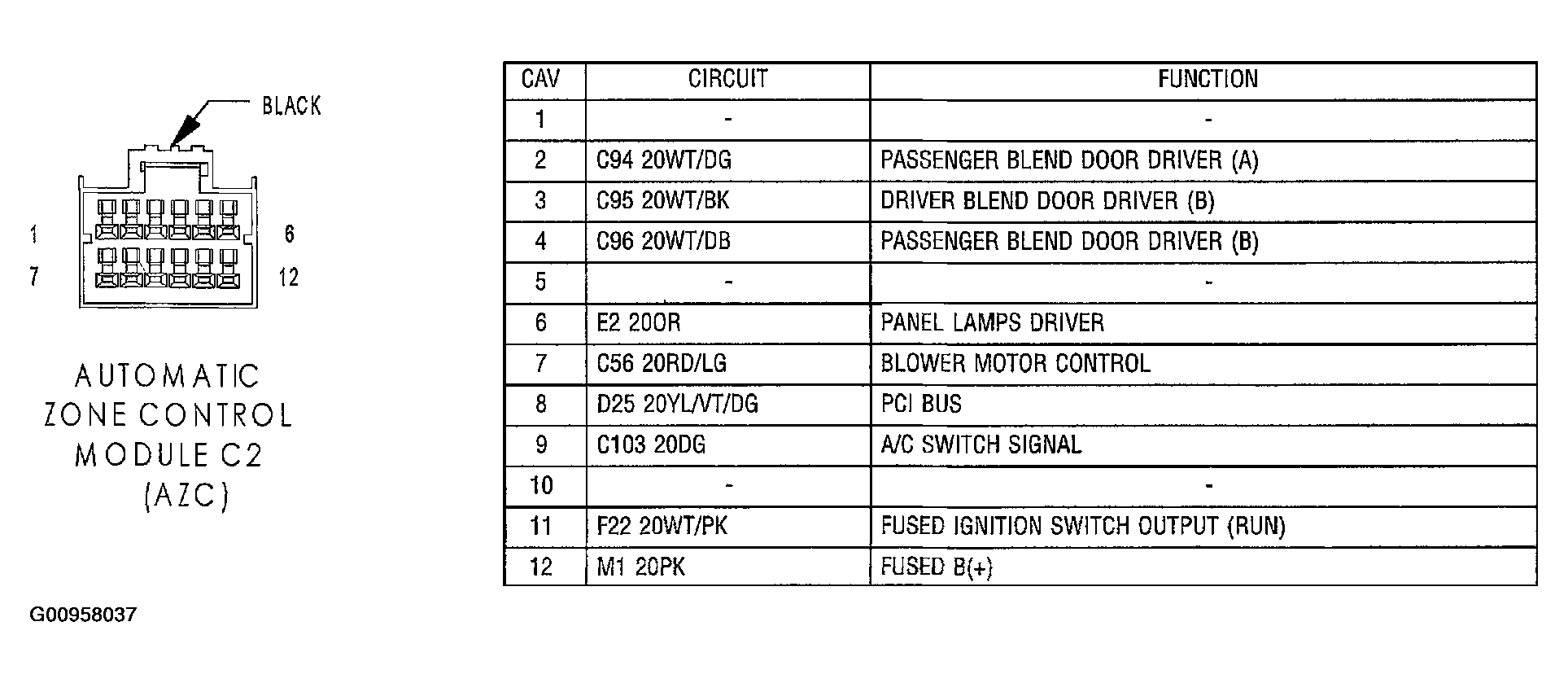

Fig 1: Automatic Zone Control Module C2 (AZC) - Black 12 Way Connector End View

G00958037

Courtesy of CHRYSLER GROUP, LLC
