Powertrain Control Module (Gas) Connector End View (C3)

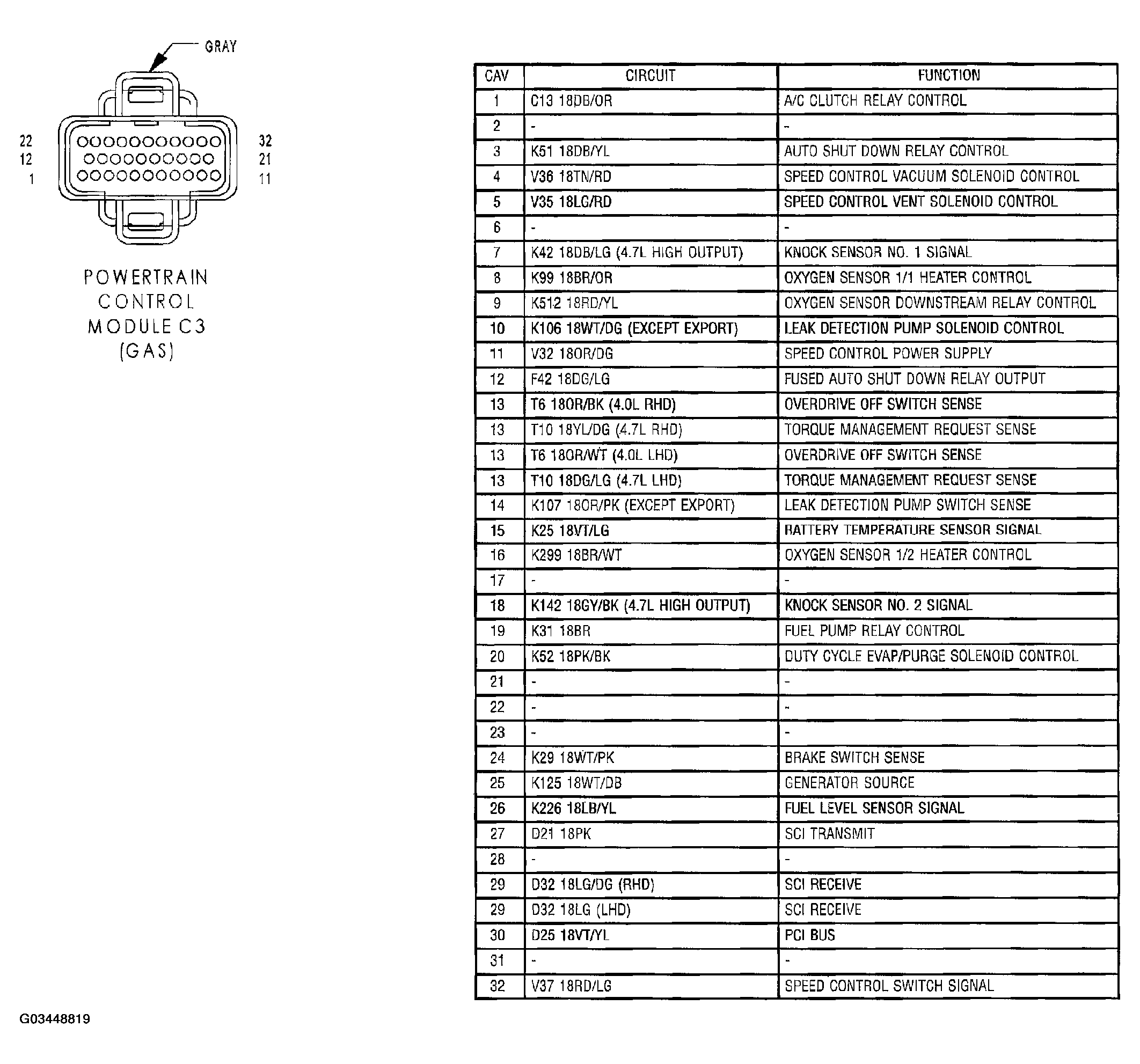

Fig 1: Powertrain Control Module (Gas) Connector End View (C3)

G03448819

Courtesy of CHRYSLER GROUP, LLC
