Powertrain Control Module (Gas) Connector End View (C2)

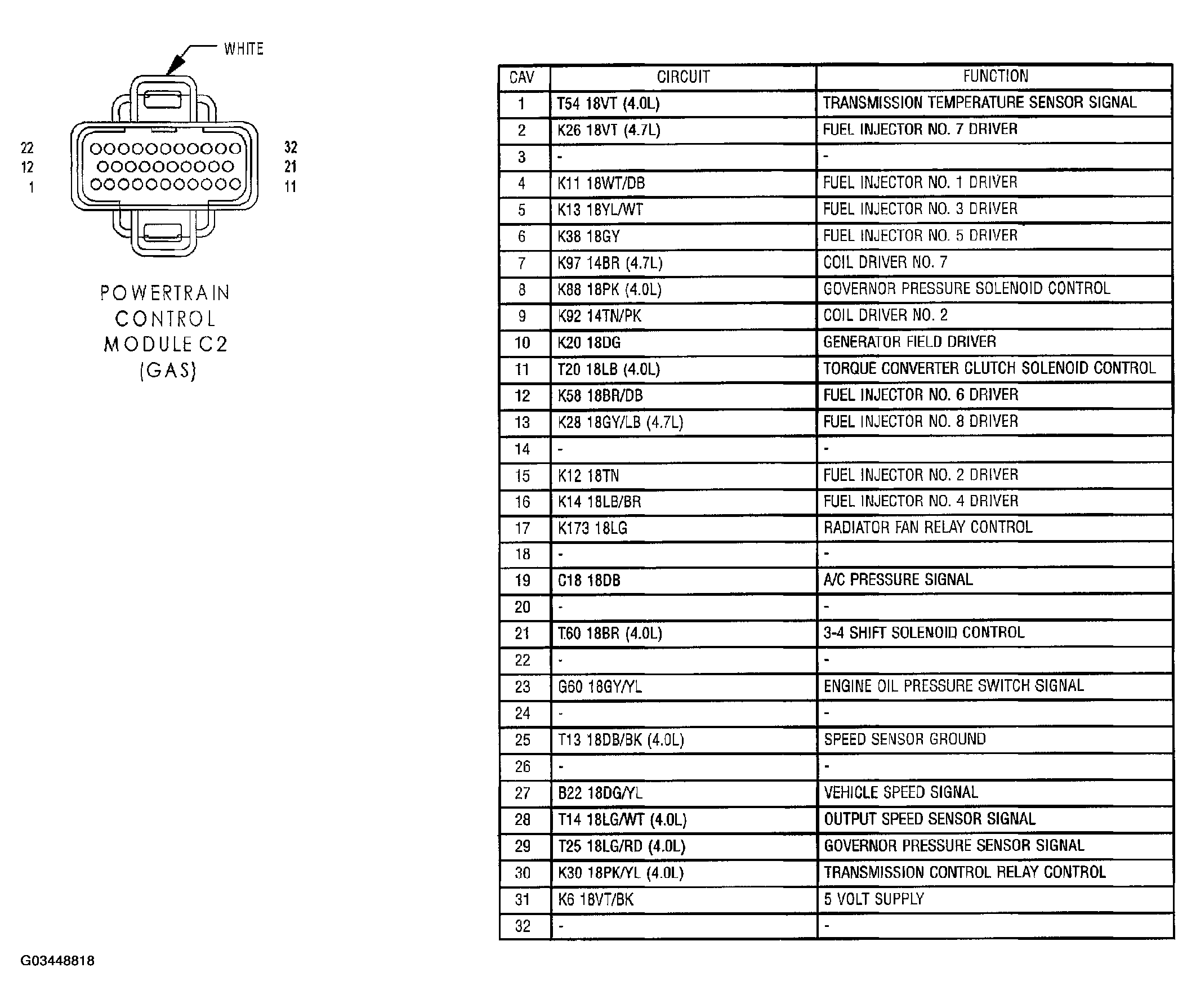

Fig 1: Powertrain Control Module (Gas) Connector End View (C2)

G03448818

Courtesy of CHRYSLER GROUP, LLC
