Section 2 (Power Steering System): Steering: Description

WARNING: This page is about a different car, the 2002 Jeep Wrangler. However, it is still accessible from the selected car via links, so may be relevant.

The power steering system has a hydraulic pump. The pump is a constant flow rate and displacement vane-type pump. The pump reservoir on the 4.0L engine is mounted to the pump body. The 2.5L engine has a remote pump reservoir mounted to the fan shroud.

The steering gear used is a variable ratio recirculating ball type gear. A tilt and non-tilt column provide steering input.

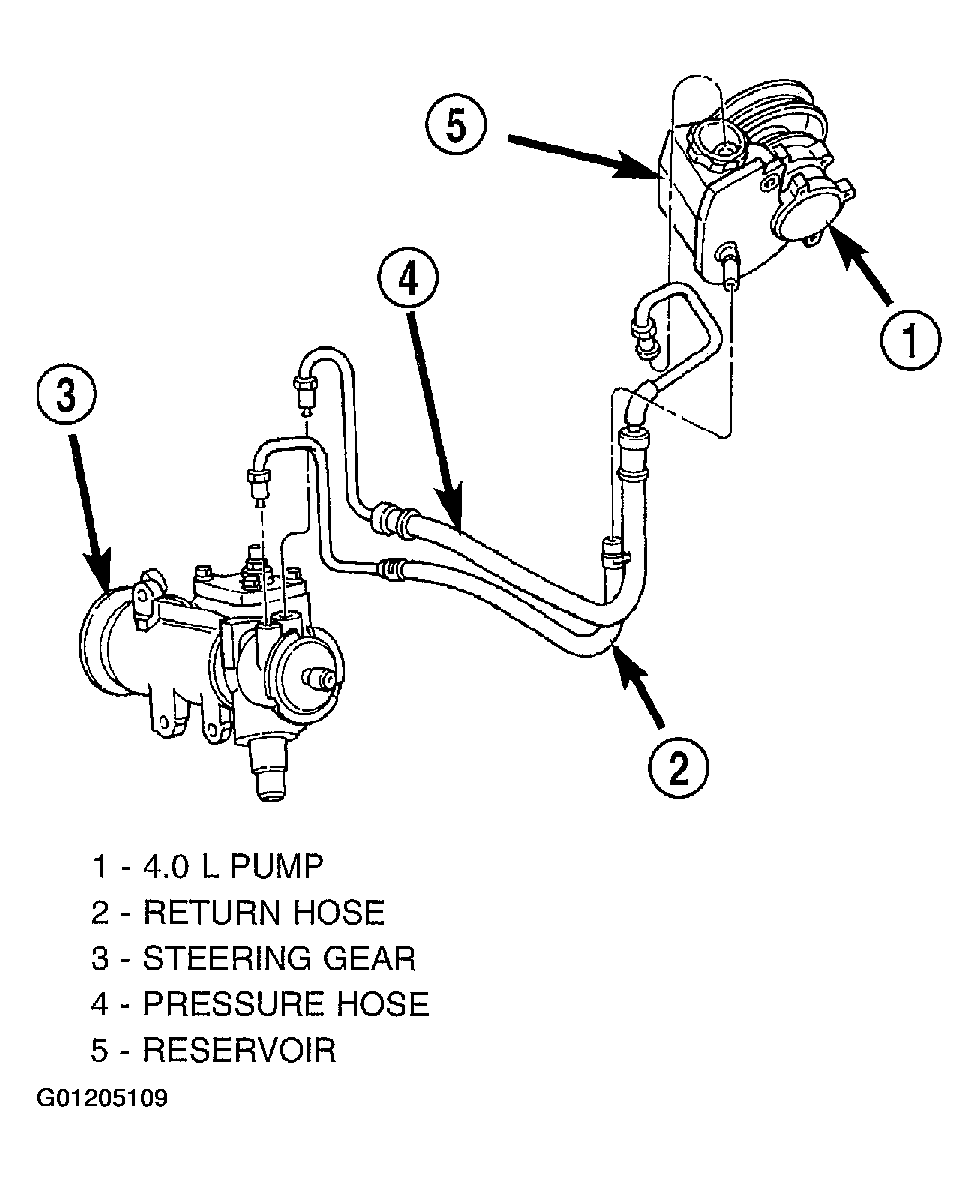

Fig 1: Identifying Power Steering Gear & Pump - 4.0L
G01205109Courtesy of DAIMLERCHRYSLER CORP.

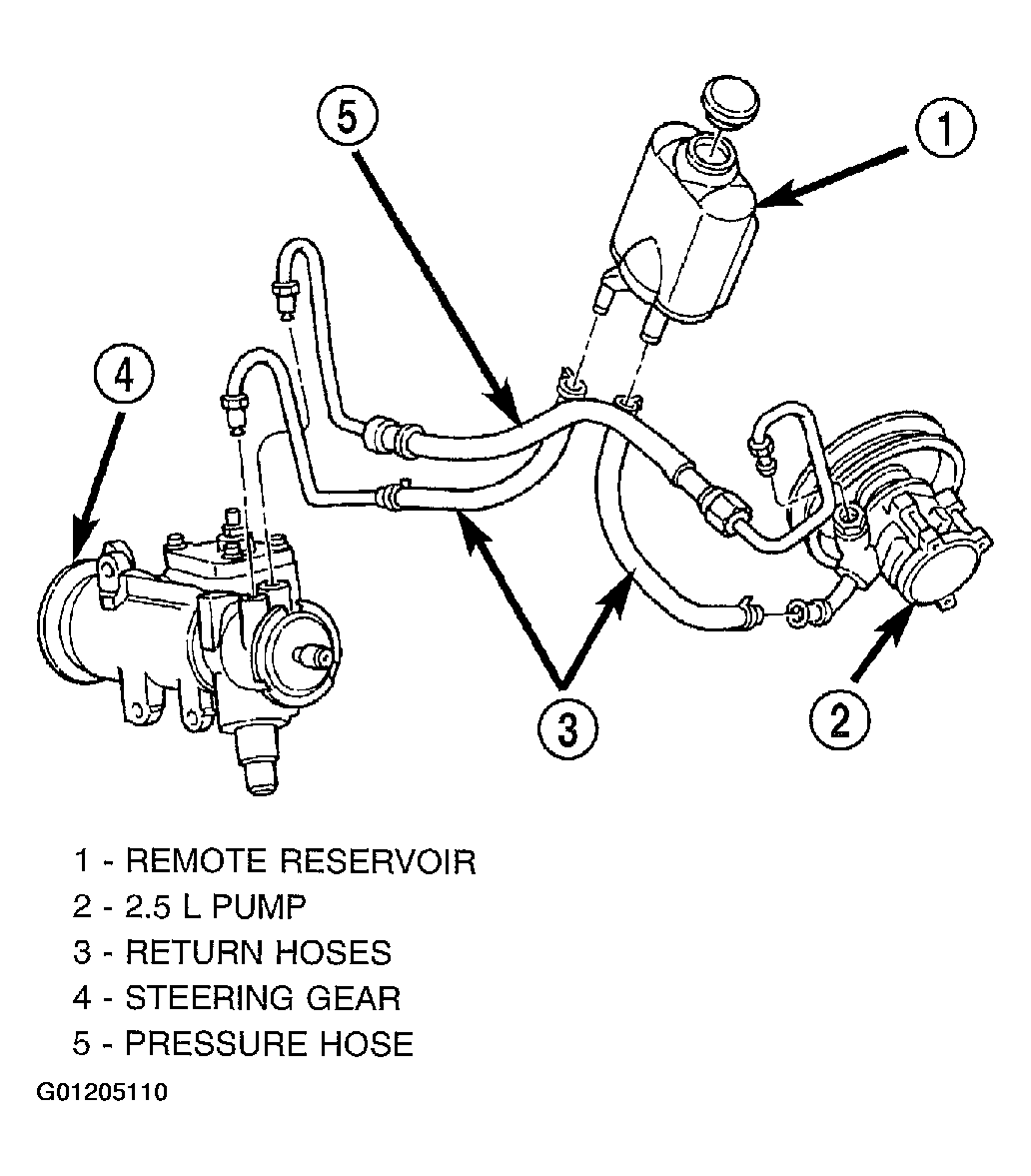

Fig 2: Identifying Power Steering Gear & Pump - 2.5L
G01205110Courtesy of DAIMLERCHRYSLER CORP.
