Power Distribution Center Identification: Notes

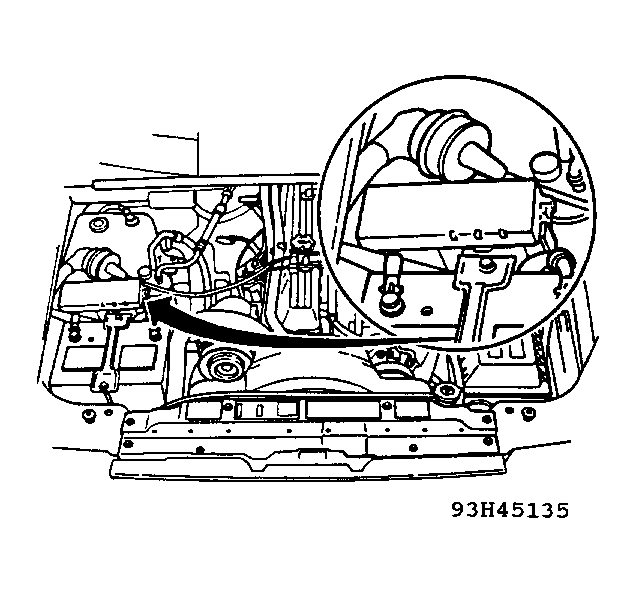

Fig 1: Power Distribution Center Location
Courtesy of CHRYSLER CORP.

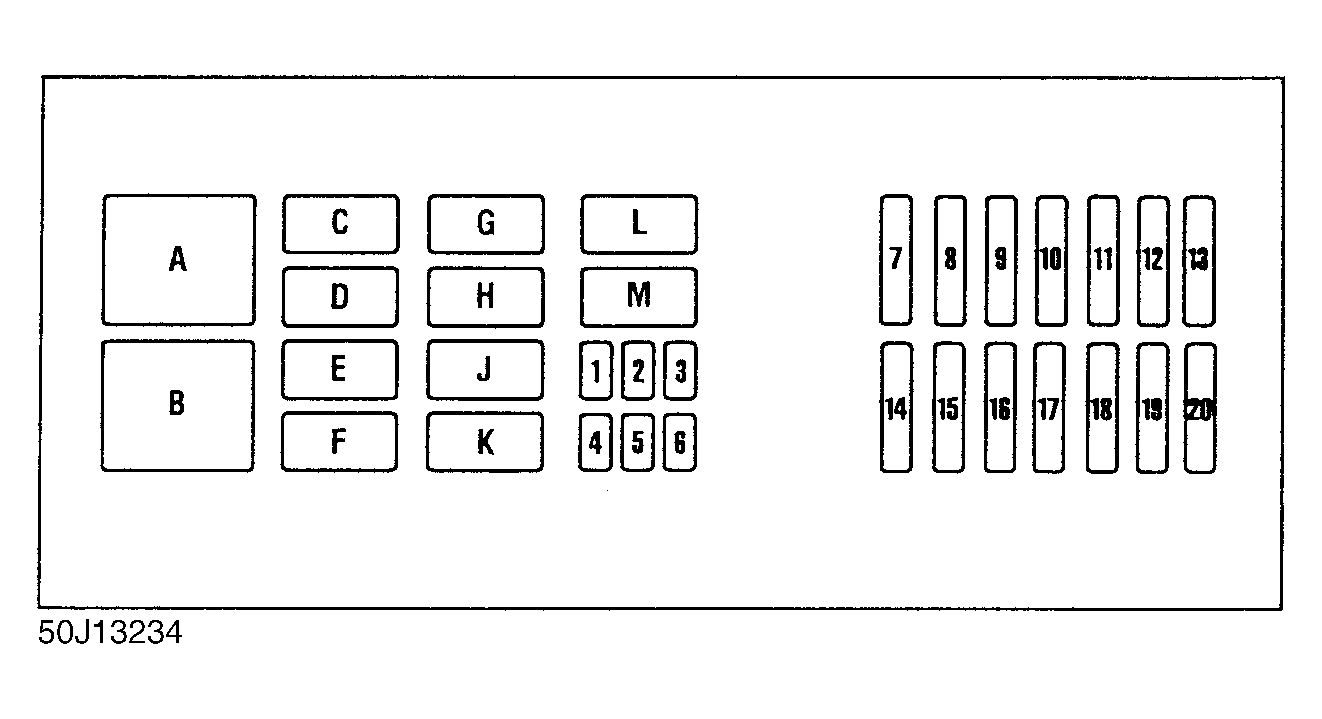

Fig 2: Power Distribution Center Identification
Courtesy of CHRYSLER CORP.
WARNING:
Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
