AW-4 Automatic Transmission

Disconnect park/neutral switch. Check continuity of park/neutral switch with shift selector in specified position. See Fig 1 . If continuity is not as specified, replace switch.

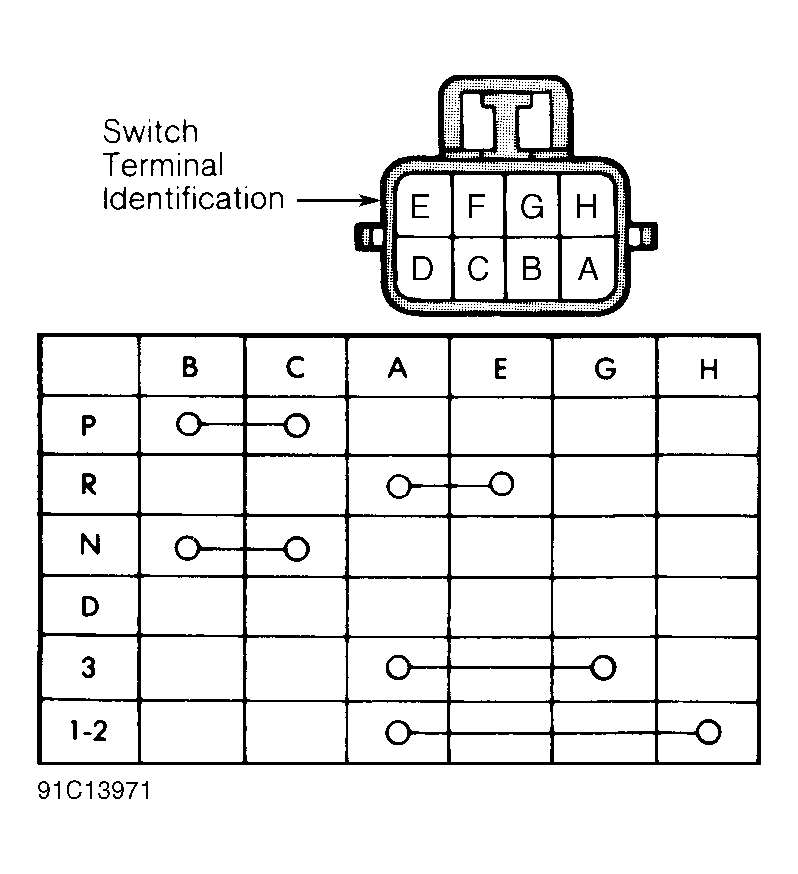

Fig 1: Testing Park/Neutral Switch Continuity (AW-4 Auto. Trans.) (Cherokee)
G91C13971Courtesy of CHRYSLER CORP.
