Power Seat Switch Test

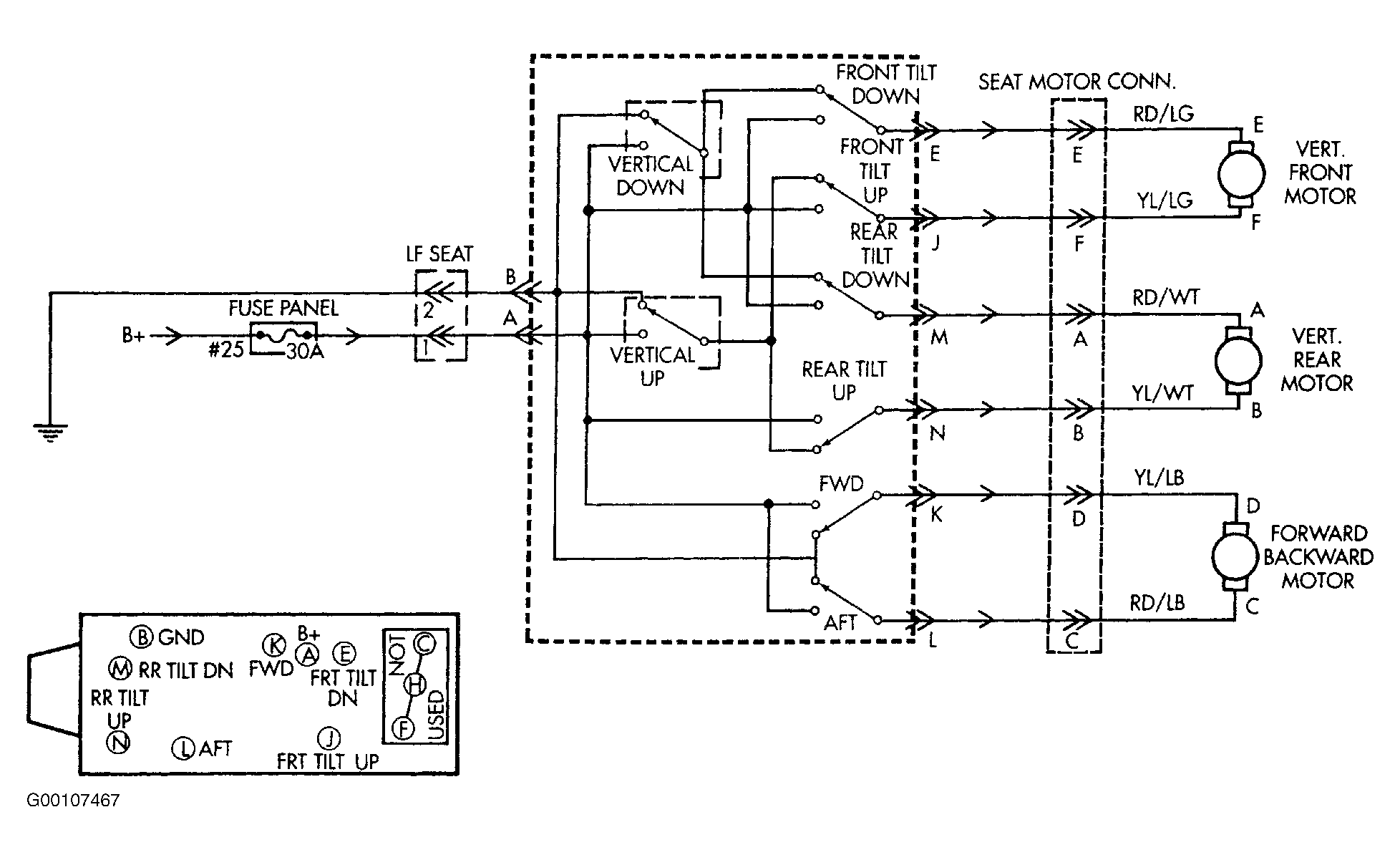

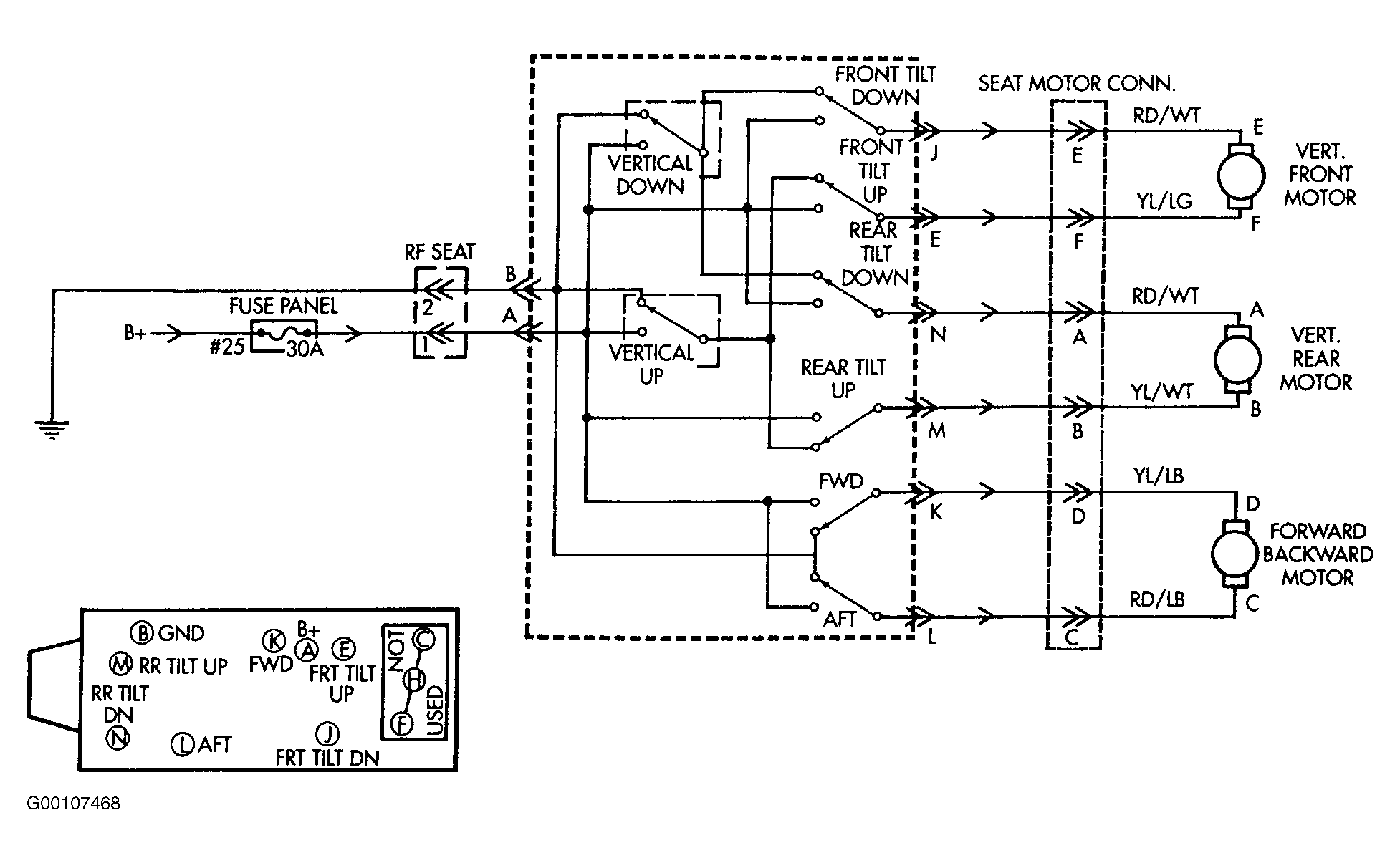

To check the switch, remove the switch from its mounting position. Using an ohmmeter, check for continuity with switch in each position. See Figure and Figure . If there is not continuity at any one of the switch positions, replace the switch.
