Fuel Hoses & Clamps: Installation

When installing and connecting fitting, push fuel tube into quick-connect fitting until a "click" is heard. Ensure connection is secure by firmly pulling on fuel tube. Tube should be locked in place.

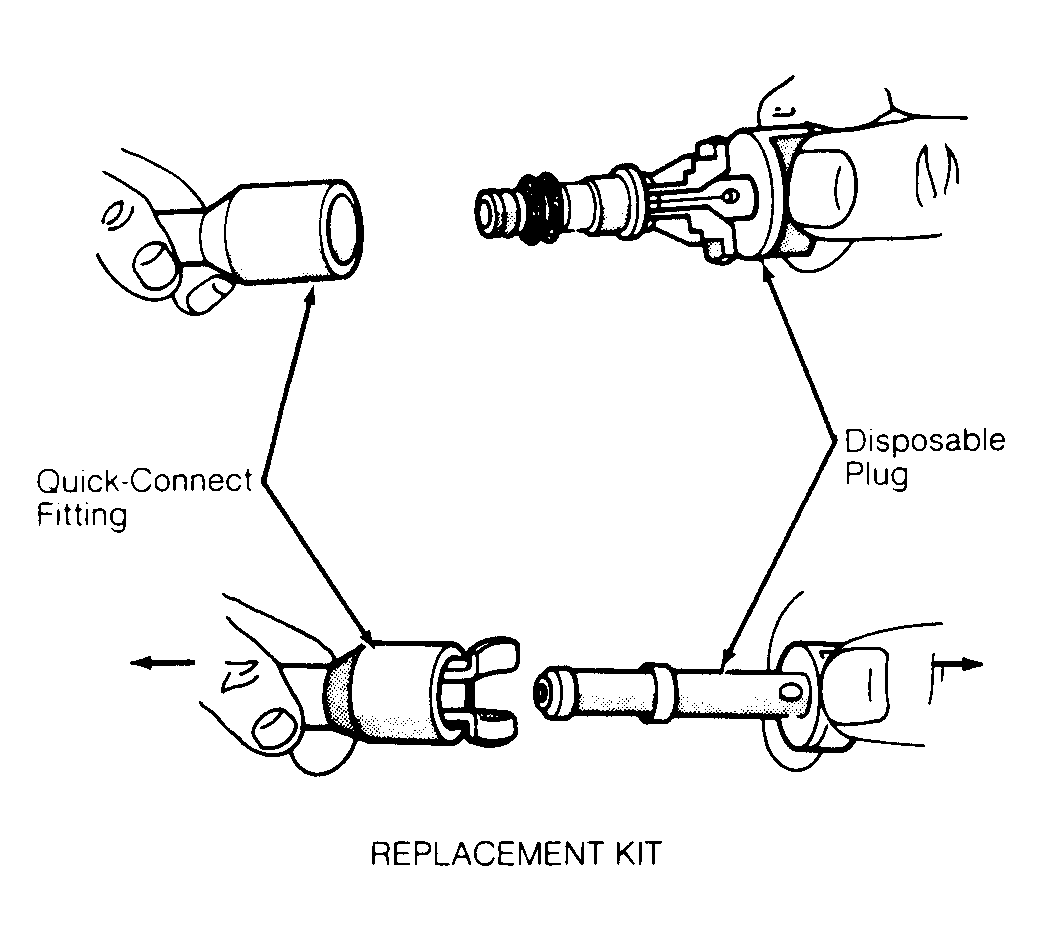

Fig 1: Quick-Connect Fitting Replacement Kit
G91A13979
