Dr-28A: Checking Coolant & TPS Calibrations
Dr-28A: Checking Coolant & TPS Calibrations

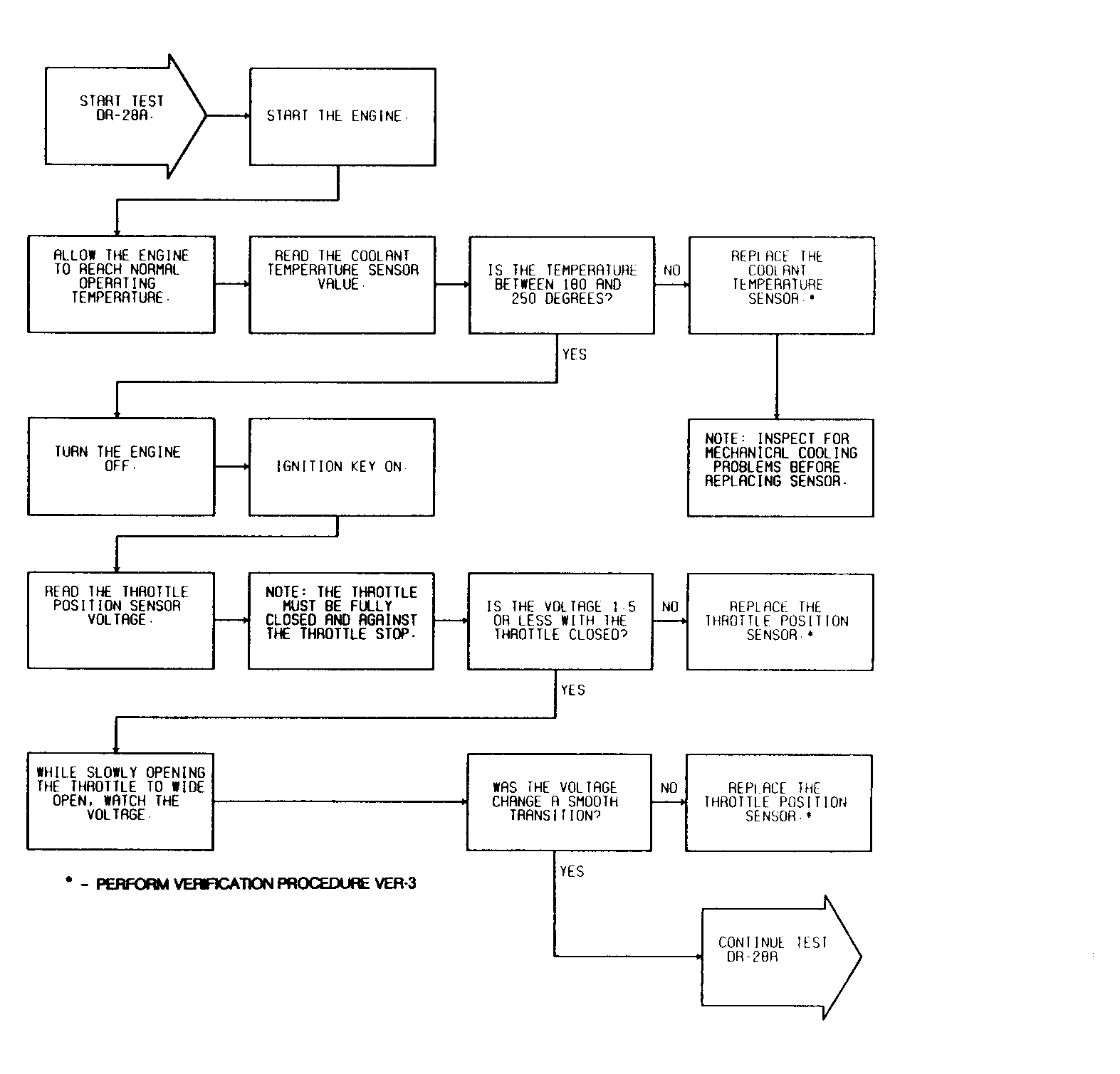

Fig 1: Test DR-28A (2 of 2) Checking Coolant & TPS Calibrations

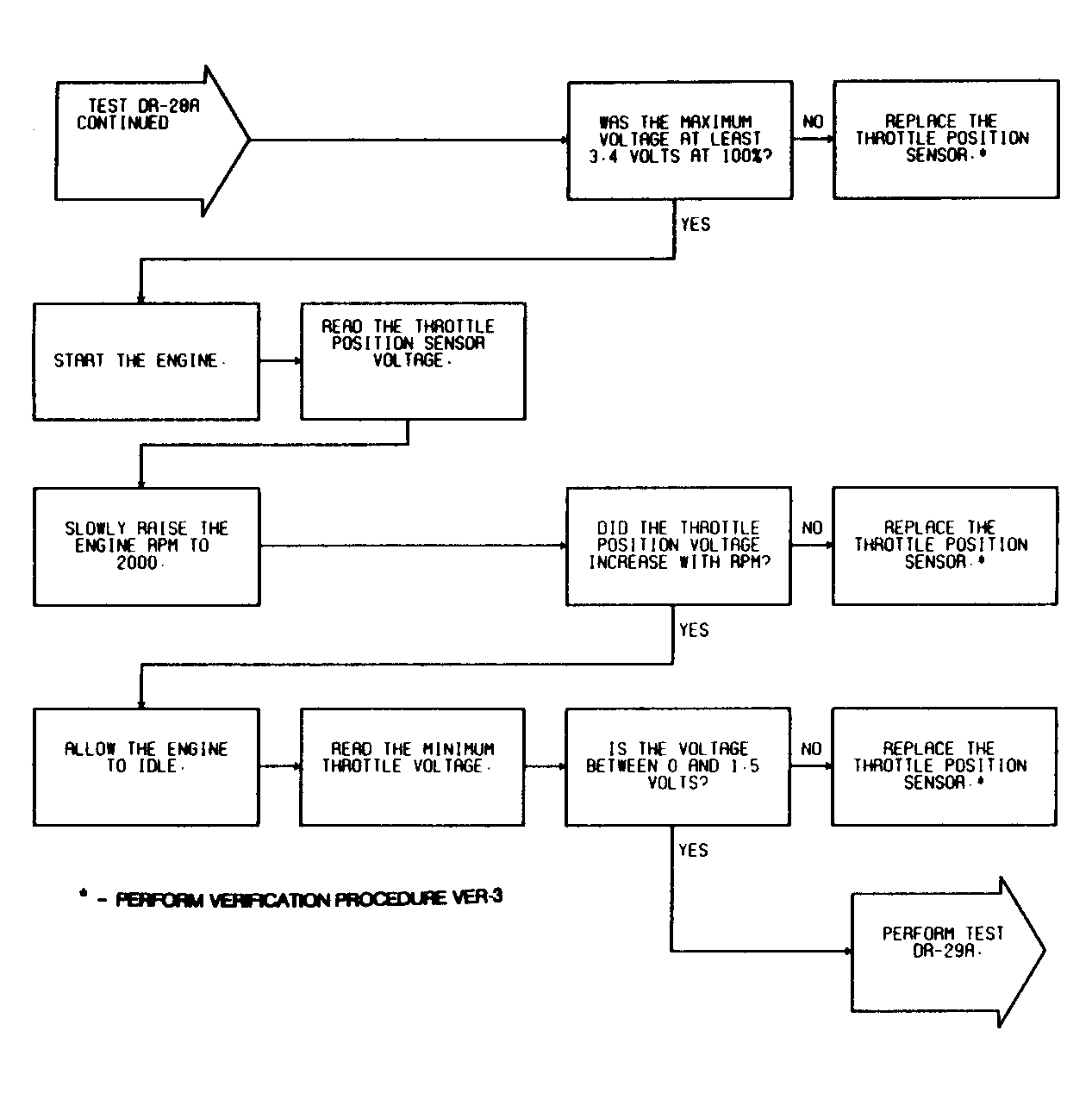

Fig 2: Test DR-28A (2 of 2) Checking Coolant & TPS Calibrations
