Fault 1053: Map Sensor Ground Circuit

Fig 1: Fault 1053: Circuit Diagram MAP Sensor Ground Circuit

G90H17712

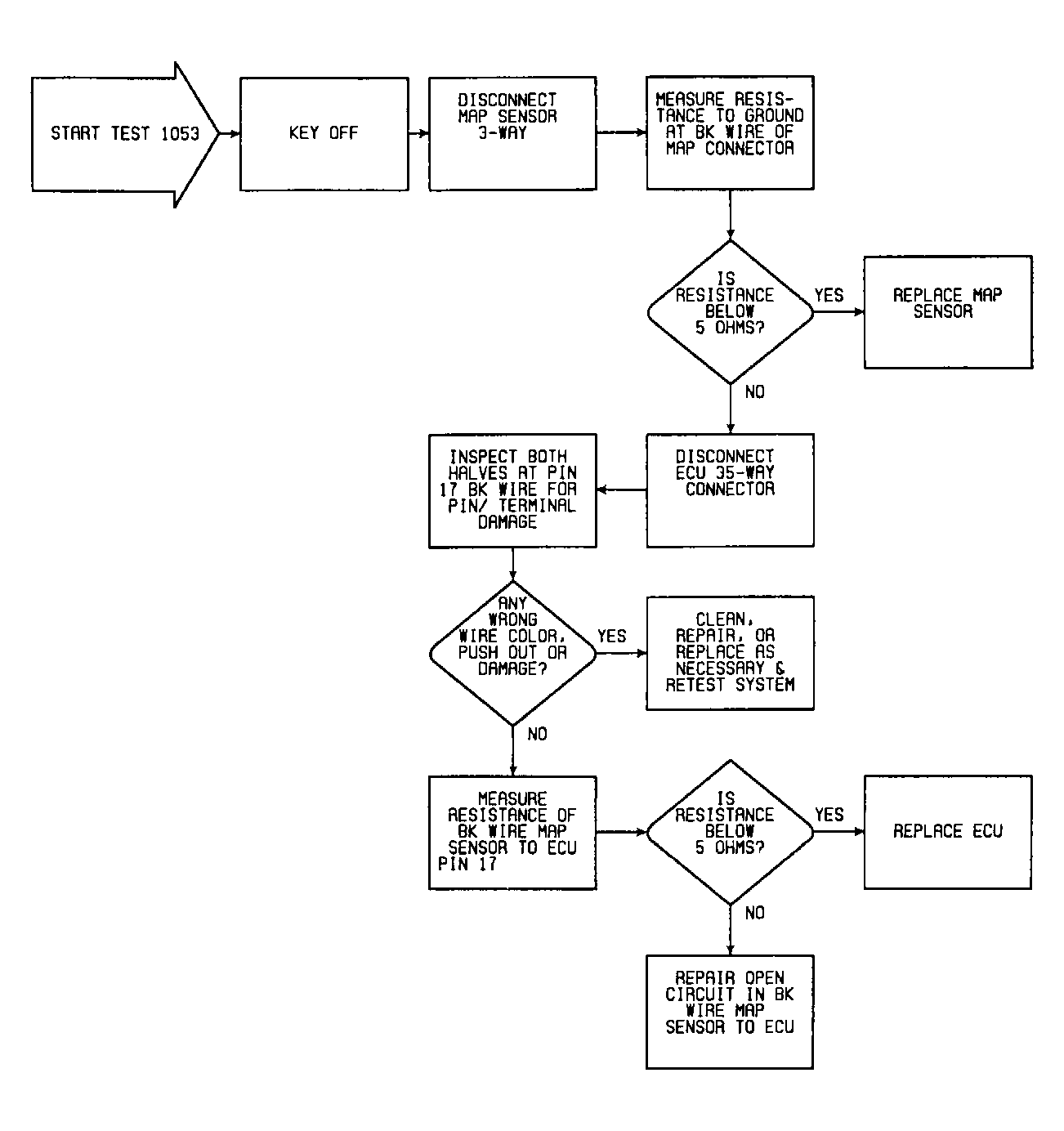

Fig 2: Fault 1053: Flow Chart MAP Sensor Ground Circuit

G90J17714
