Fault 1018: Serial Data Circuit

Fig 1: Fault 1018: Circuit Diagram Serial Data Circuit

G90B17674

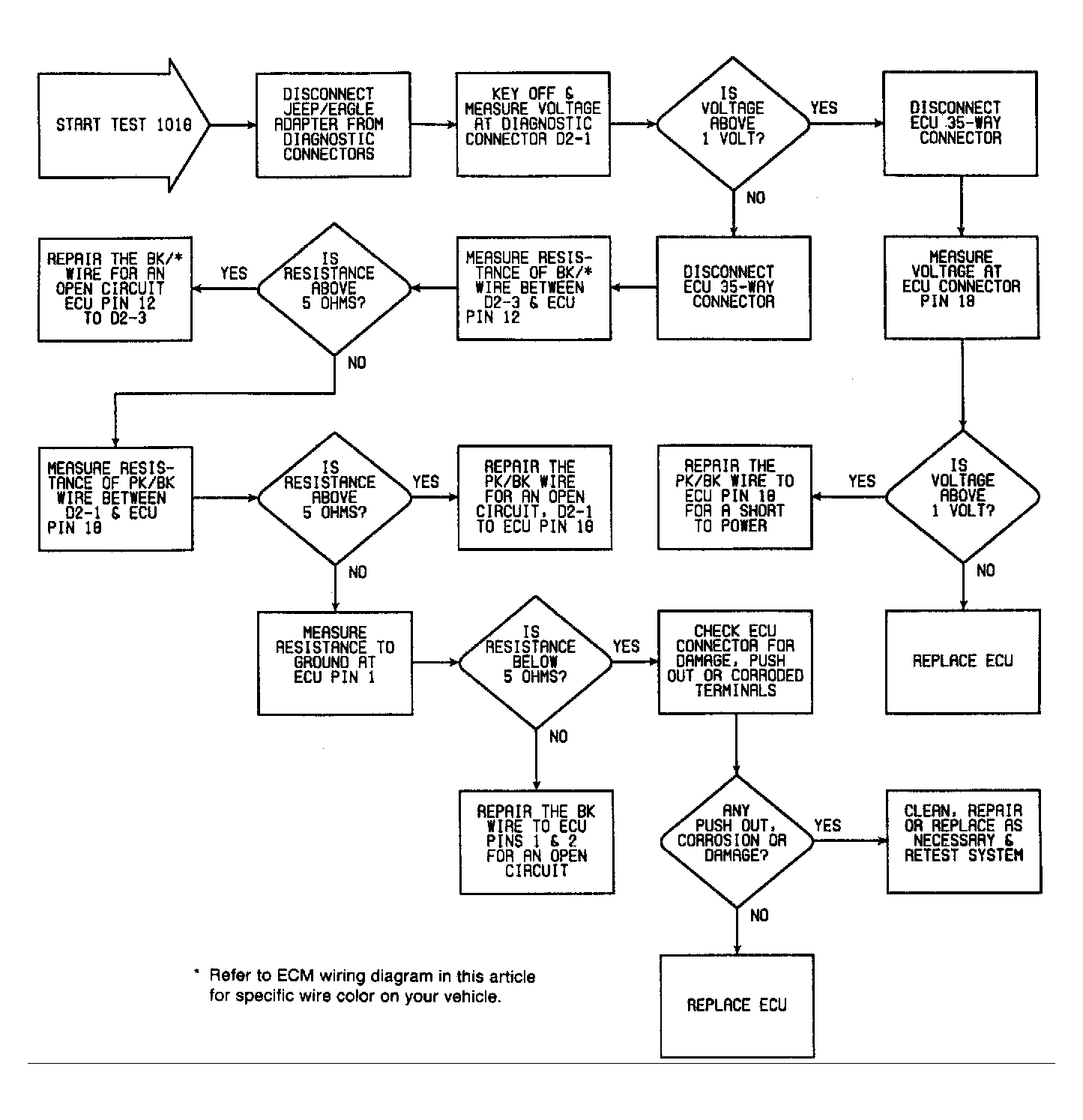

Fig 2: Fault 1018: Flow Chart Serial Data Circuit

G90C17675
