Test 10A - 808: Modulator Fault

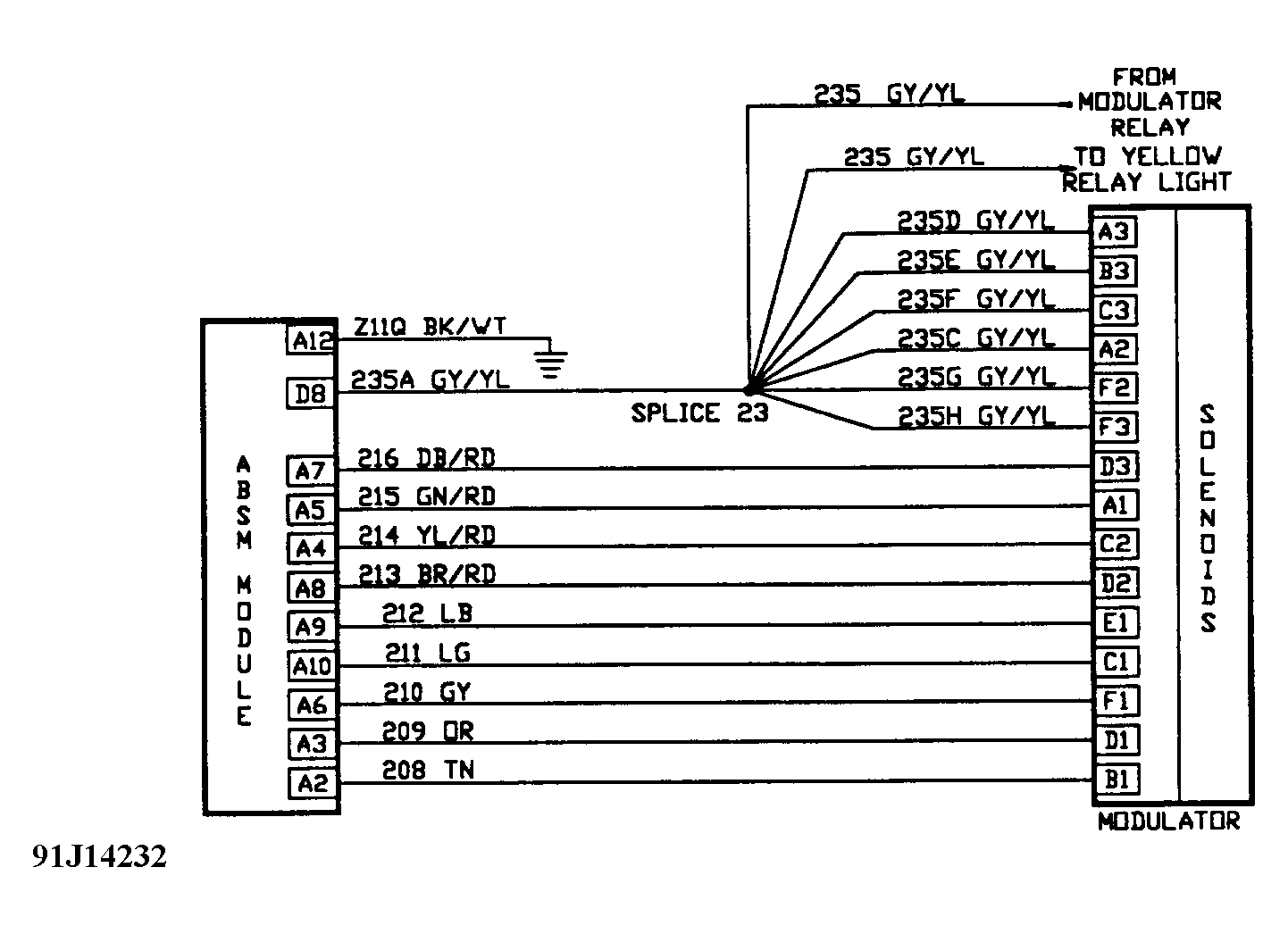

Fig 1: Test 10A - Fault 808 Schematic
G91J14232

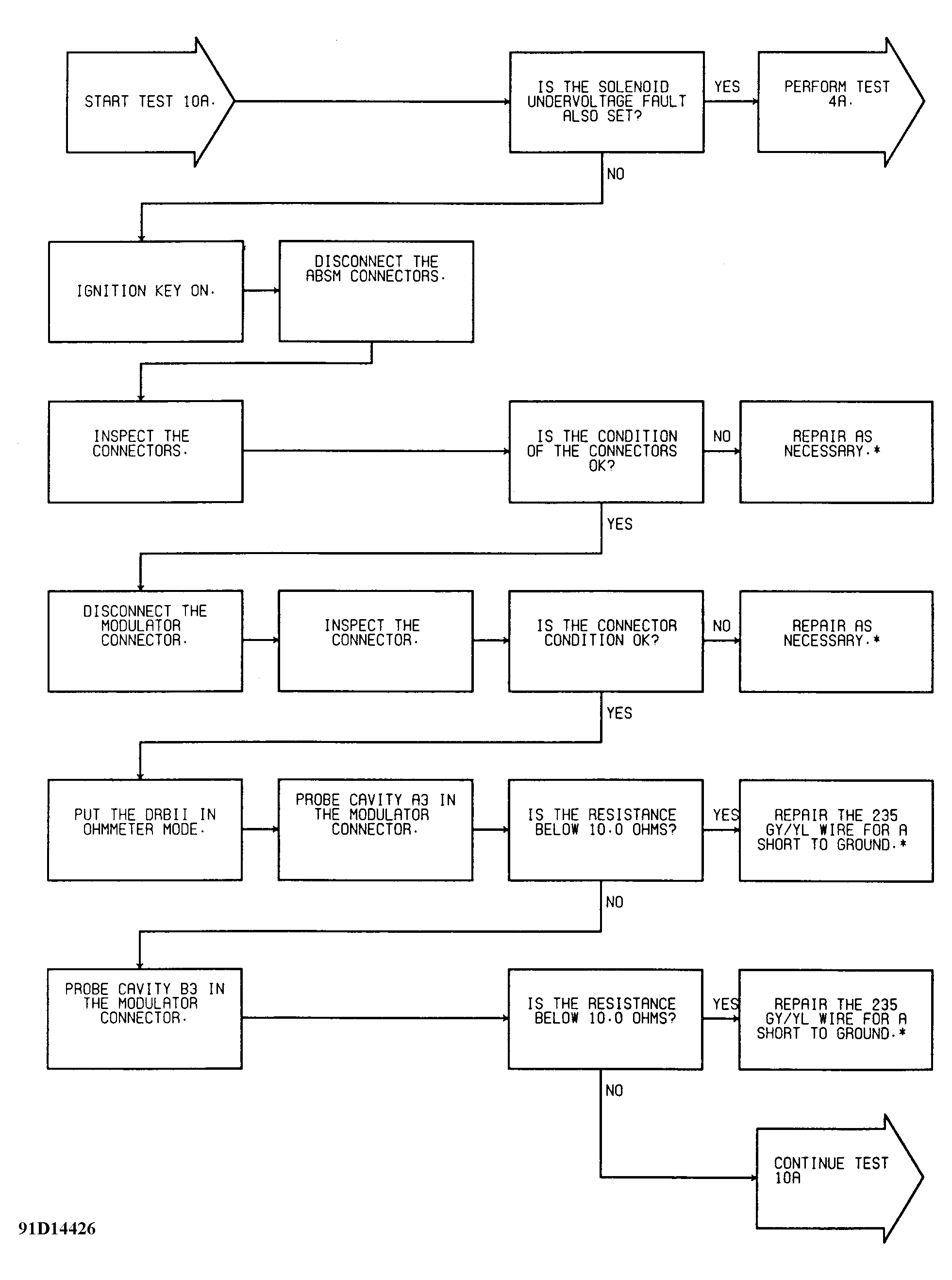

Fig 2: Test 10A - Fault 808 Diagnostic Flowchart (1 Of 5)
G91D14426

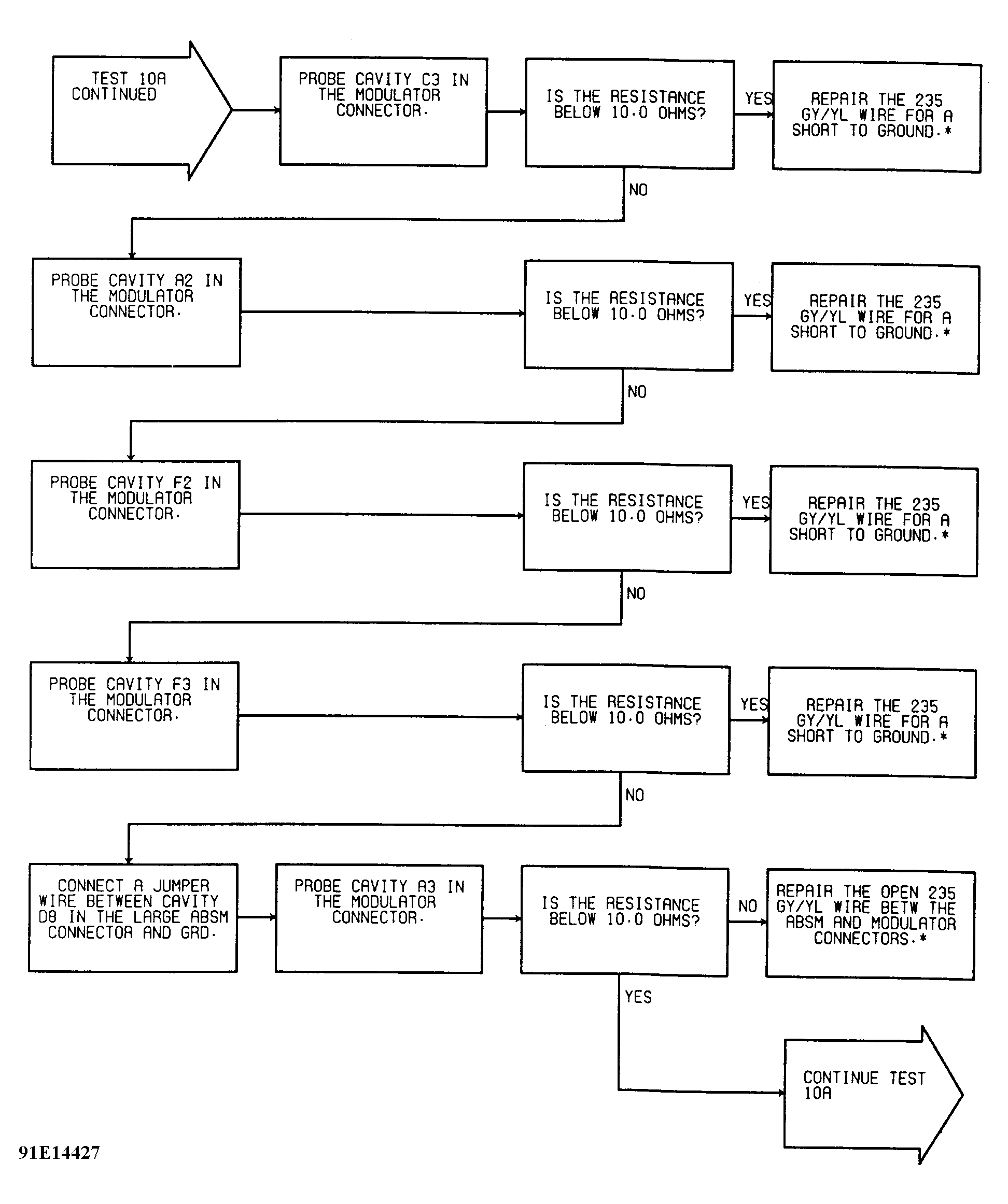

Fig 3: Test 10A - Fault 808 Diagnostic Flowchart (2 Of 5)
G91E14427

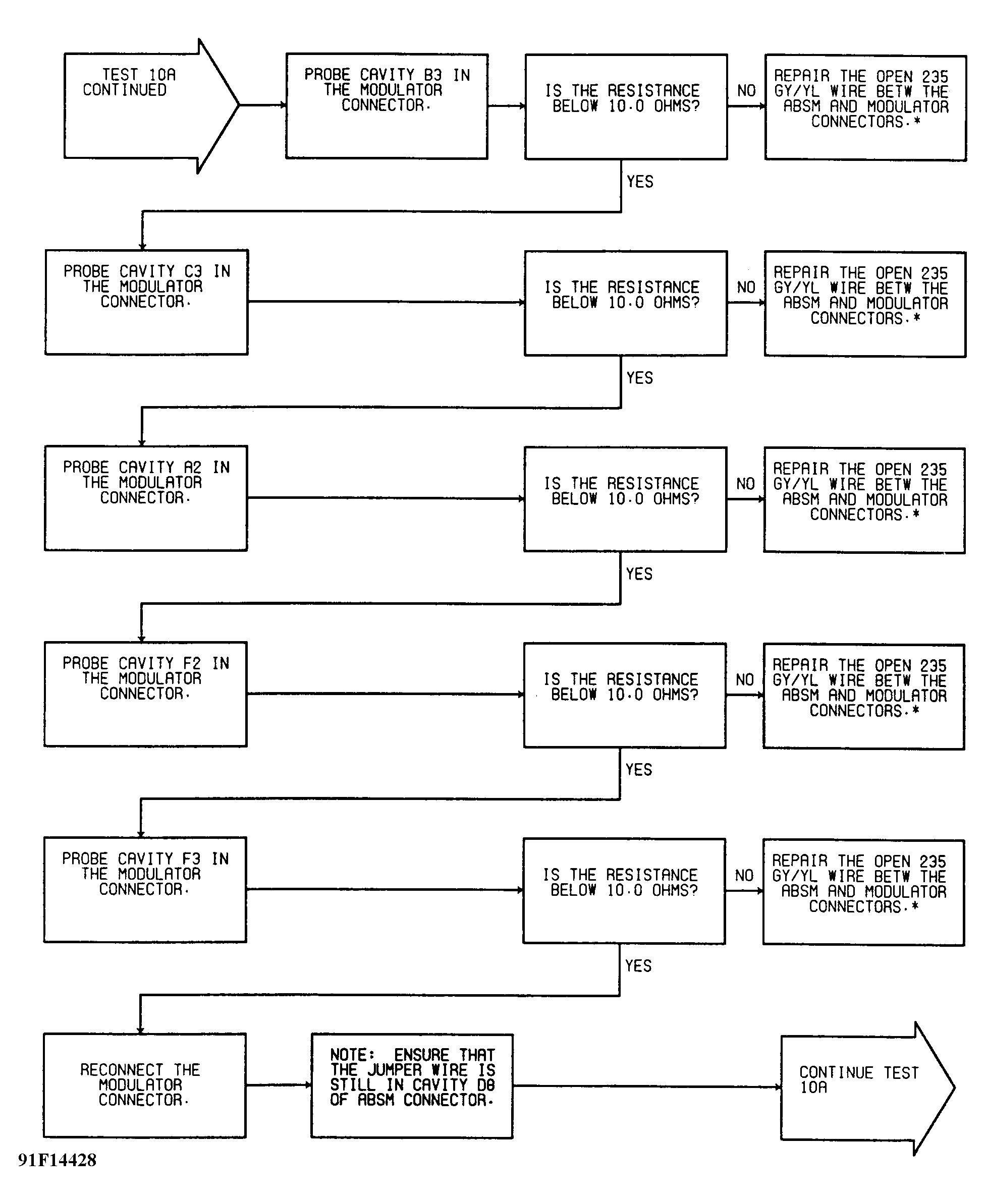

Fig 4: Test 10A - Fault 808 Diagnostic Flowchart (3 Of 5)
G91F14428

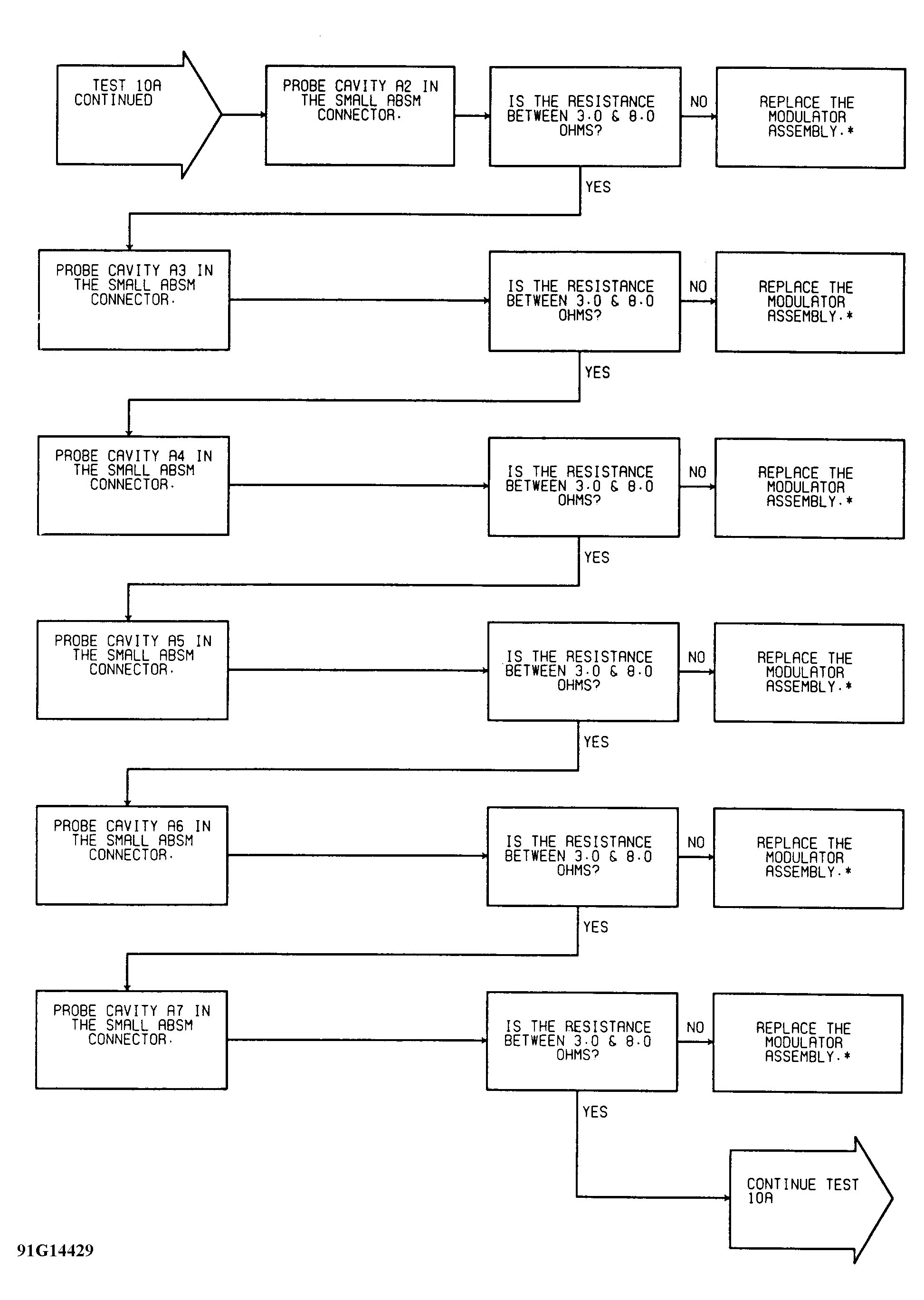

Fig 5: Test 10A - Fault 808 Diagnostic Flowchart (4 Of 5)
G91G14429

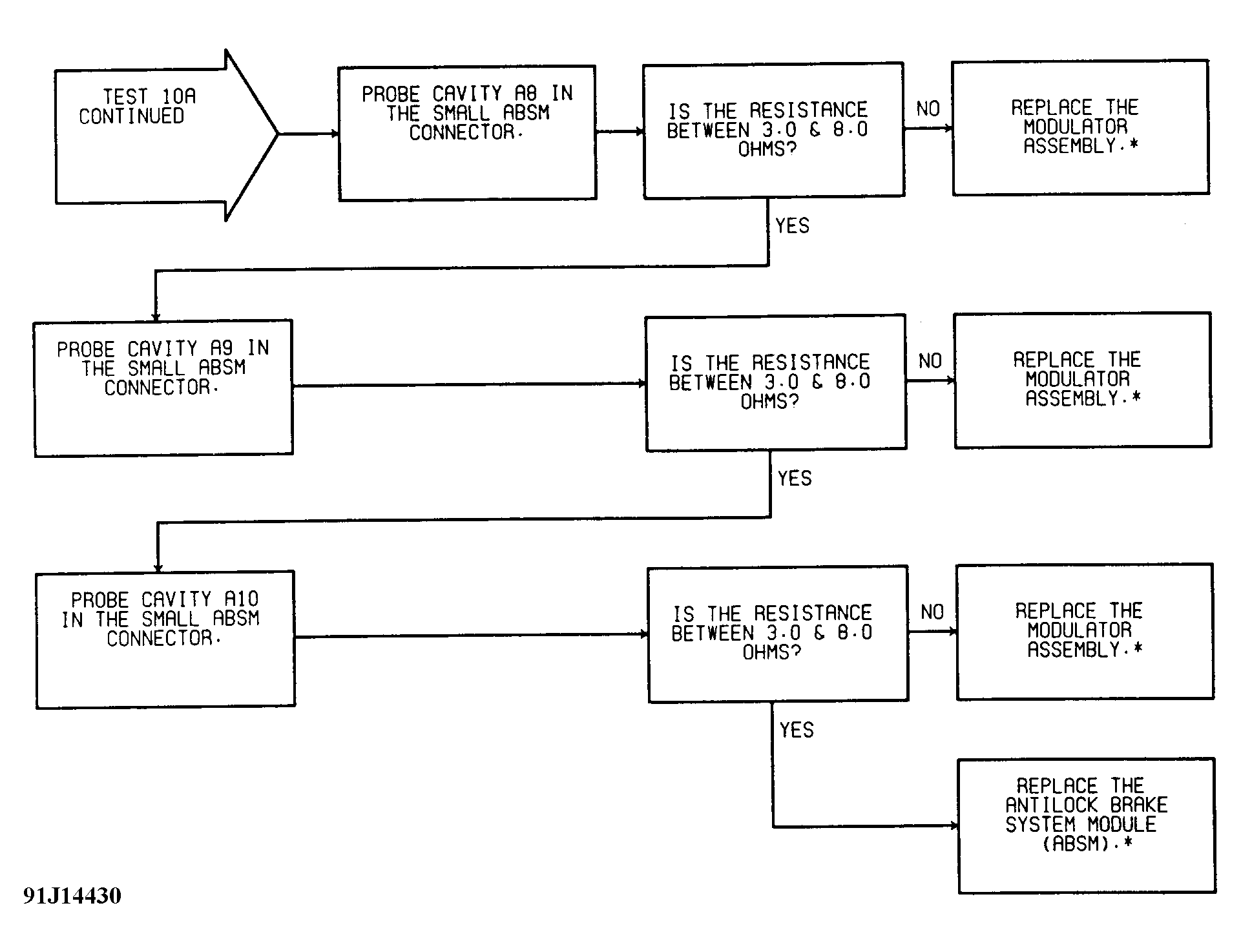

Fig 6: Test 10A - Fault 808 Diagnostic Flowchart (5 Of 5)
G91J14430

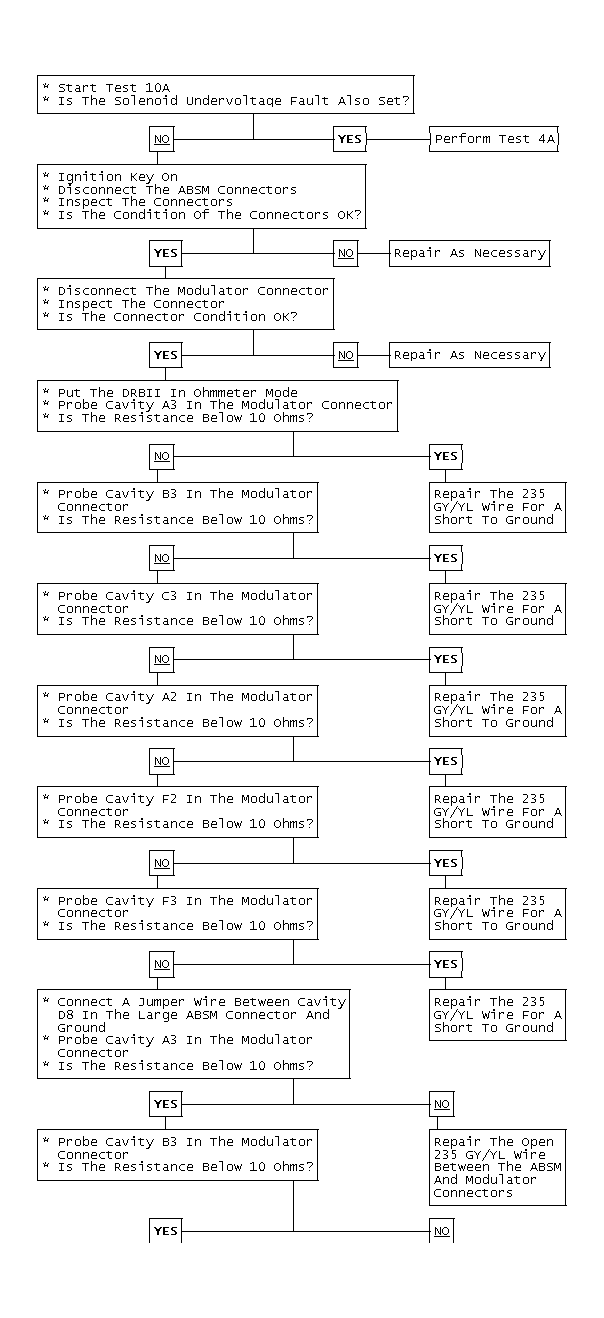

Fig 7: Test 10A - Fault 808 Diagnostic Flowchart
GB0010741
