Code 815 - Right Rear Wheel Speed Sensor Fault

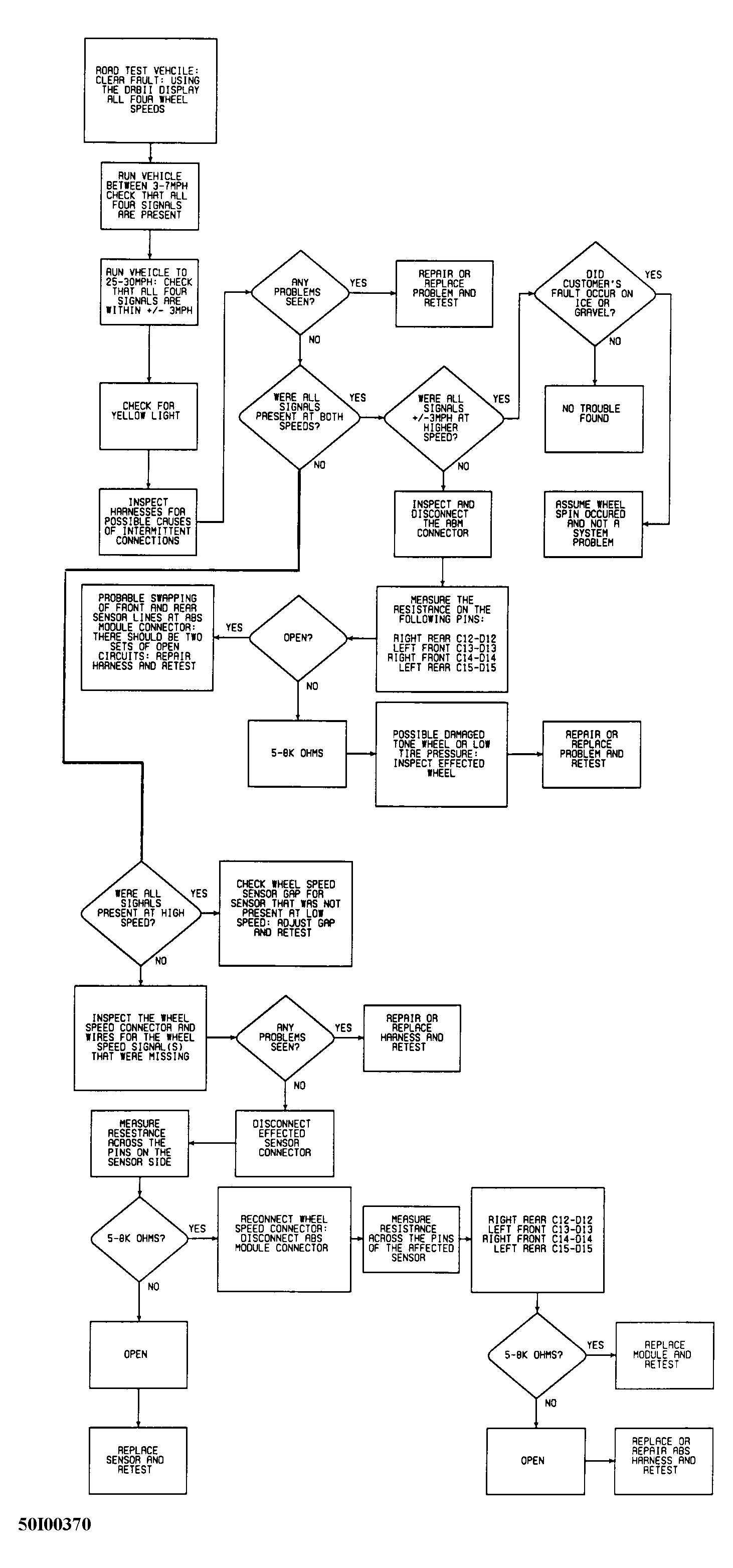

Fig 1: Code 815: Right Rear Wheel Speed Sensor Fault

G50I00370

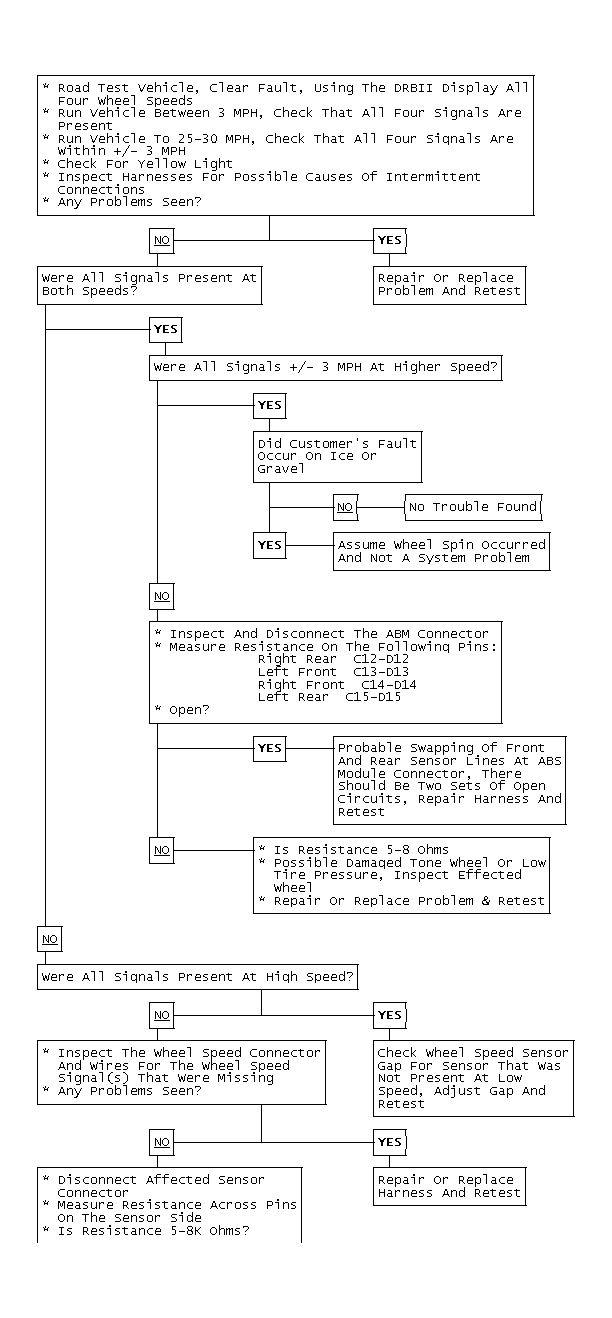

Fig 2: Code 815: Right Rear Wheel Speed Sensor Fault

GB0010700
