Fault 1205: Injector No. 3 Shorted To Ground

Fig 1: Fault 1205: Circuit Diagram No. 3 Injector Shorted to Ground

G90F17835

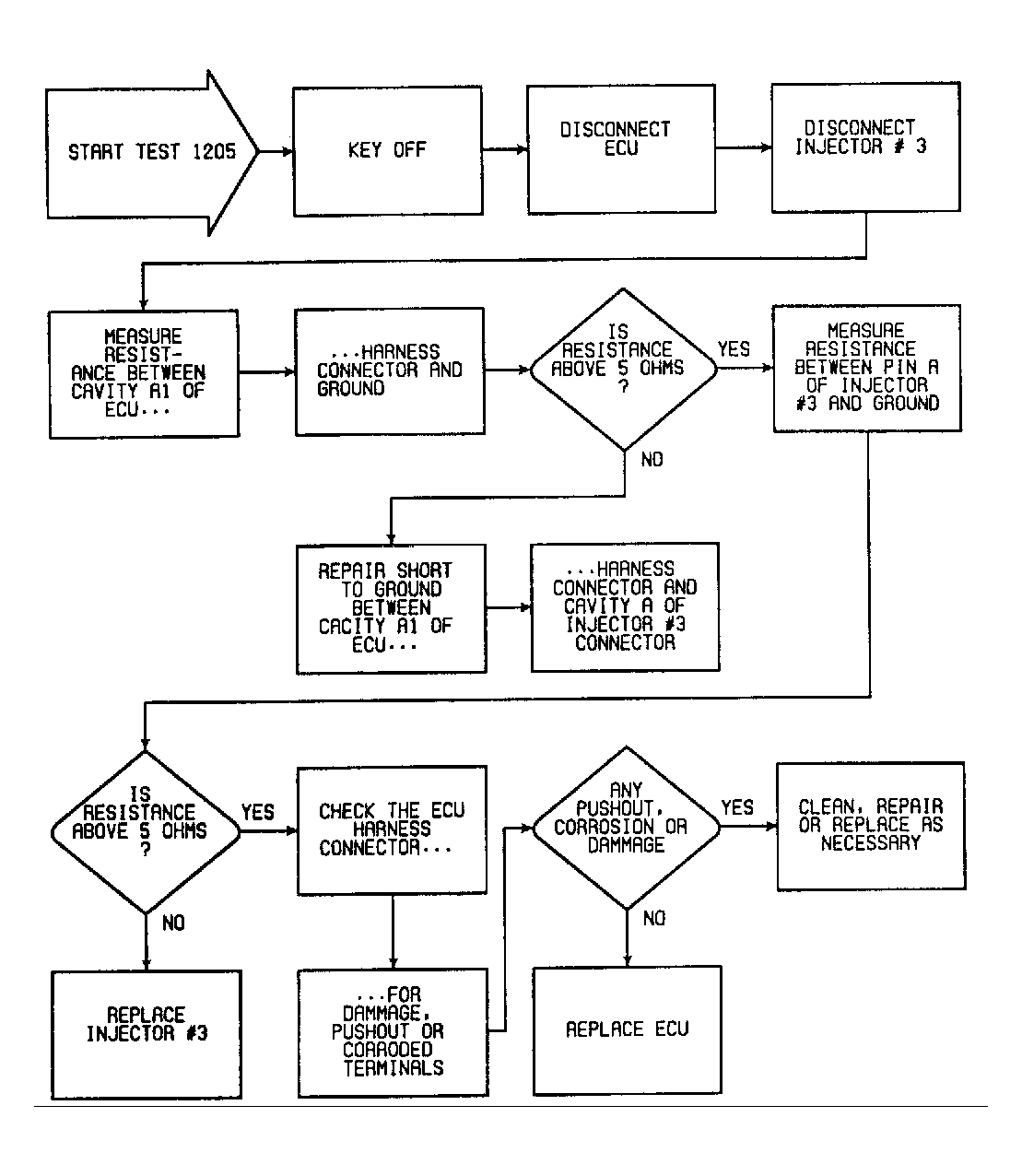

Fig 2: Fault 1205: Flow Chart No. 3 Injector Shorted to Ground

G90J17912
