Fault 1204: Injector No. 2 Shorted To Ground

Fig 1: Fault 1204: Circuit Diagram No. 2 Injector Shorted to Ground

G90F17835

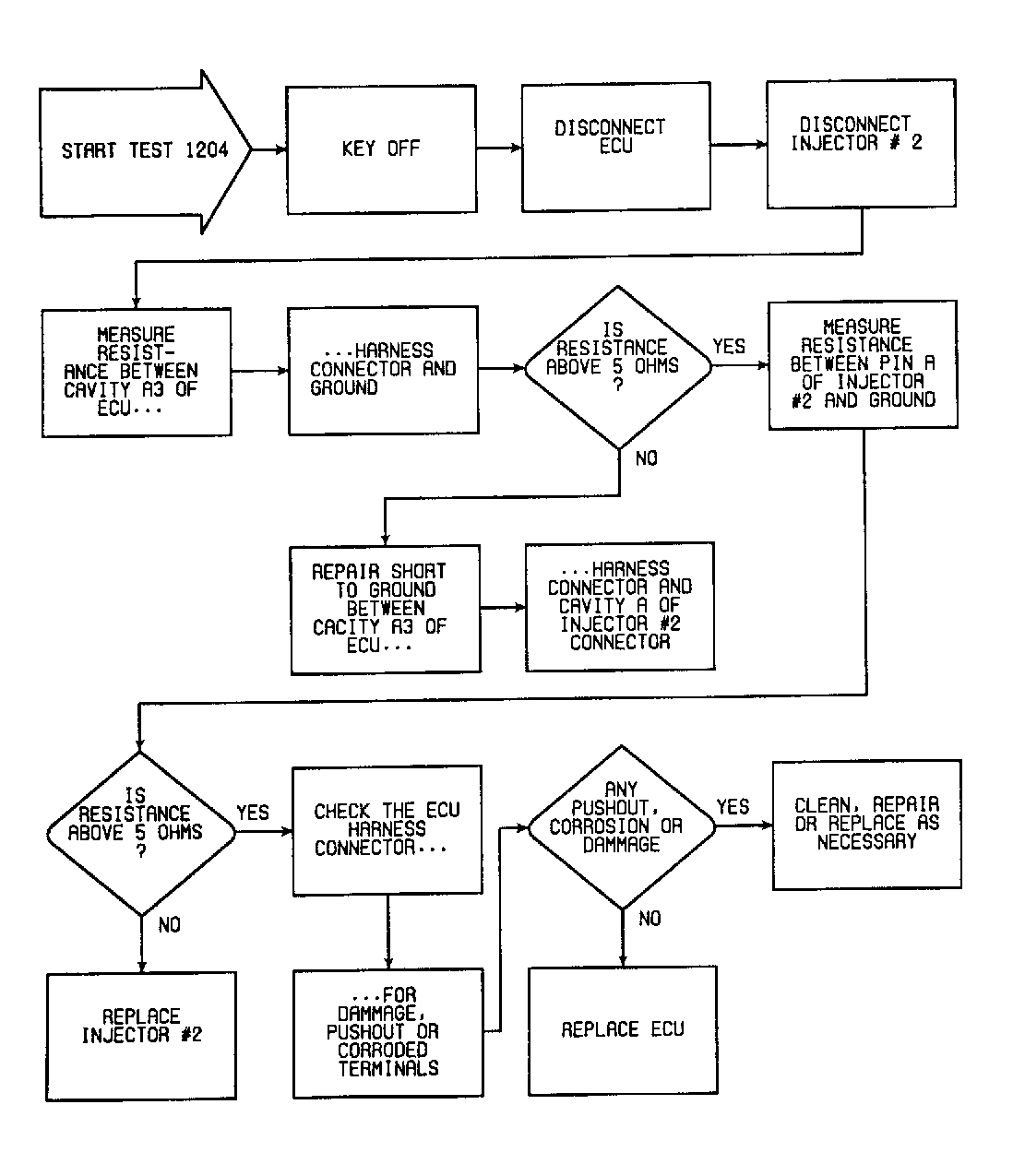

Fig 2: Fault 1204: Flow Chart No. 2 Injector Shorted to Ground

G90I17911
