Fault 1027: Ecu Sees Wide Open Throttle

Fig 1: Fault 1027: Circuit Diagram ECU Sees Wide Open Throttle

G90F17819

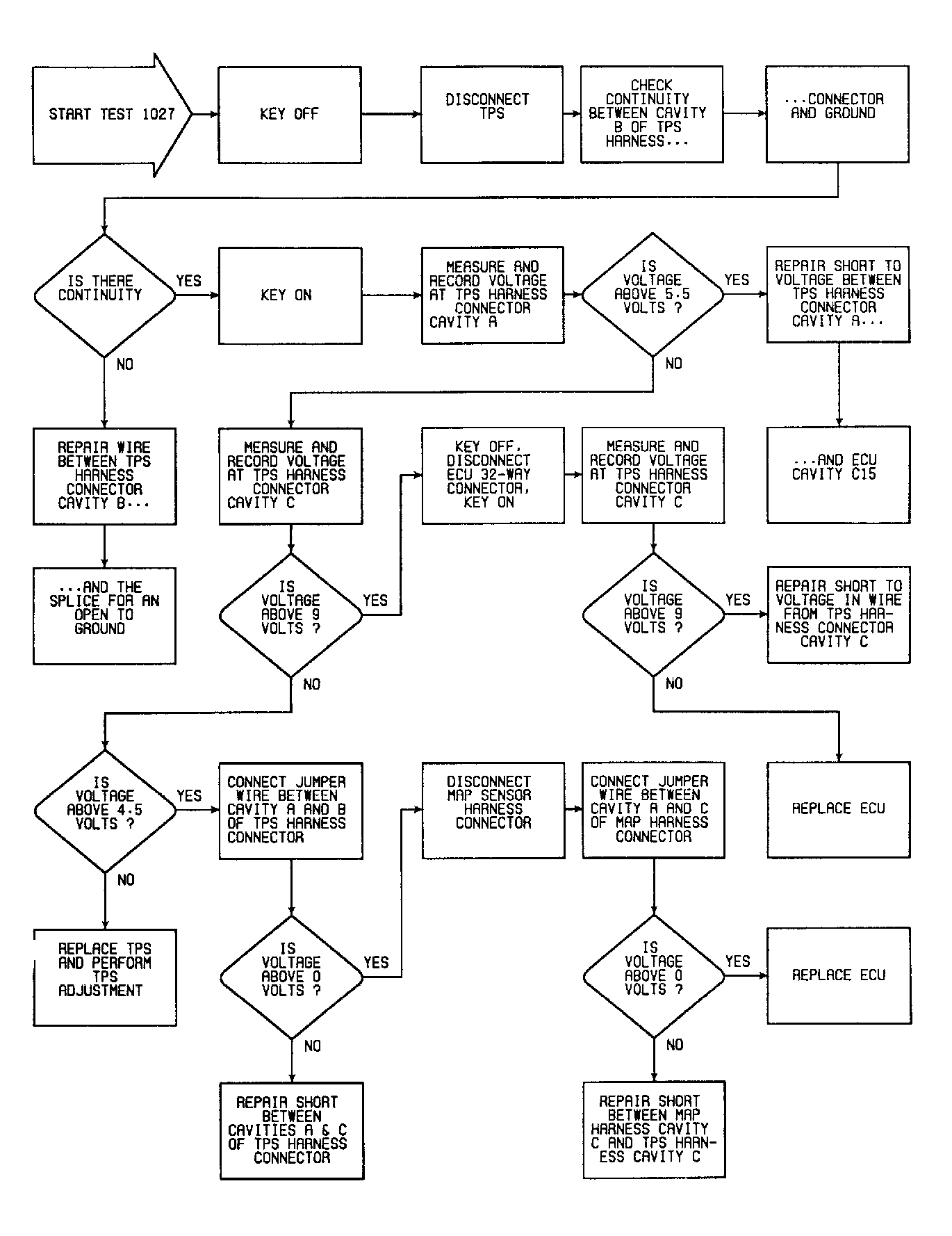

Fig 2: Fault 1027: Flow Chart ECU Sees Wide Open Throttle

G90D17841
