Wiring Diagrams

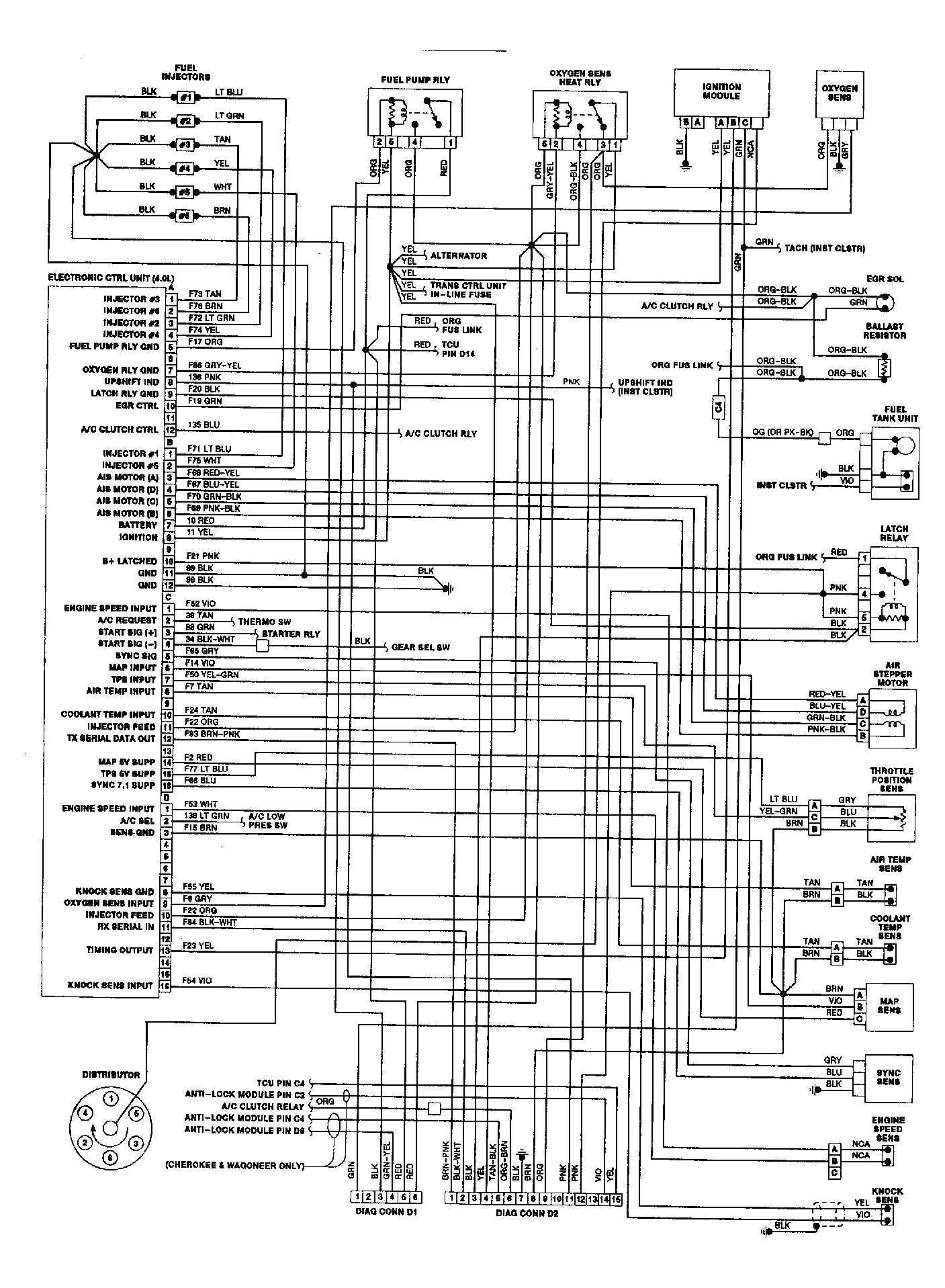

Fig 1: 4.0L MPFI Fuel Injection Wiring Diagram

G113145

Courtesy of CHRYSLER MOTORS.
