Fault Code 1068 - B+ Power Latch Relay Line High

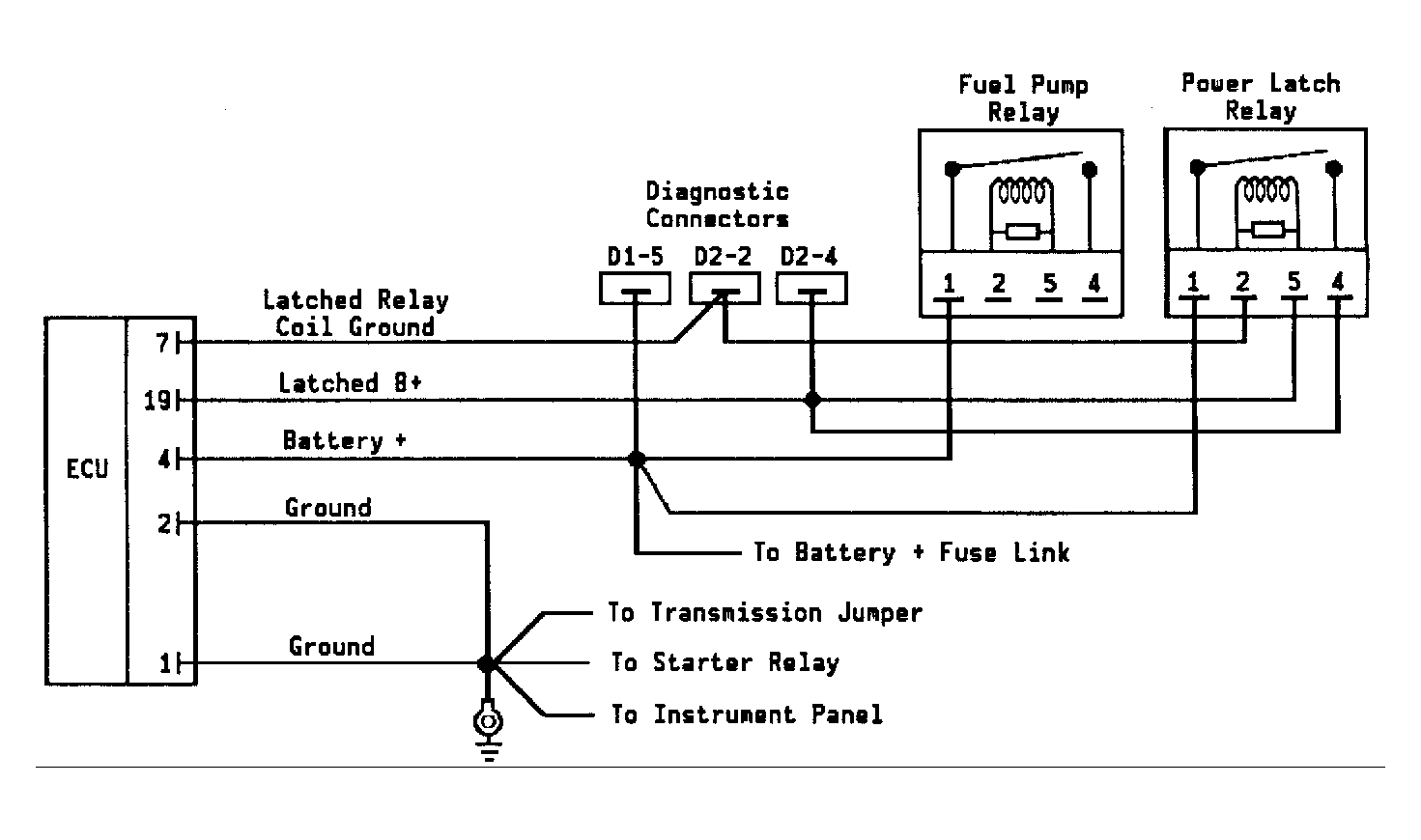

Fig 1: ECU, Diagnostic Connector & Relay Circuits Diagram

Courtesy of CHRYSLER MOTORS.

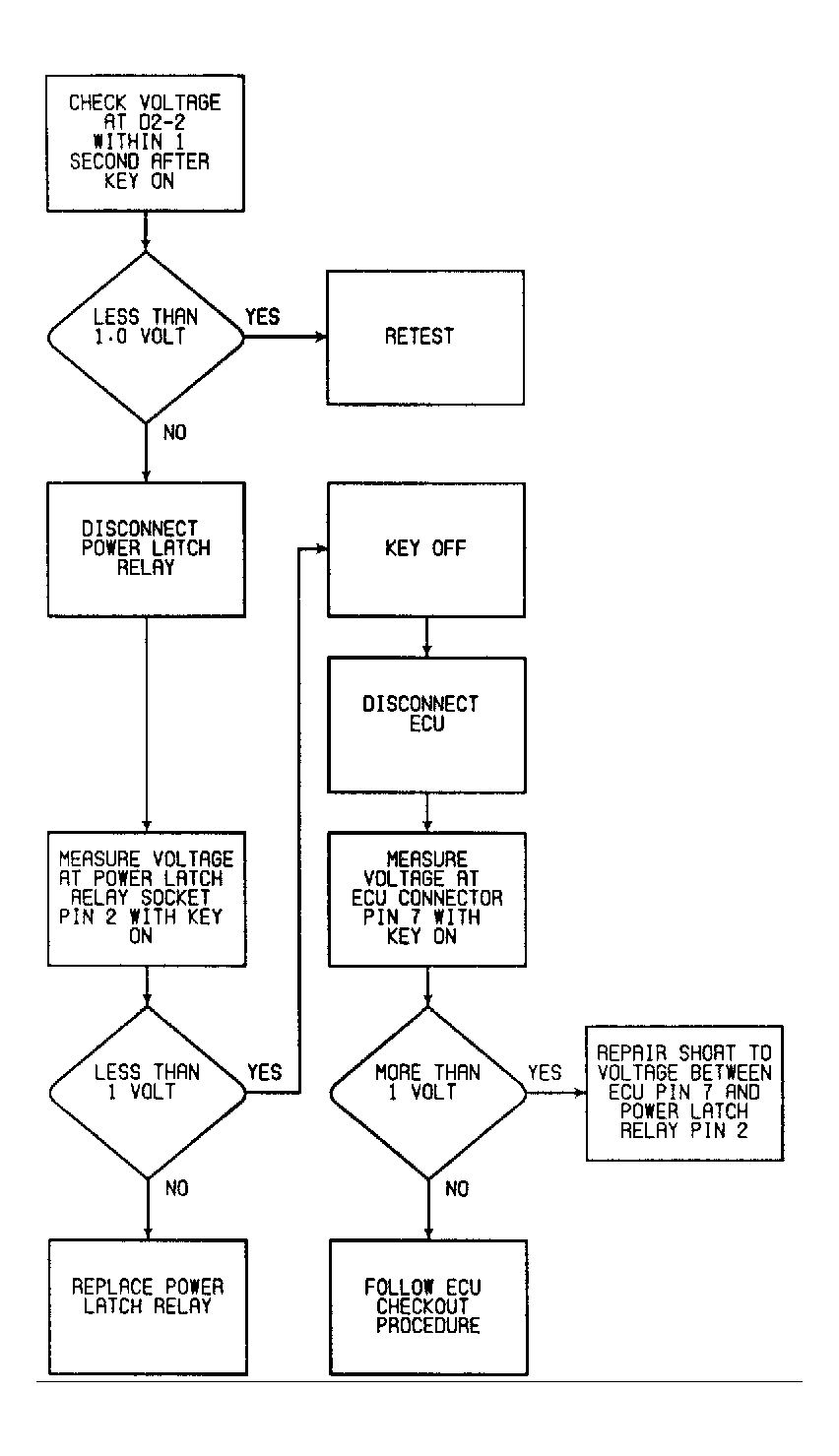

Fig 2: Testing For Fault Code 1068 - B+ Power Latch Relay Line High

Courtesy of CHRYSLER MOTORS.

Fig 3: MAP Sensor & Ignition Module Circuits Diagram

Courtesy of CHRYSLER MOTORS.
