Fault Code 1001 - Ignition Line High

Fig 1: Ignition System Circuit Diagram

G120924

Courtesy of CHRYSLER MOTORS.

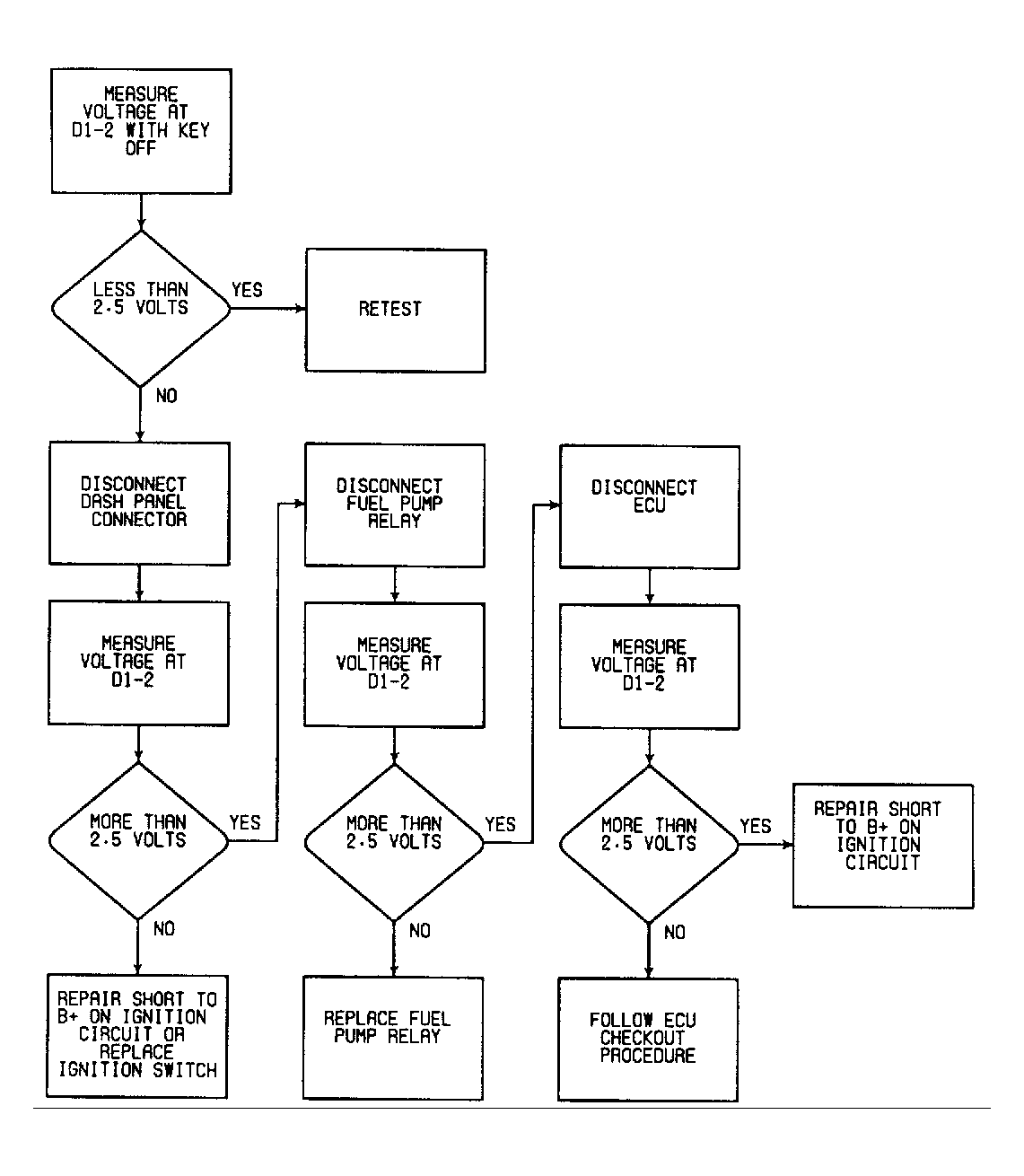

Fig 2: Testing For Fault Code 1001 - Ignition Line High

G120926

Courtesy of CHRYSLER MOTORS.
