Fault Code 1000 - Ignition Line Low

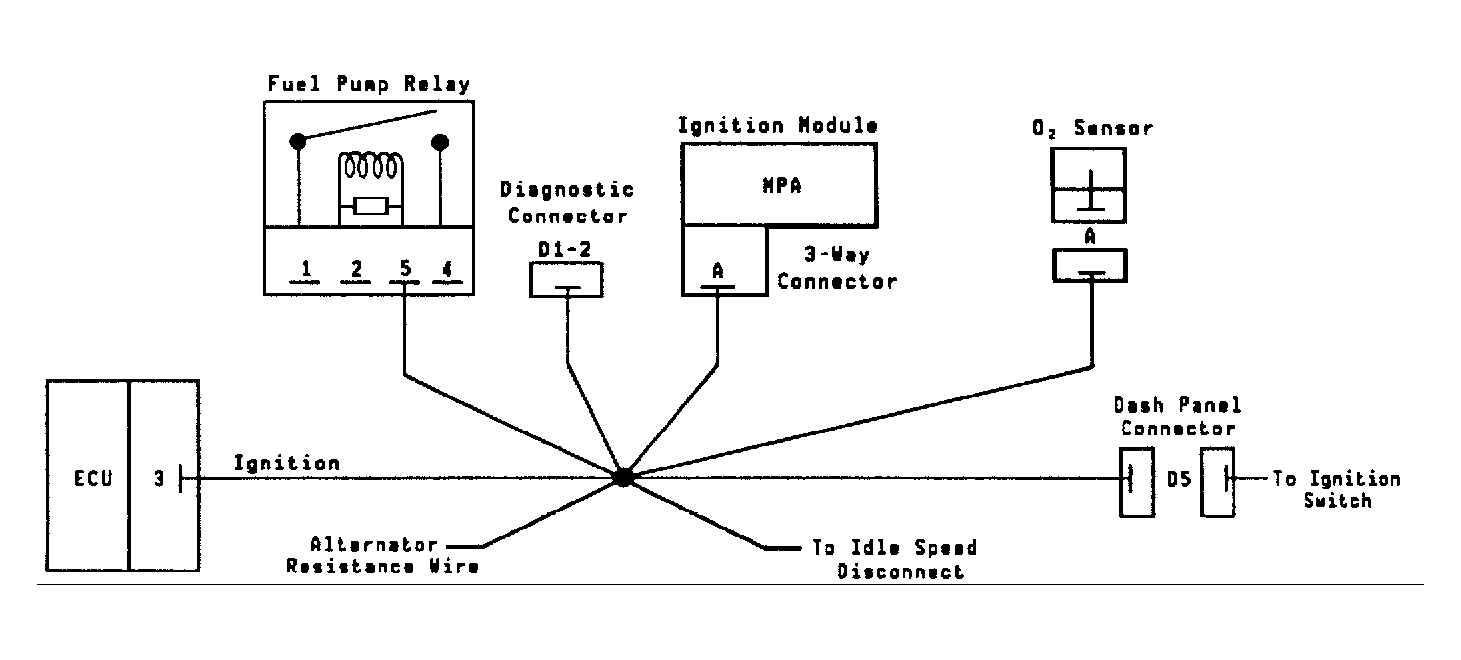

Fig 1: Ignition System Circuit Diagram

G120924

Courtesy of CHRYSLER MOTORS.

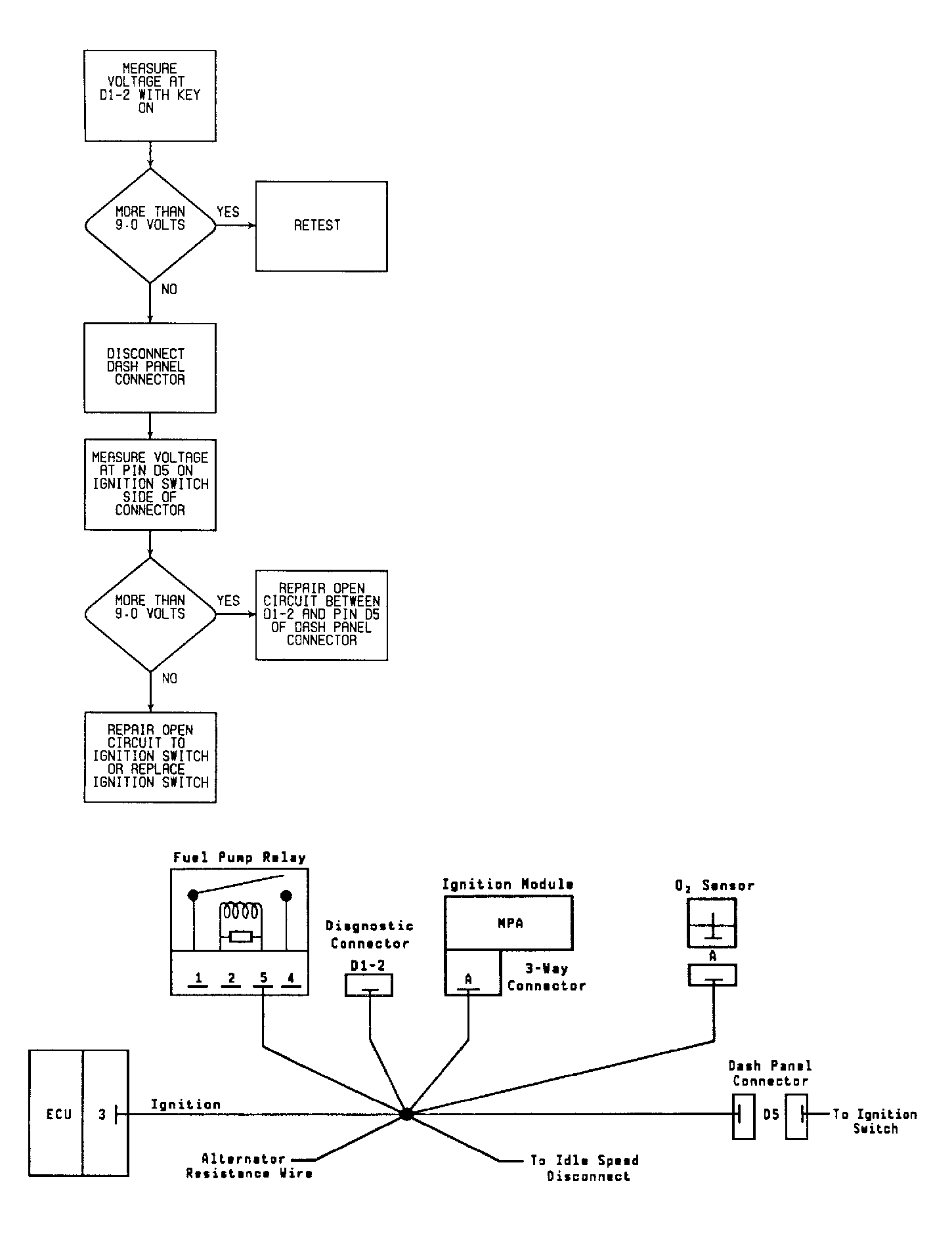

Fig 2: Testing For Fault Code 1000 - Ignition Line Low

G120925

Courtesy of CHRYSLER MOTORS.
