Fault Code 1009 - Power Steering Line High

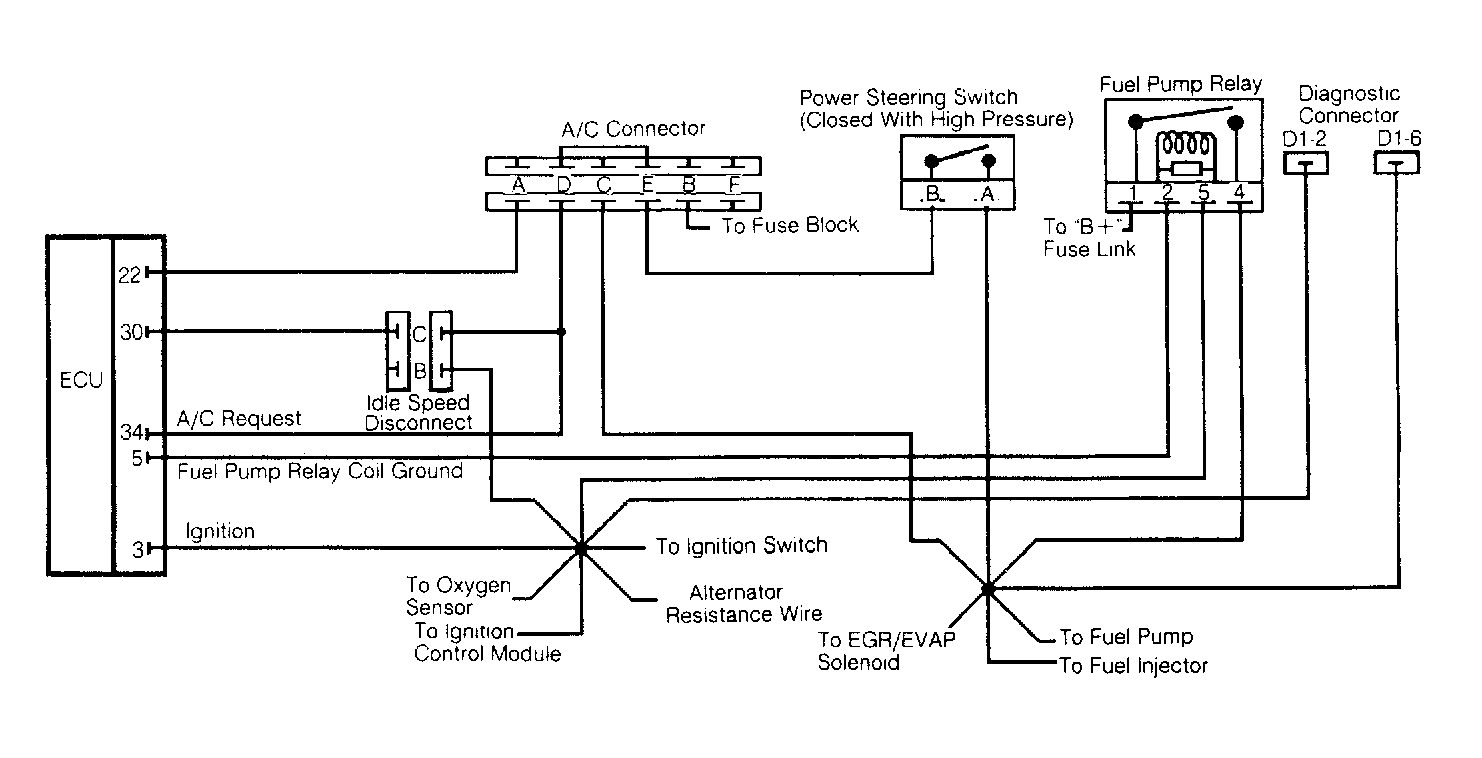

Fig 1: Power Steering System Circuit Diagram

Courtesy of CHRYSLER MOTORS.

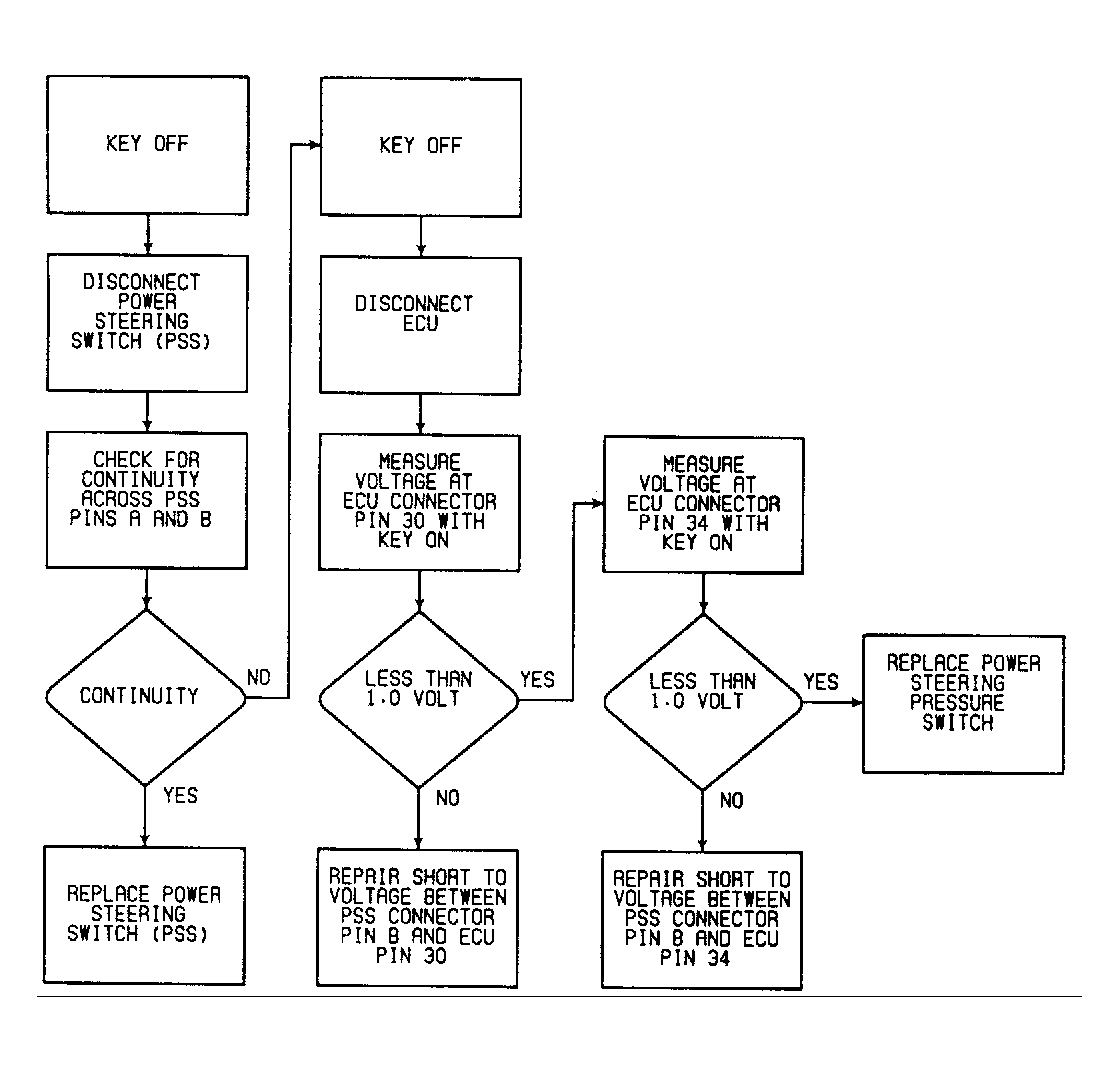

Fig 2: Testing For Fault Code 1009 - Power Steering Line High

Courtesy of CHRYSLER MOTORS.
