Fuel Injection Ecu Connector

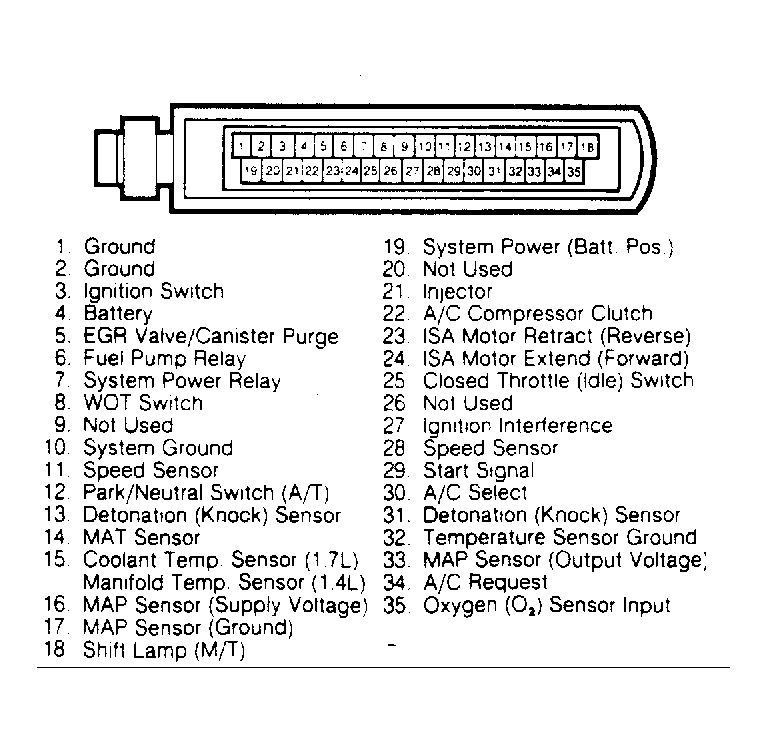

Fig 1: Jeep/Renix Fuel Injection ECU Connector

G11456

Courtesy of AMERICAN MOTORS/JEEP CORP.
