Mike's Workshop Manuals
: Service manuals for every vehicle
Home
>>
Jeep
>>
1986
>>
Cherokee Base, 2D Utility, 2.1 B, RWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
2.8L Feedback Carburetor System
>>
Diagnosis & Testing
>>
Trouble Code 23
Trouble Code 23

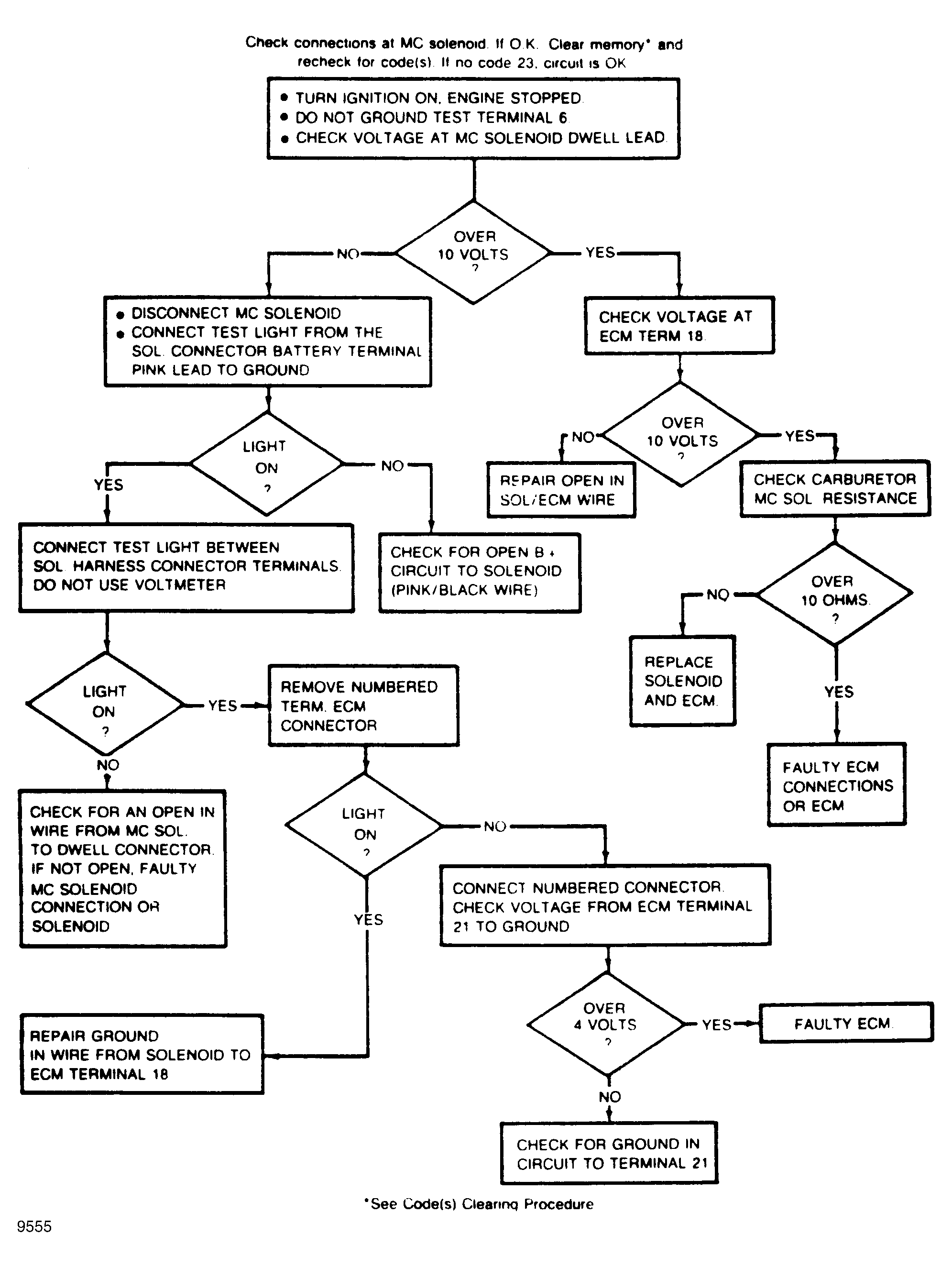

Fig 1: Trouble Code 23, Open Or Grounded M/C Solenoid
