Test No. 6 - Downstream Solenoid

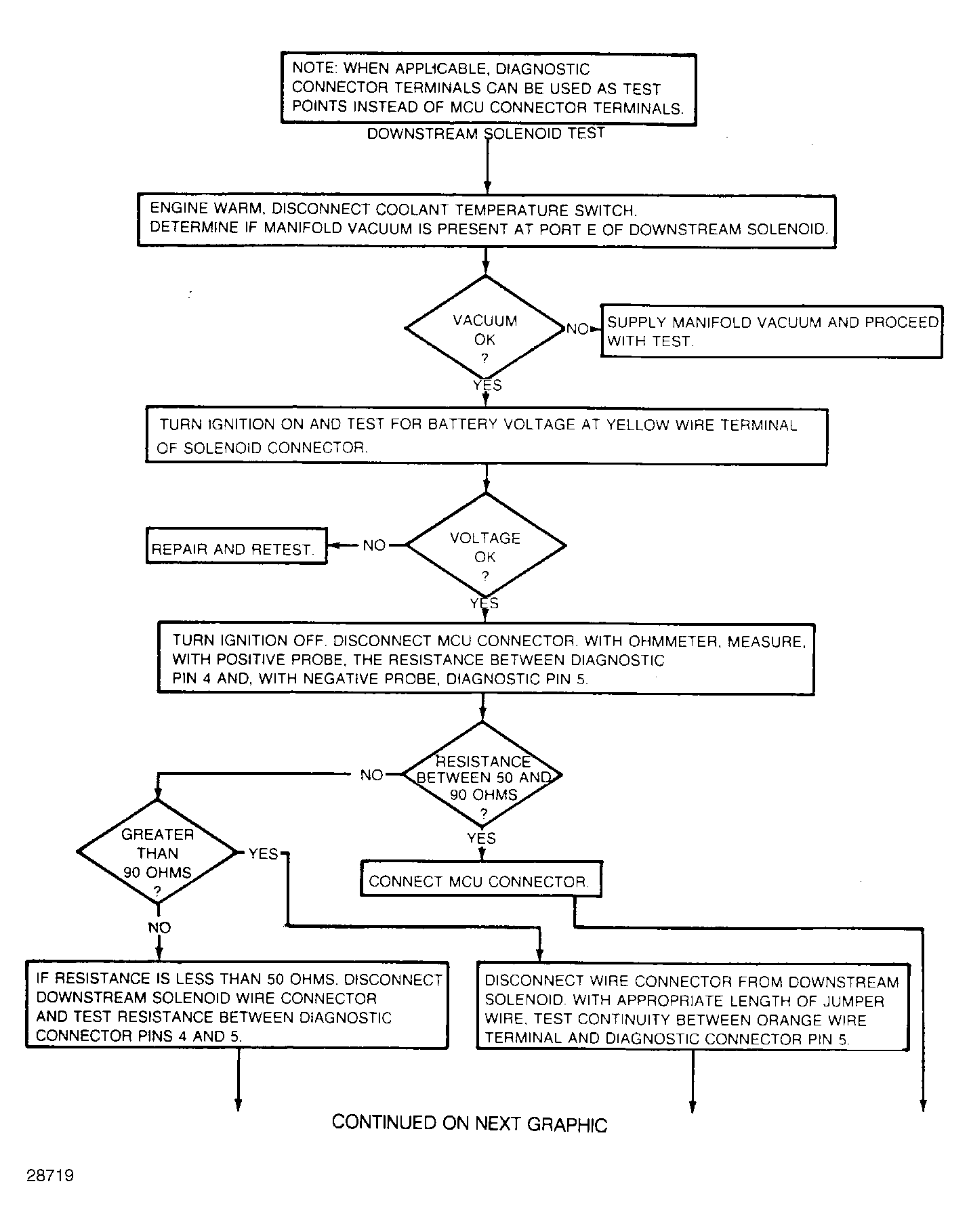

Fig 1: Test No. 5, "Downstream" Solenoid Test (1 of 2)

G28719

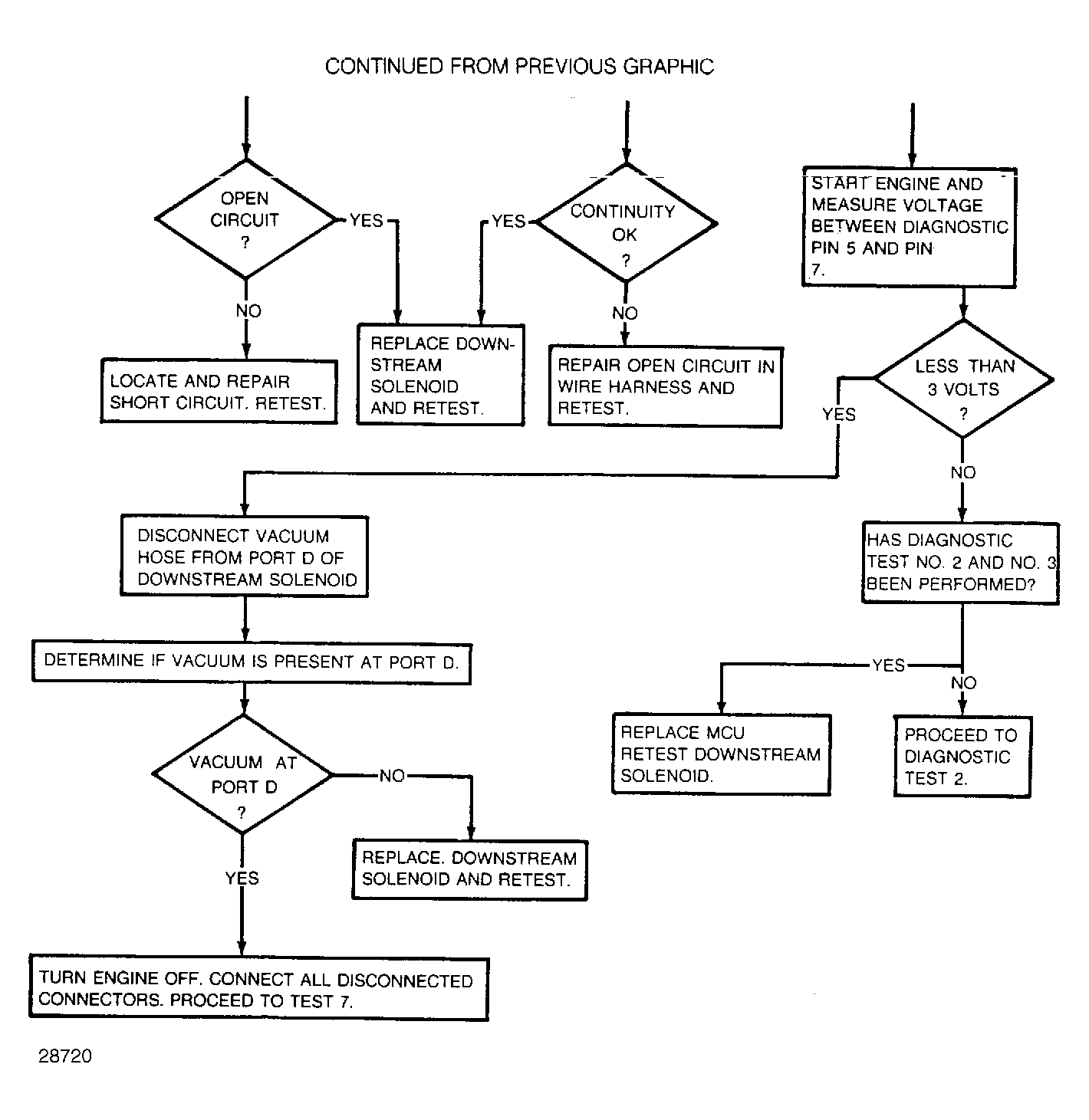

Fig 2: Test No. 5, "Downstream" Solenoid Test (2 of 2)

G28720
