Test No. 10 - Sol-Vac Switching

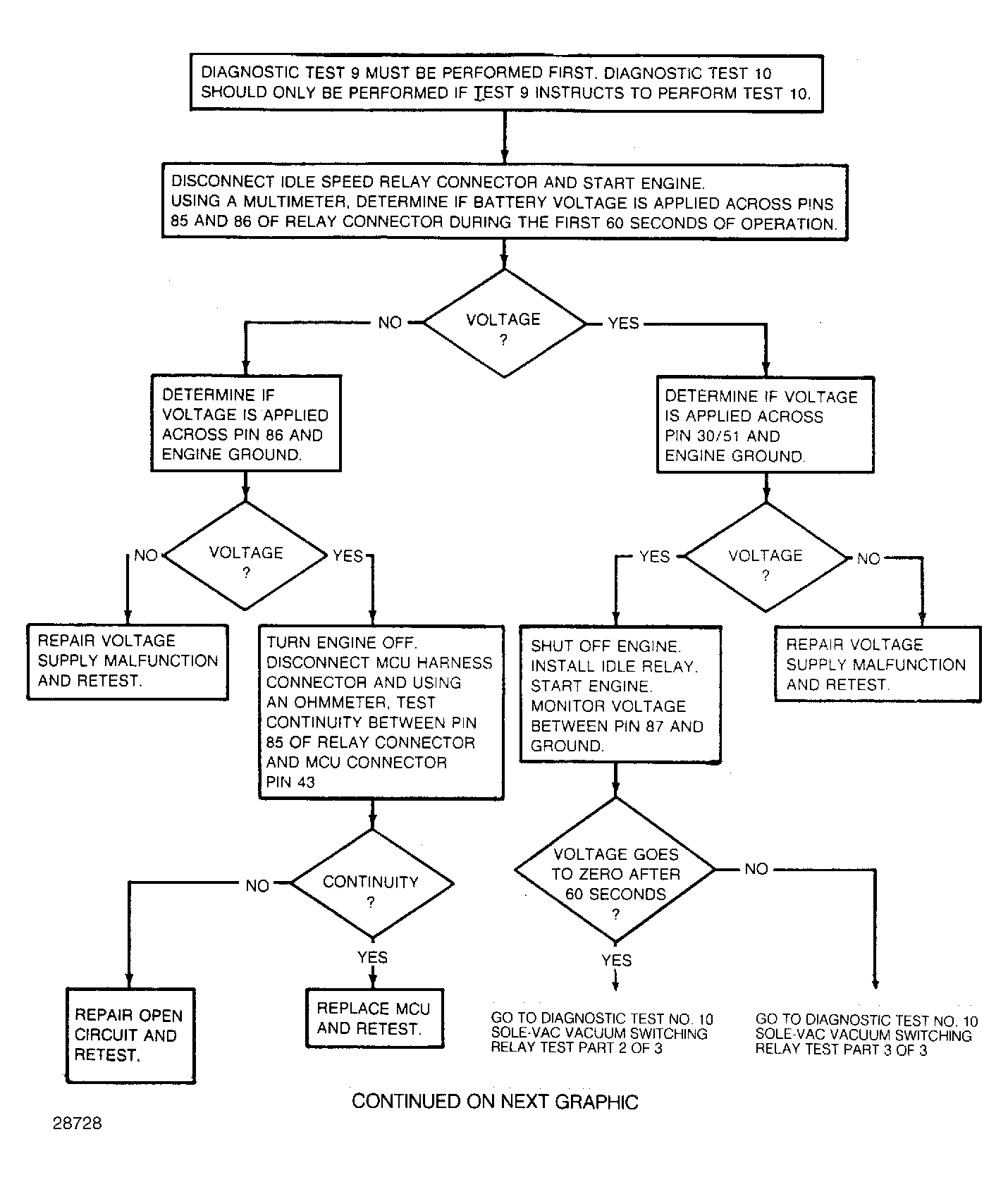

Fig 1: Test No. 10, Sole-Vac Vacuum Switching Test (1 of 3)
G28728

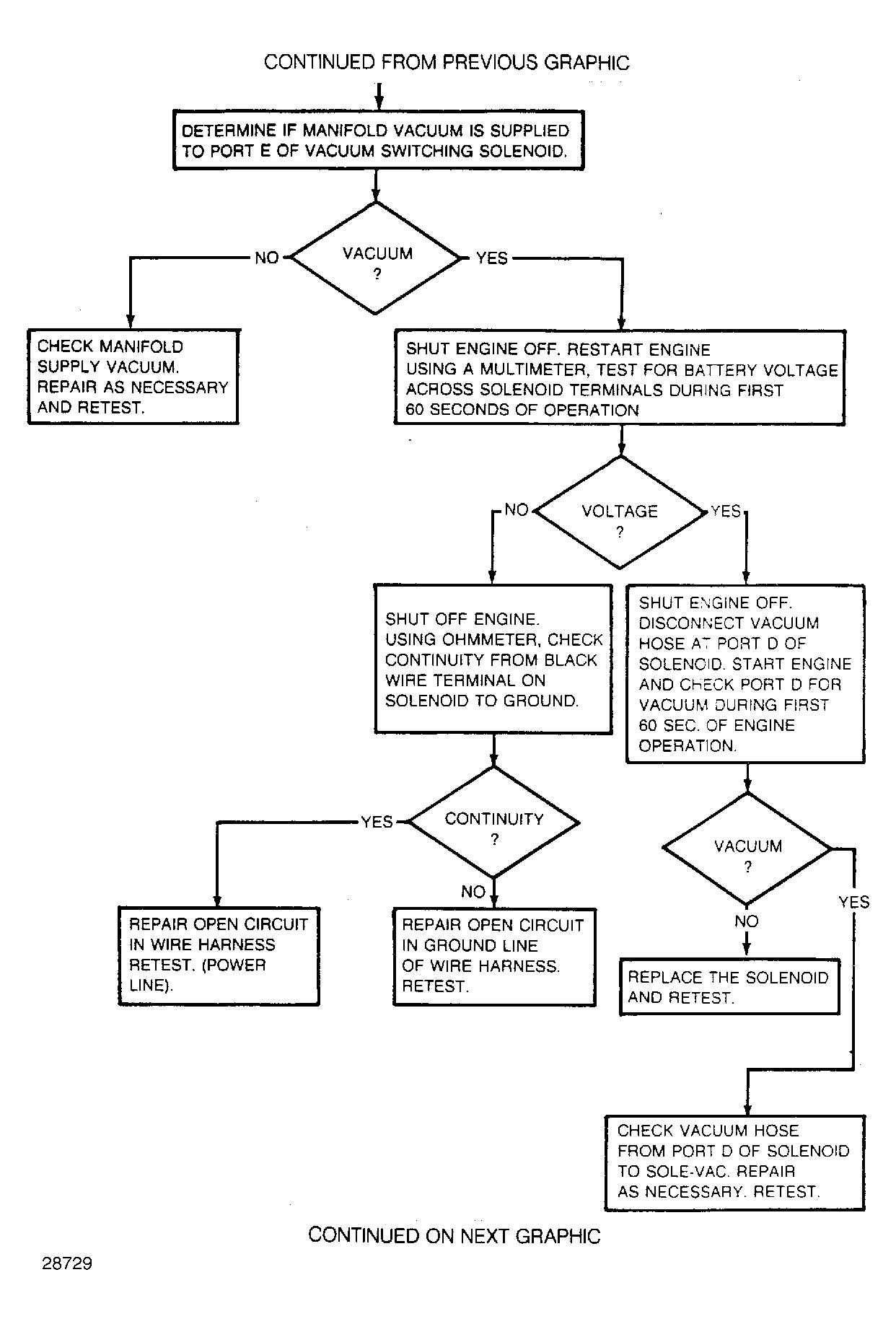

Fig 2: Test No. 10, Sole-Vac Vacuum Switching Test (2 of 3)
G28729

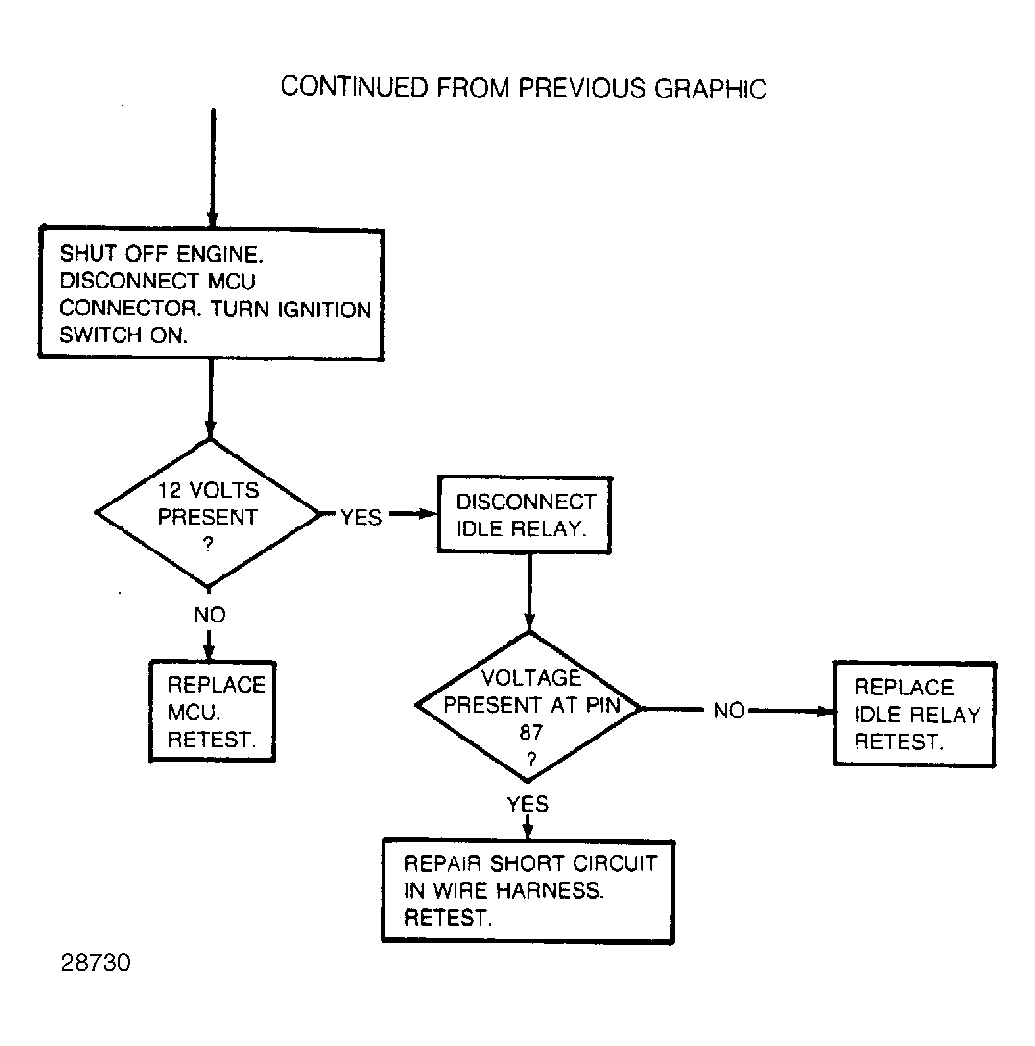

Fig 3: Test No. 10, Sole-Vac Vacuum Switching Test (3 of 3)
G28730
