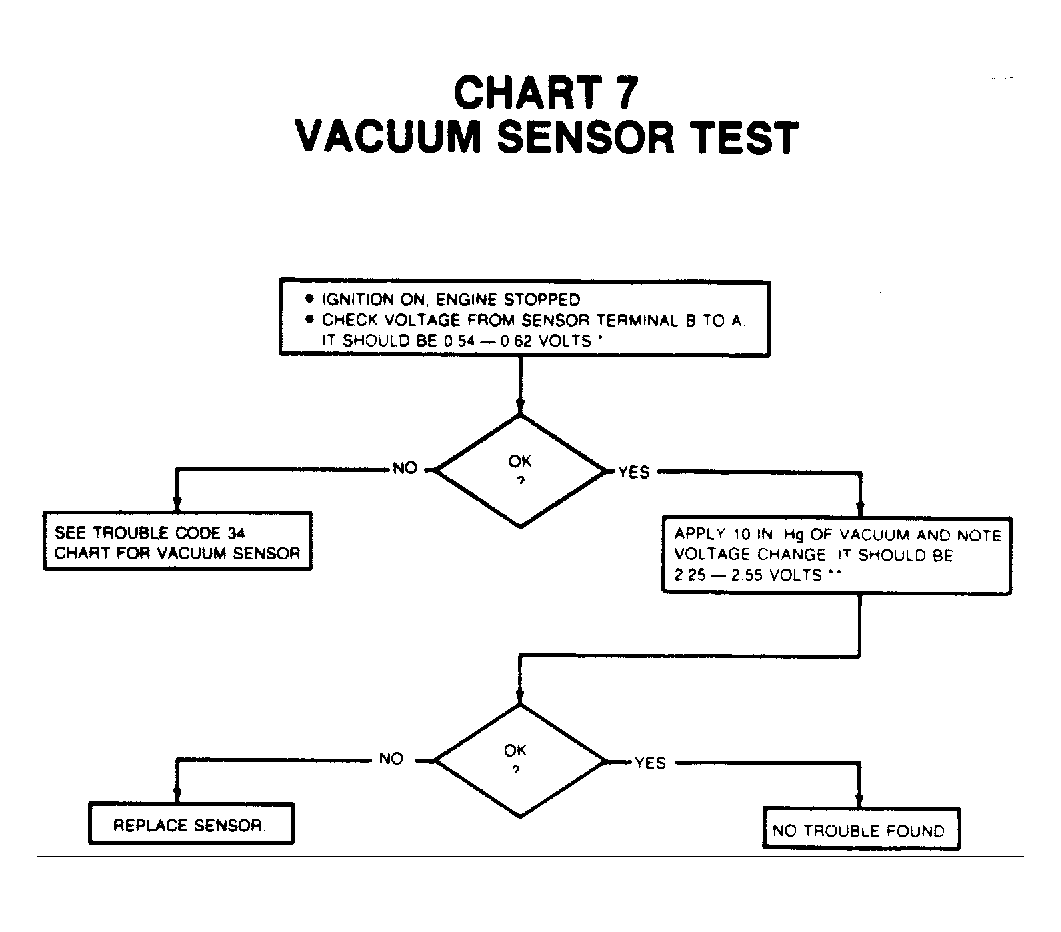

Home >> Jeep >> 1984 >> Cherokee Base, 2D Utility, 2.5 U, AX4 >> Repair and Diagnosis >> Engine Performance >> System >> 2.8L Carburetor CEC System >> Diagnosis & Testing >> Chart 7 - Vacuum Sensor Test
