Test No. 1 - System Operational Test

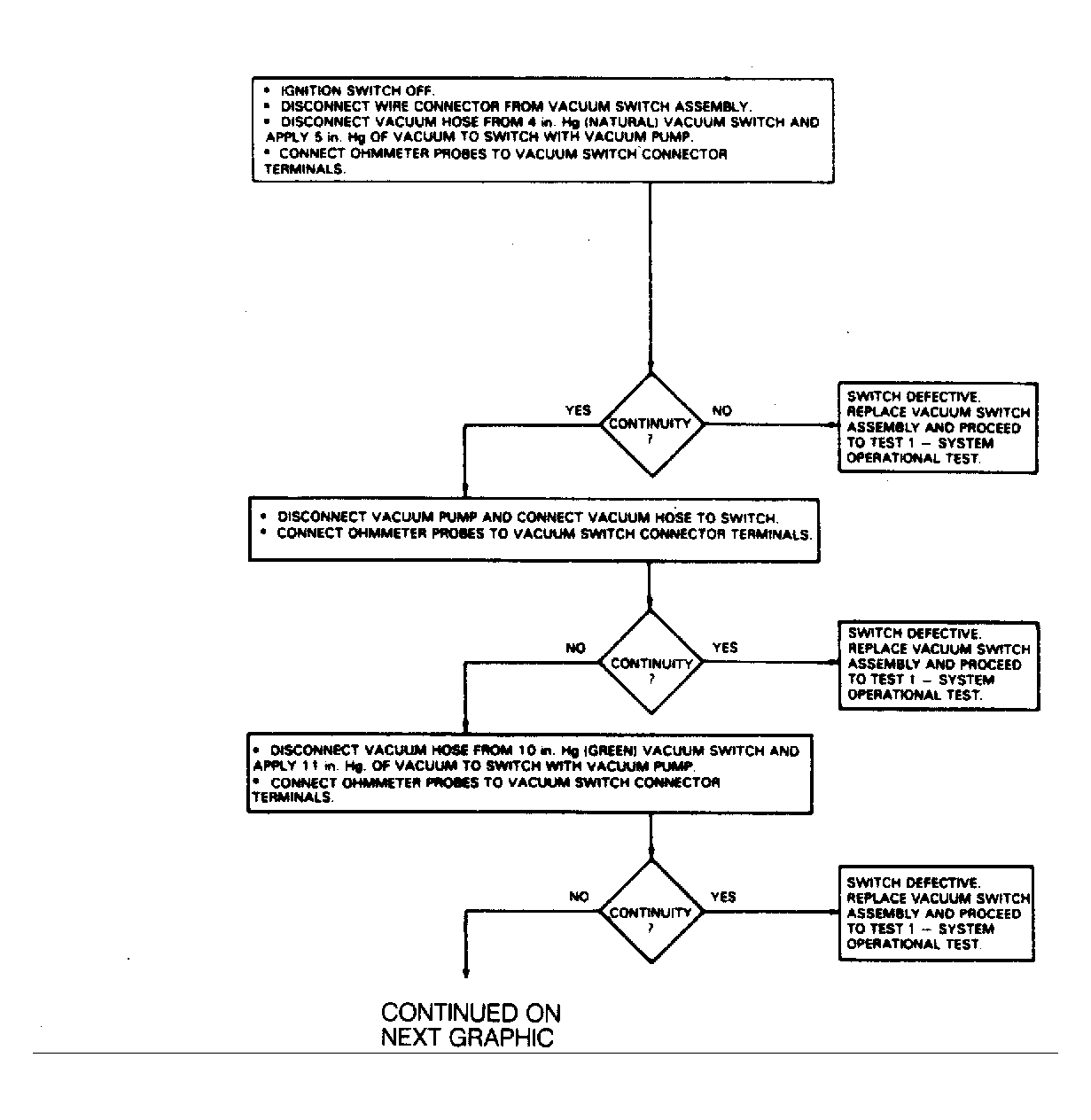

Fig 1: Test No. 1, System Operational Test (1 of 2)

G6807

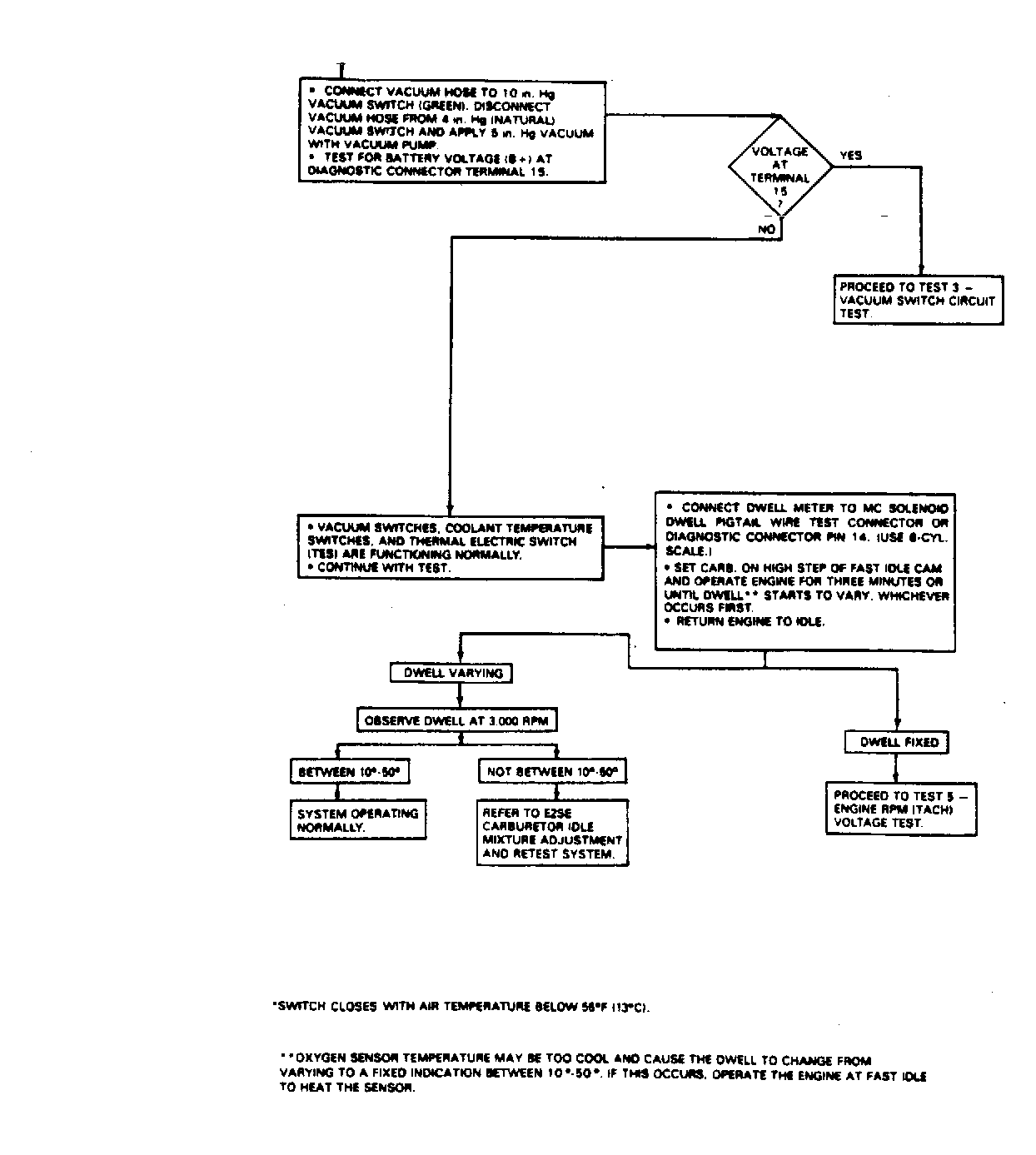

Fig 2: Test No. 1, System Operational Test (2 of 2)

G8531
