Toe Adjustment
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 1987 Dodge Ram Wagon, 1987 Dodge Ram Van, 1986 Dodge Ram Wagon, 1986 Dodge Ram Van, and 1985 Dodge Ram Wagon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
On vehicles equipped with power steering, set wheel toe position with engine running.

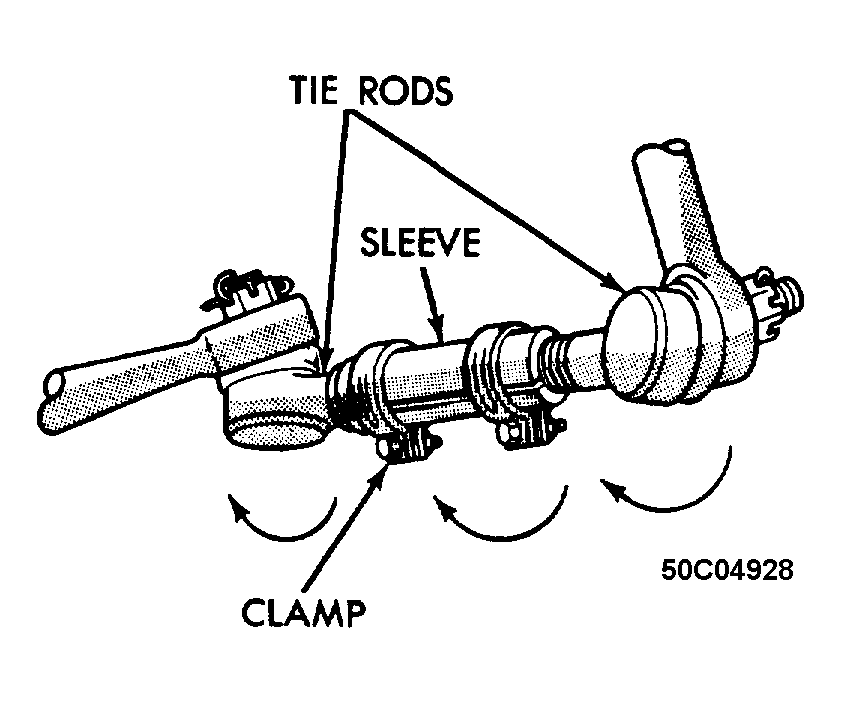

Center steering wheel and hold with steering wheel clamp. Loosen tie rod adjustment sleeve clamp bolts. Rotate adjustment sleeve to align toe to specifications. See WHEEL ALIGNMENT SPECIFICATIONS . Position sleeve clamps on underside of sleeve so that clamp ends are not over sleeve slot. Tighten adjustment sleeve clamp bolts to specification. See TORQUE SPECIFICATIONS . Remove steering wheel clamp.
