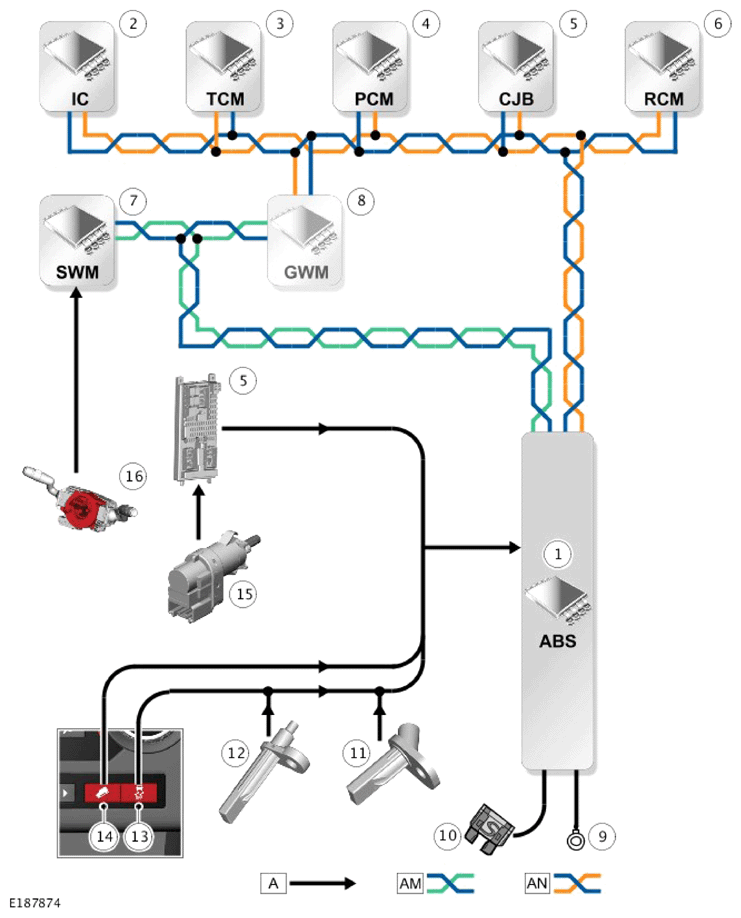

Control Diagram
A = HARDWIRED; AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS; AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Anti-lock Brake System (ABS) control module |
| 2 | Instrument Cluster (IC) |
| 3 | Transmission Control Module (TCM) |
| 4 | Powertrain Control Module (PCM) |
| 5 | Central Junction Box (CJB) |
| 6 | Restraints Control Module (RCM) |
| 7 | Steering Wheel Module (SWM) |
| 8 | Gateway Module (GWM) |
| 9 | Ground |
| 10 | Power supply |
| 11 | Front wheel speed sensor (quantity 2) |
| 12 | Rear wheel speed sensor (quantity 2) |
| 13 | Dynamic Stability Control (DSC) switch |
| 14 | Hill Descent Control (HDC) switch |
| 15 | Brake pedal switch |
| 16 | Steering Angle Sensor Module (SASM) |
