Adaptive Speed Control Module (G1870614): Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Front Bumper Cover (Removal and Installation).

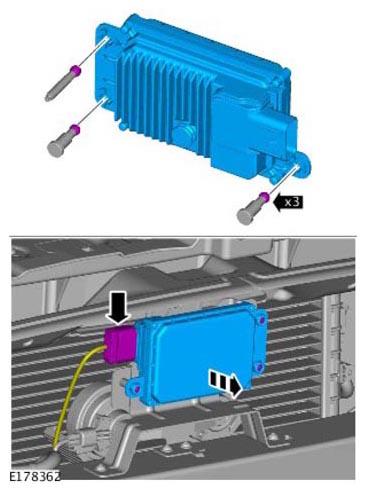

  3. NOTE: Make sure that the sensor is correctly located to the bracket. Audible clicks will be heard to confirm connection.
    G11292796

    Use a suitable tool to release the sensor from the retaining bracket.
