Removal And Installation: Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

All vehicles

  1. Disconnect the battery ground cable.

    Refer to: BATTERY DISCONNECT AND CONNECT .

  2. Refer to: COWL VENT SCREEN .

    Left-hand drive vehicles

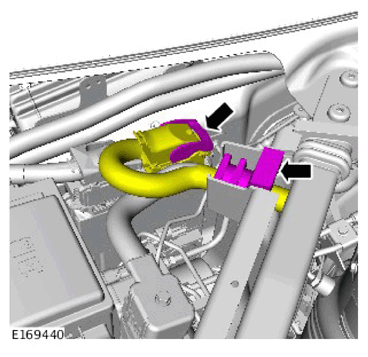

  3. G11308429

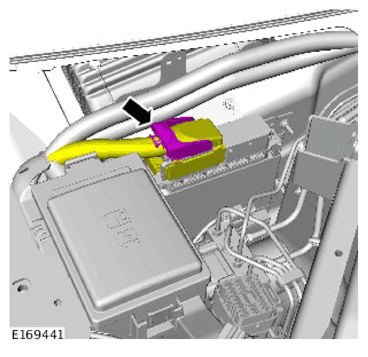

  4. G11308430

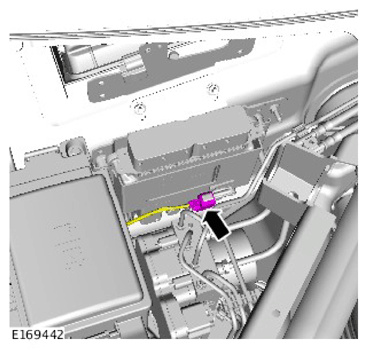

  5. NOTE: If equipped.
    G11308431

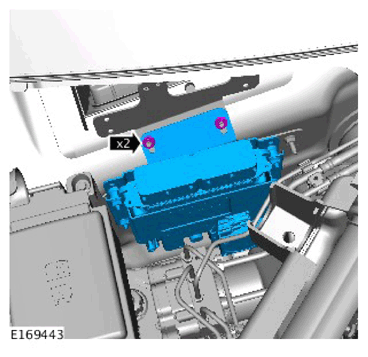

  6. G11308432

    Torque Specification: 7 Nm

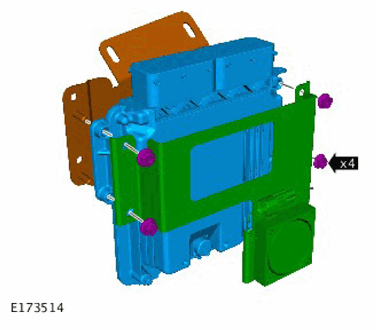

  7. NOTE: Do not disassemble further if the component is removed for access only.
    G11308433

    Torque Specification: 7 Nm

    Right-hand drive vehicles

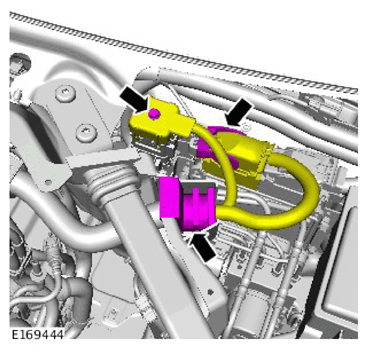

  8. G11308434

    Torque Specification: 3.6 Nm

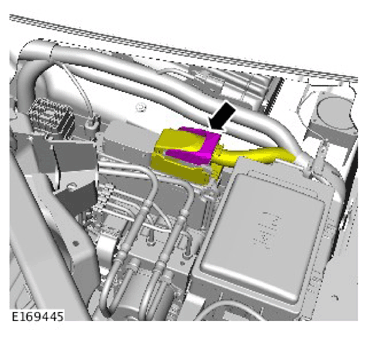

  9. G11308435

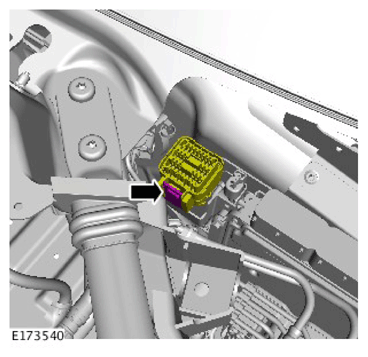

  10. G11308436

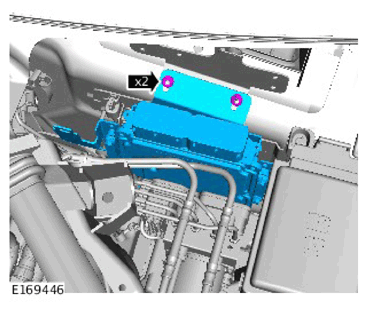

  11. G11308437

    Torque Specification: 7 Nm

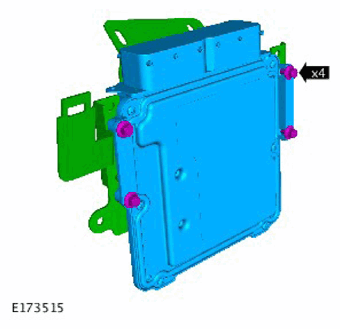

  12. NOTE: Do not disassemble further if the component is removed for access only.
    G11308438

    Torque Specification: 7 Nm
