Removal And Installation: Removal

NOTE: The pedestrian protection module must be renewed if the system has deployed on 3 occasions.
  1. Make the pedestrian protection system safe.
  2. Remove the front LH fender splash shield.

    For additional information, refer to: Fender Splash Shield

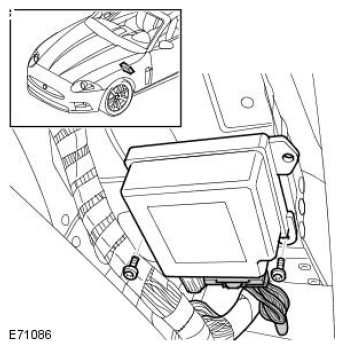

  3. See Figure
    G11549416

    Remove the pedestrian protection module.

    • Remove and discard the 2 Torx bolts.
    • Disconnect the electrical connector.
