Touch Screen Display Unit, 7" Screen Brackets (SSM66077)

Publication date: 2013-06-10
Reference number: SSM66077

TOUCH SCREEN DISPLAY UNIT, 7" SCREEN BRACKETS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SSM66077, Date of Issue: June 10, 2013

JAGUAR:	XF/X250
CATEGORY:	Electrical

SERVICE INFORMATION

Symptom 207000 Entertainment Systems

NOTE: This issue is only applicable to XF, 12MY onwards fitted with the 7 inch screen.

ISSUE

When returning a screen the securing brackets are not being removed.

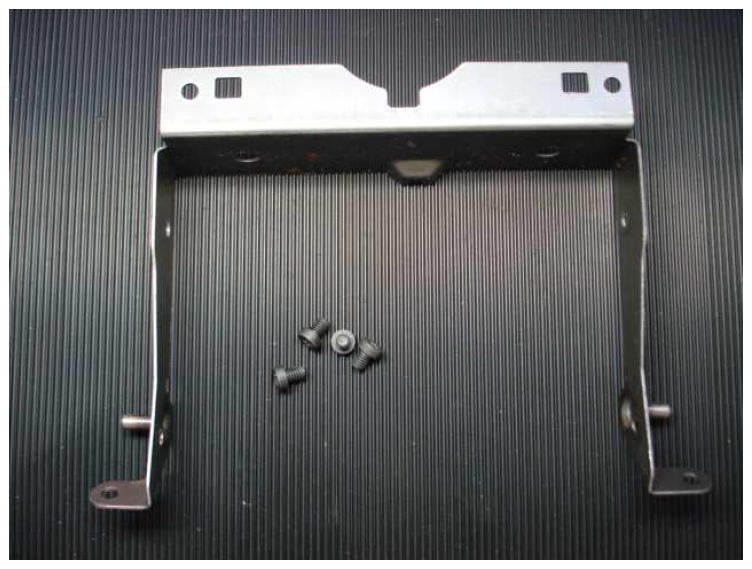

See above graphic

CAUSE

The brackets on the touch screen must be to be removed prior to shipping to the Jaguar Land Rover returns center.

NOTE: The touch screen brackets are a none serviceable part.

ACTION

The brackets on the touch screen need to be removed prior to dispatch to the Jaguar Land Rover returns centre to be reused on the new replacement unit which will be supplied without the brackets fitted.
