Improving Diagnostics For Warning Lamp Symptoms And Messages (SSM51117)

IMPROVING DIAGNOSTICS FOR WARNING LAMP SYMPTOMS AND MESSAGES

TECHNICAL SERVICE BULLETIN

ISSUE

Need to improve the recommendations by the SDD tool when customer symptom is "(multiple) warning lights on the instrument cluster" or "warning messages in display".

Cause:

The symptom selection is not carried on past the general symptom "Warning lamps" or "Information and message center" 3rd level on the diagnostics screen. See attached file.

ACTION

To improve the diagnostics and recommendations provided by the SDD tool, all warning lights and warning message symptoms should always be selected to the 4th or 5th level (where applicable). See attached file.

Listed below are the most frequently reported warning lamp issues.

ABS lamp as appropriate:-

Electrical\Instruments\Warning lamps\ABS lamp illuminated

Electrical\Instruments\Warning lamps\ABS lamp intermittent

Content

Airbag lamp as appropriate:-

Electrical\Instruments\Warning lamps\Air bag warning lamp\Lamp illuminated

Electrical\Instruments\Warning lamps\Air bag warning lamp\Lamp intermittent

Electrical\Instruments\Warning lamps\Air bag warning lamp\Lamp flashing

Dynamic stability control lamp as appropriate:-

Electrical\Instruments\Warning lamps\DSC lamp illuminated\Lamp intermittent

Electrical\Instruments\Warning lamps\DSC lamp illuminated\Lamp flashing

Engine malfunction lamp as appropriate:-

Electrical\Instruments\Warning lamps\Engine malfunction lamp\ Lamp illuminated

Electrical\Instruments\Warning lamps\Engine malfunction lamp\ Lamp flashing

Park brake lamp as appropriate:-

Electrical\Instruments\Warning lamps\Park brake warning lamp\Yellow warning lamp illuminated

Electrical\Instruments\Warning lamps\Park brake warning lamp\Red warning lamp illuminated

Electrical\Instruments\Warning lamps\Park brake warning lamp\Red warning lamp flashing

Transmission warning lamp as appropriate:-

Electrical\Instruments\Warning lamps\Transmission warning lamp illuminated\Yellow warning lamp illuminated

Electrical\Instruments\Warning lamps\Transmission warning lamp illuminated\Red warning lamp illuminated

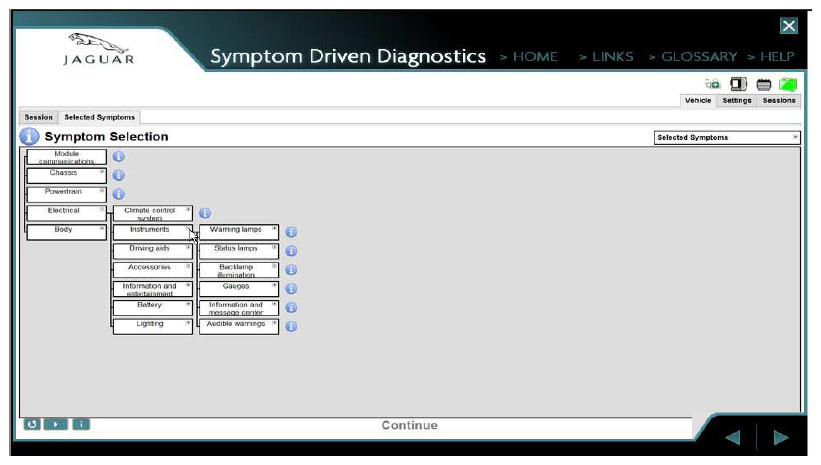

Level 3

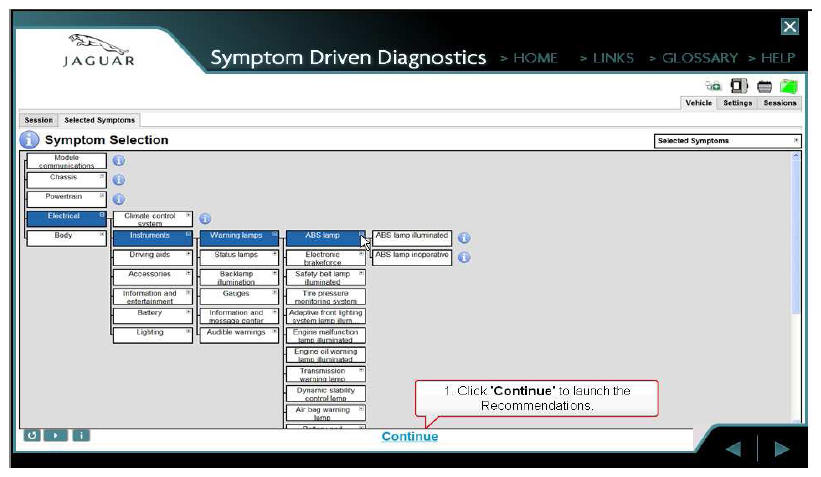

Level 4 or 5
