Speed Control Module: Removal

WARNING: This page is about a different car, the 2010 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to Battery Disconnect and Connect information.
  2. See Speed Control Sensor Adjustment .
  3. Refer to INSTRUMENT PANEL LOWER TRIM PANEL (G1006284) information.

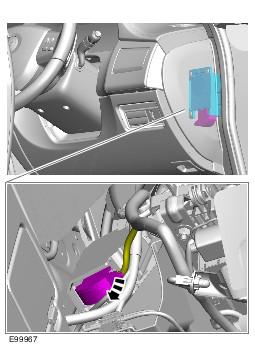

  4. See figure.
    GJ0011380
    5. CAUTION: Make sure that all diagnostic trouble codes (DTCs) have been removed after the road test.
  5. Torque: 4 Nm.
    GJ0011381
