Abs Module

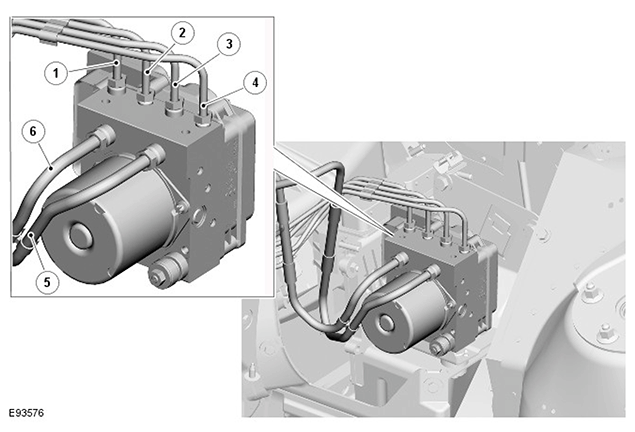

| ITEM | DESCRIPTION |
|---|---|
| 1 | LH front brake |
| 2 | RH rear brake |
| 3 | LH rear brake |
| 4 | RH front brake |
| 5 | Primary inlet |
| 6 | Secondary inlet |
The ABS module is located in the passenger side, rear engine bay and incorporates the HCU. The module is mounted on the rear face of the HCU, which it uses to control all braking and stability functions by modulating hydraulic pressure to the individual wheel brakes.
Two types of ABS modules are available; one for vehicles with standard Speed Control, one for vehicles fitted with Adaptive Speed Control.
If an ABS modulator fault is detected, 'ABS FAULT' will be displayed in the instrument cluster message center and the amber warning indicator will illuminate.
Refer to: Information and Message Center (413-08 Information and Message Center, Description and Operation).
CAUTION:
The ABS module and the HCU comprise a single unit and must not be separated.
