4.25.1 Description

The Engine Torque is monitored to ensure that there is no large unintended torque available which is greater than that requested by the driver.

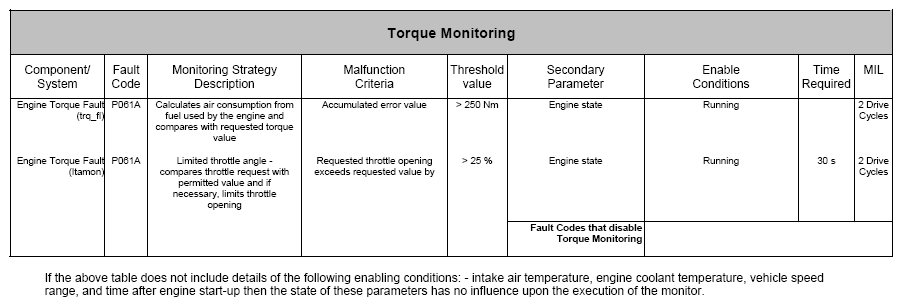

Fig 1: Torque Monitoring (P061A)
G06422070Courtesy of JAGUAR CARS, INC.
