4.13.5 Monitoring Structure

Fig 1: Manifold Pressure Sensor Monitoring (P0106, P0107, P0108)

Courtesy of JAGUAR CARS, INC.

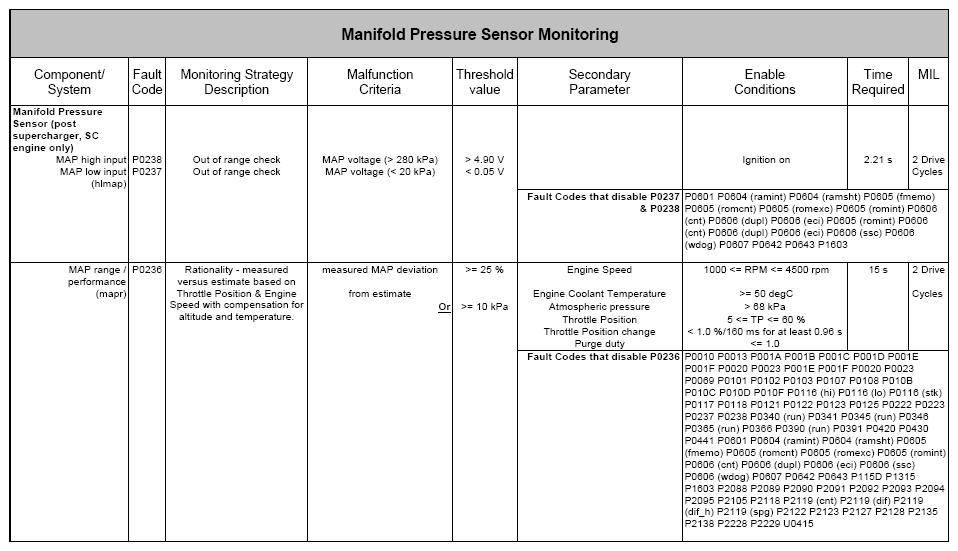

Fig 2: Manifold Pressure Sensor Monitoring (P0236, P0237, P0238)

Courtesy of JAGUAR CARS, INC.

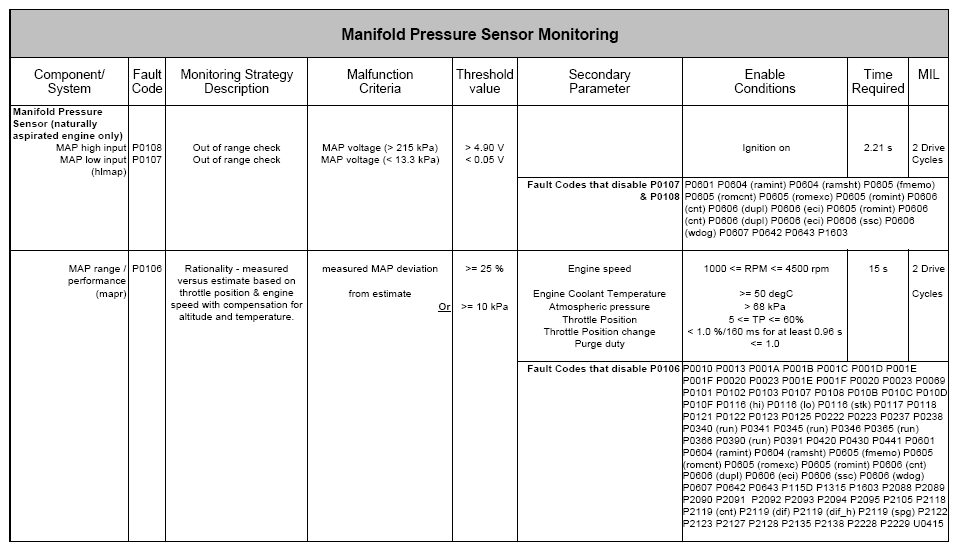

Fig 3: Manifold Pressure Sensor Monitoring (P0106, P0107, P0108)

Courtesy of JAGUAR CARS, INC.

If the above table does not include details of the following enabling conditions: - intake air temperature, engine coolant temperature, vehicle speed range, and time after engine start-up then the state of these parameters has no influence upon the execution of the monitor.
