4.32.2 Camshaft Position

The camshaft position sensors are used to monitor the actual level of camshaft advance/retard against the target level. If the target and actual values do not match for a calibratable period of time a failure is registered. If a failure is registered on 2 drive cycles, the MIL will illuminate.

Fig 1: Variable Valve Timing (Diagnostic Trouble Codes P0026, P0028, P0075, P0076, P0077, P0081, P0083 - 1 Of 1)

Courtesy of JAGUAR CARS, INC.

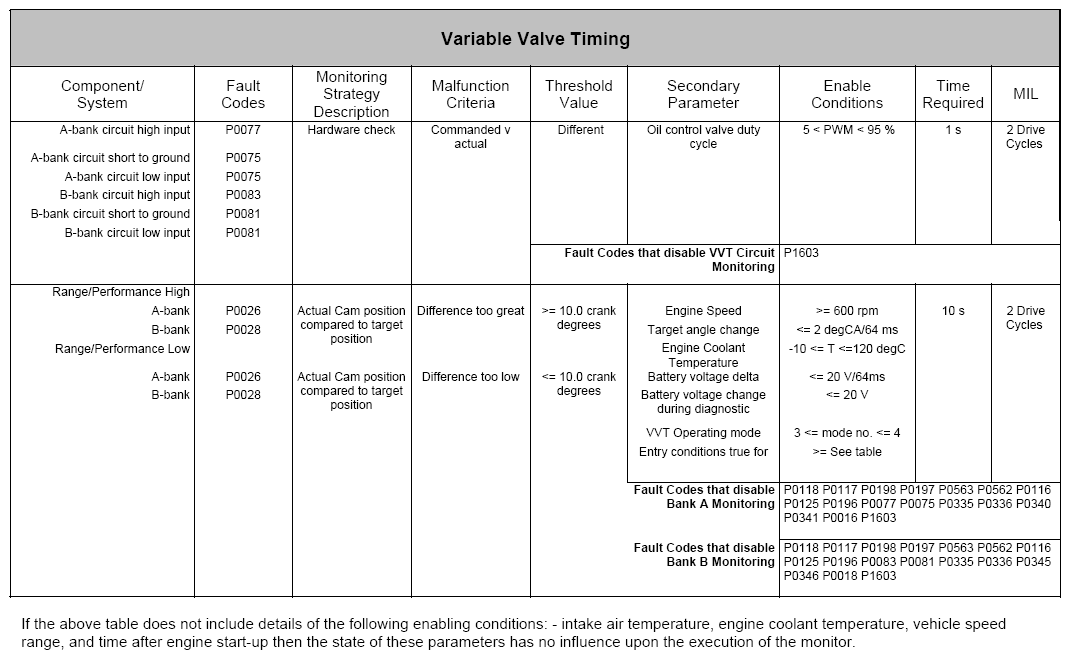

Fig 2: Variable Valve Timing Description Chart (Diagnostic Trouble Codes P0026, P0028 - 2 Of 2)

Courtesy of JAGUAR CARS, INC.
