4 Onboard Monitoring
>>
4.21 Fuel Rail Temperature (FRT) Sensor
>>
4.21.3 Monitoring Structure
4.21.3 Monitoring Structure

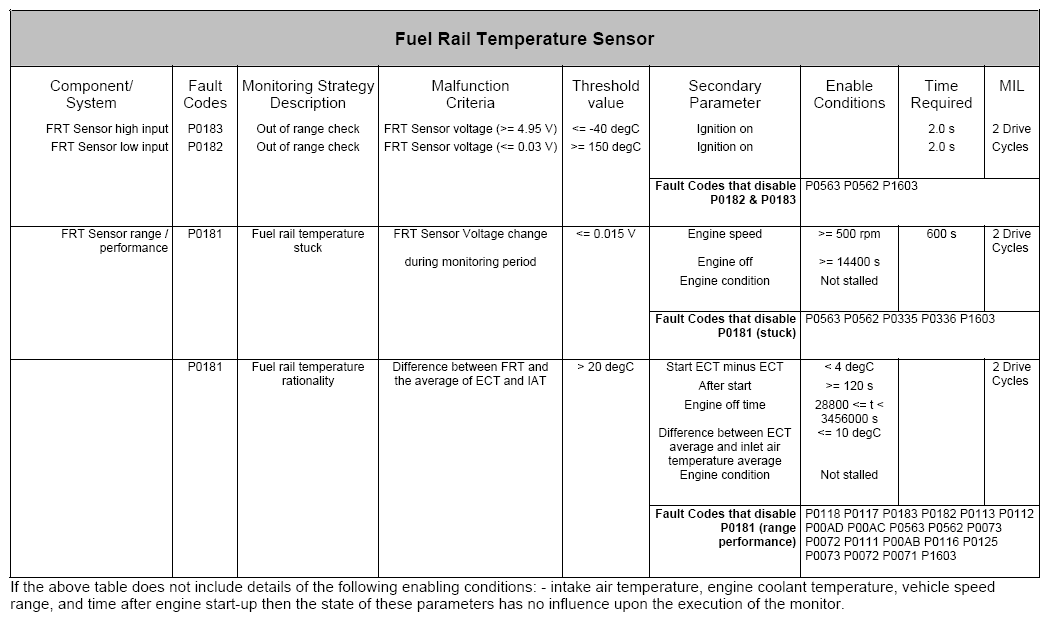

Fig 1: Fuel Rail Temperature Sensor (Diagnostic Trouble Codes P0181, P0182, P0183)
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
