4.2.5 Misfire Enable Criteria

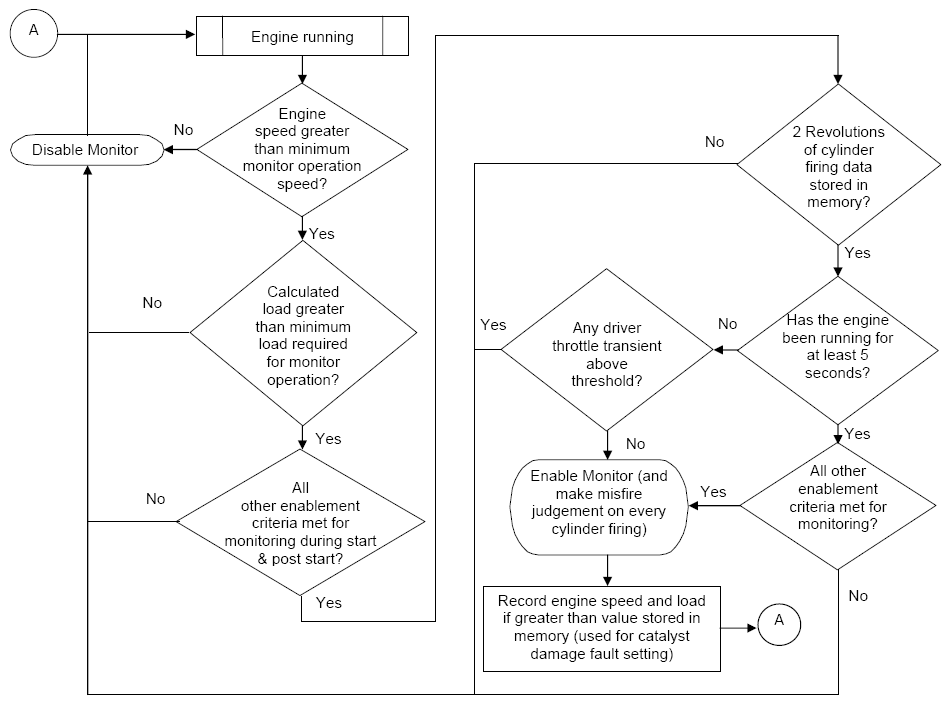

Fig 1: Misfire Enable Criteria Flow Chart
G06421656Courtesy of JAGUAR CARS, INC.

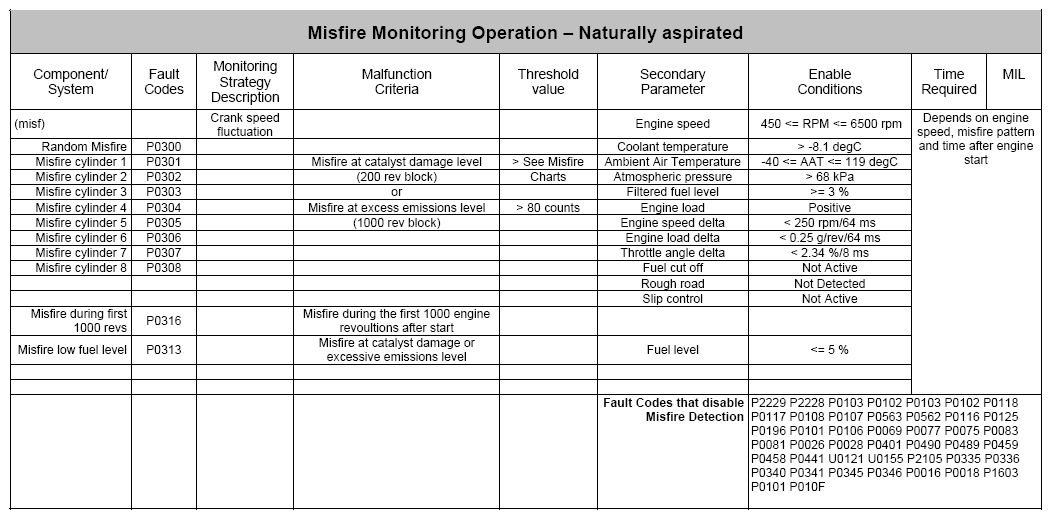

Fig 2: Misfire Monitoring Operation - Naturally Aspirated (P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0307, P0308, P0313, P0316)
G06421657Courtesy of JAGUAR CARS, INC.

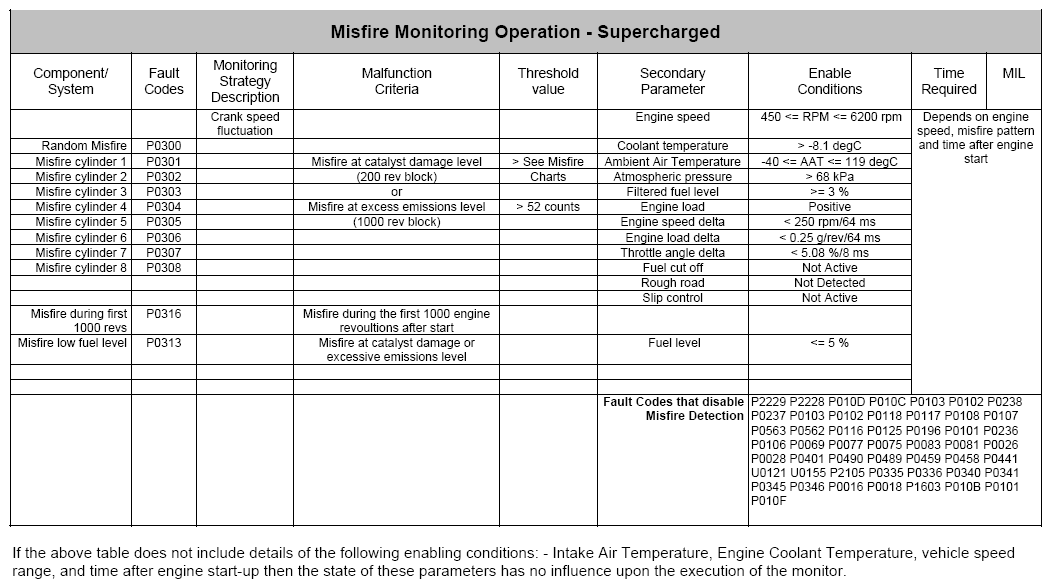

Fig 3: Misfire Monitoring Operation - Supercharged (P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0307, P0308, P0313, P0316)
G06421658Courtesy of JAGUAR CARS, INC.

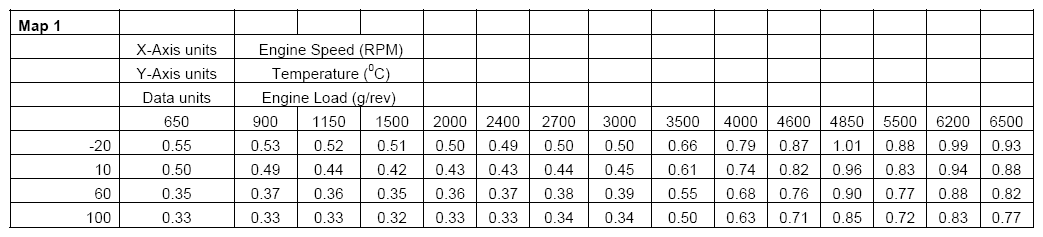

Fig 4: MAP 1 Reference Chart
G06421659Courtesy of JAGUAR CARS, INC.

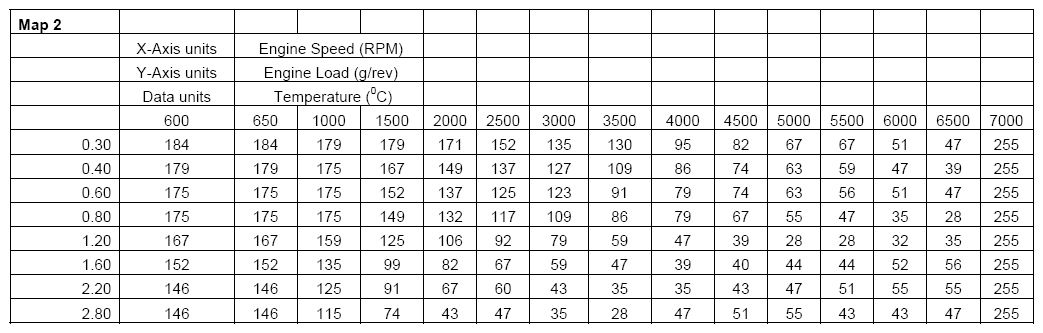

Fig 5: MAP 2 Reference Chart
G06421660Courtesy of JAGUAR CARS, INC.
