Brake Shift Interlock Actuator Manual Override - General Procedures

Courtesy of JAGUAR CARS, INC.

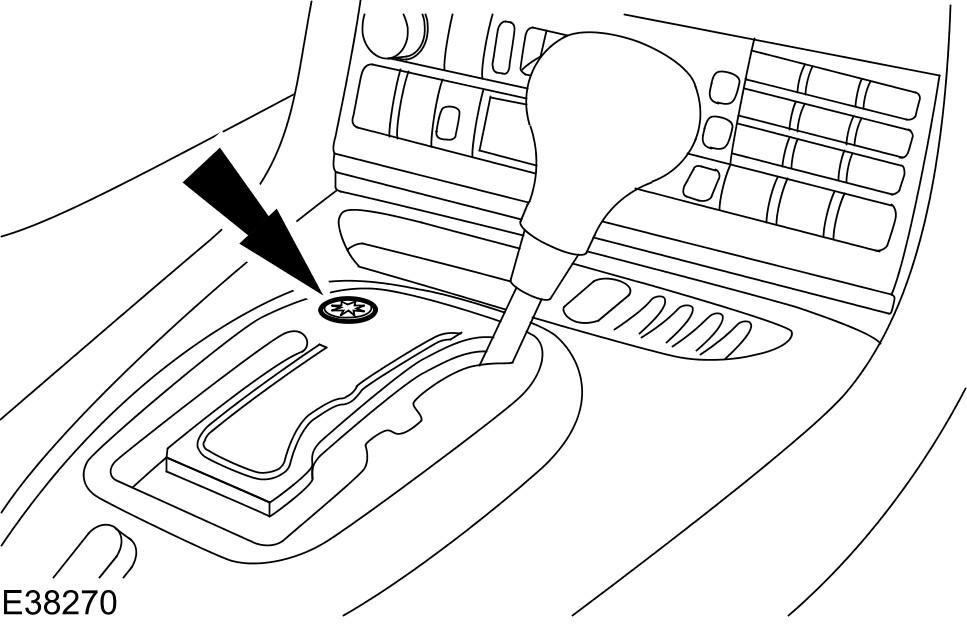

1. Remove the selector lever blanking screw.

   Courtesy of JAGUAR CARS, INC.

2. Using a suitable tool, press and hold the brake shift interlock actuator manual override and simultaneously move the selector lever to the "N" position.
3. Remove the suitable tool.

   Courtesy of JAGUAR CARS, INC.

4. Install the selector lever blanking screw.
