Oil Temperature Sensor (18.31.01): Installation

    NOTE: Apply a small bead of sealant meeting Jaguar specification on the first three threads of the oil temperature sensor.
  1. To install, reverse the removal procedure
    • Tighten to 15 N.m.

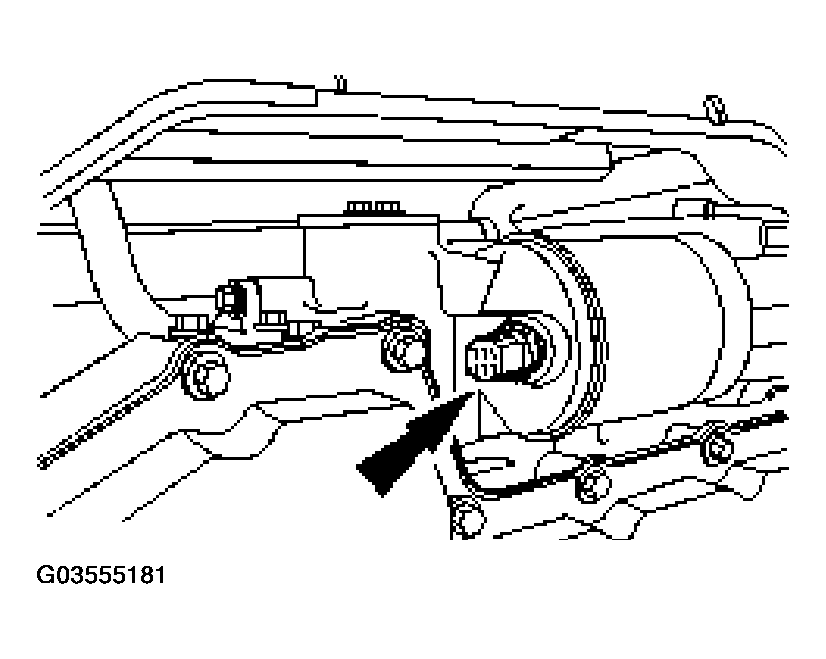

      Fig 1: Tightening Bolts With Torque Specification
      G03555181Courtesy of JAGUAR CARS, INC.
