Fuel Temperature Sensor (18.30.99): Removal

Vehicles with 3.5L or 4.2L engine without supercharger

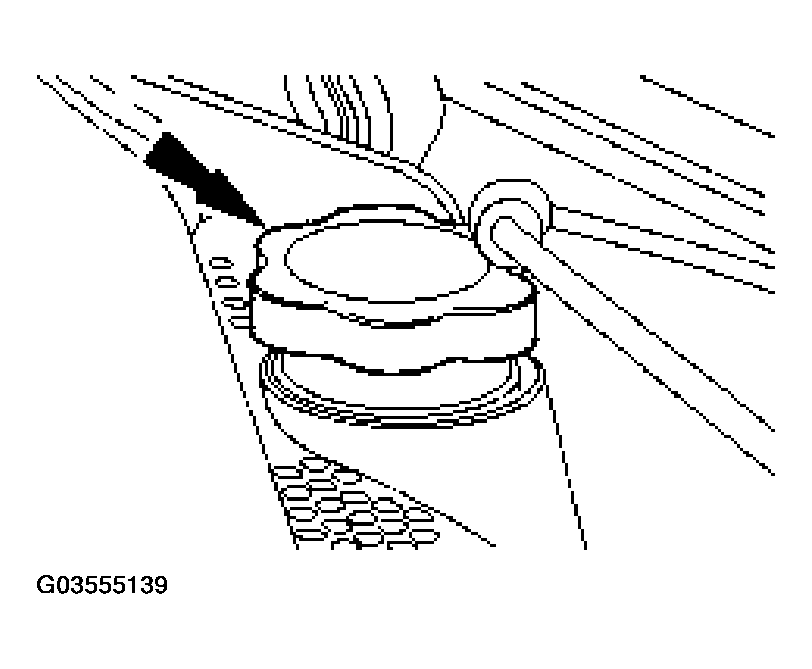

1. Remove the oil filler cap.
   Fig 1: Removing Oil Filler Cap

   Courtesy of JAGUAR CARS, INC.

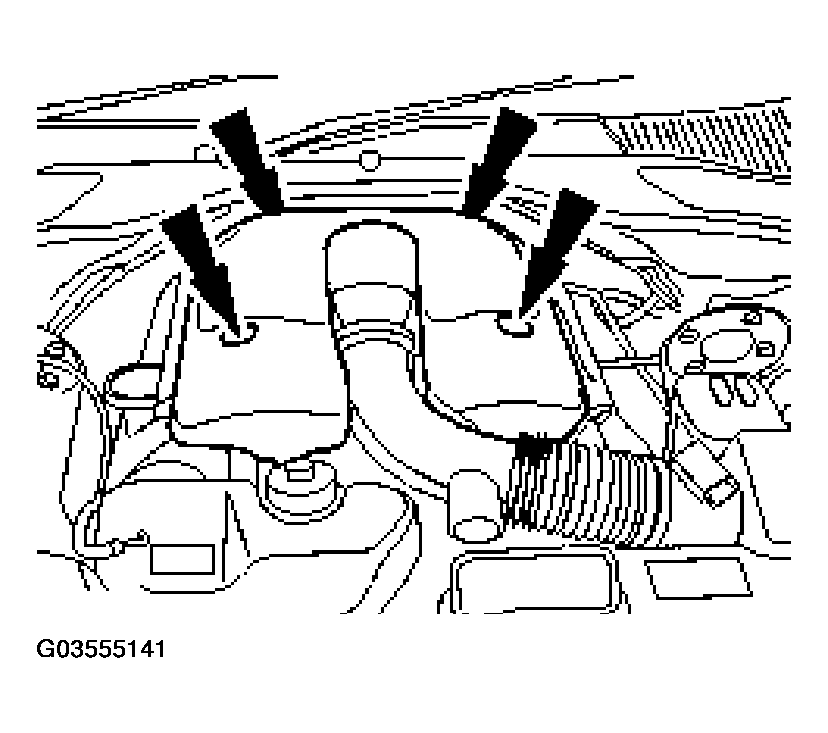

2. Remove the engine cover.
   Fig 2: Removing Engine Cover

   Courtesy of JAGUAR CARS, INC.

Vehicles with supercharger

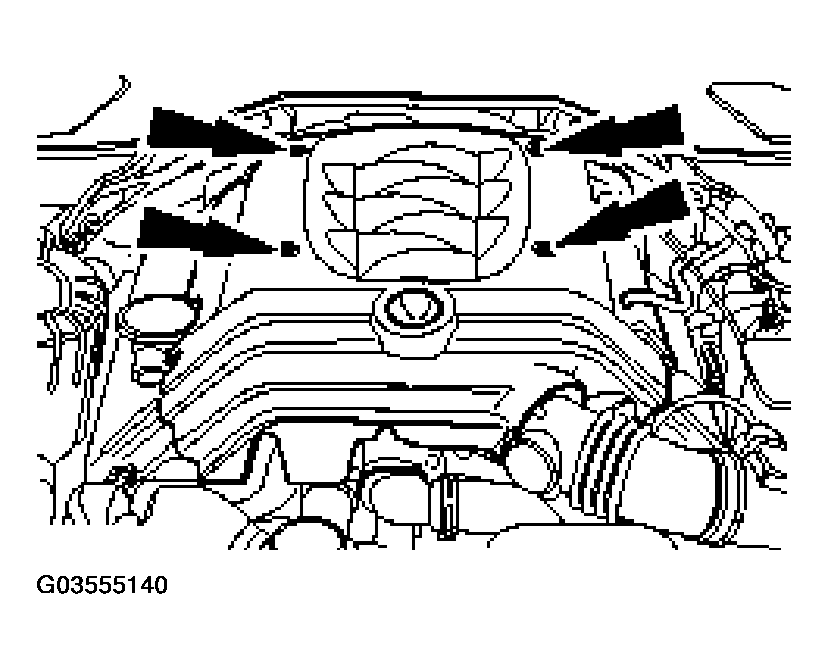

3. Remove the engine cover.
   Fig 3: Removing Engine Cover

   Courtesy of JAGUAR CARS, INC.

All vehicles

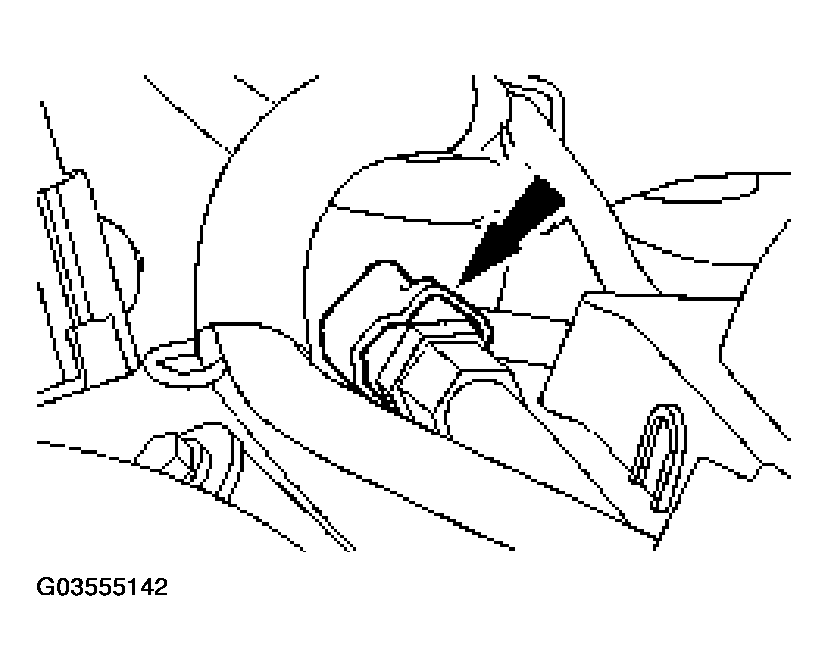

4. Disconnect the fuel temperature sensor electrical connector.
   Fig 4: Disconnecting Fuel Temperature Sensor Electrical Connector

   Courtesy of JAGUAR CARS, INC.

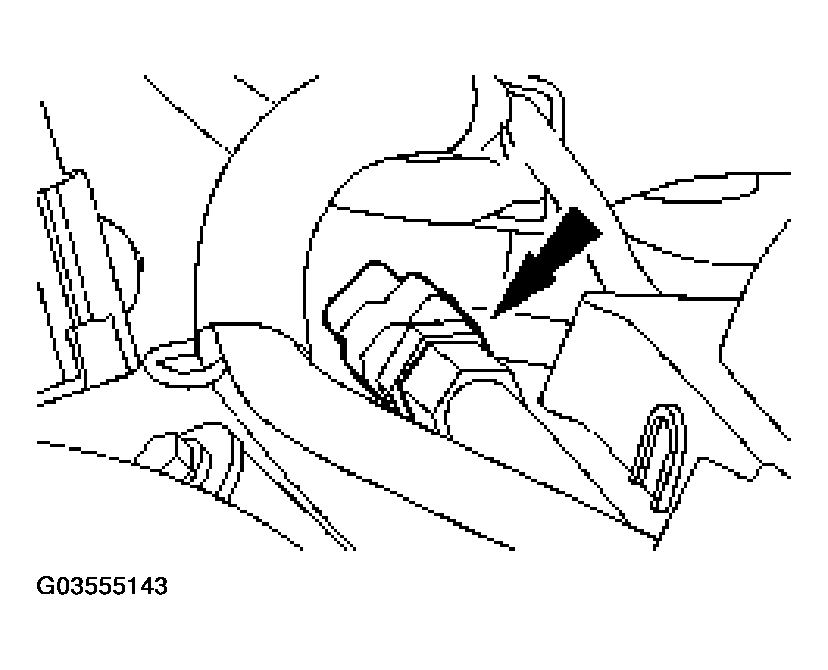

5. Remove the fuel temperature sensor.
   Fig 5: Removing Fuel Temperature Sensor

   Courtesy of JAGUAR CARS, INC.
