Central Junction Box (CJB) LH - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

Open the driver's door, or both doors if necessary, to allow the side windows to drop. Ensure that the doors remain open until after the battery has been disconnected.

Courtesy of JAGUAR CARS, INC.
Disconnect the battery ground cable.
- Remove the battery cover.
Courtesy of JAGUAR CARS, INC.

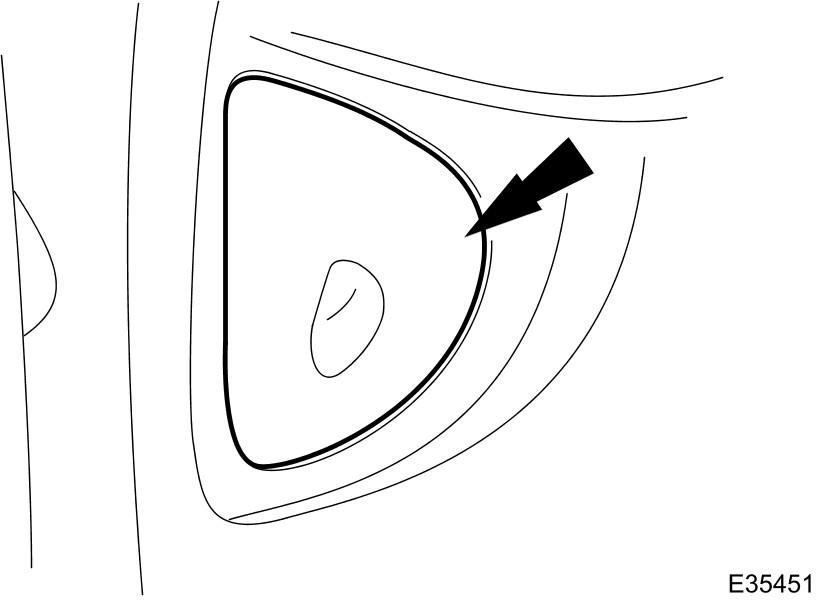

Remove the cover from the fuse-box.
Remove the glovebox assembly, for access to the connectors. Refer to INSTRUMENT PANEL AND CONSOLE .
From behind the fuse-box (in the glovebox area) disconnect the harness multi-plug.

Courtesy of JAGUAR CARS, INC.

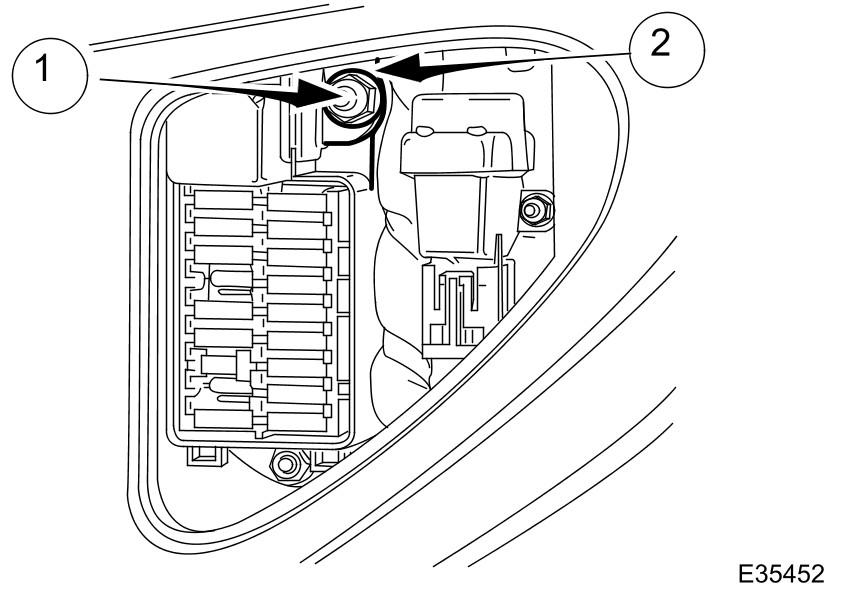

Remove the positive supply power cable.
1. Remove the nut which secures the positive cable to the fuse-box.
2. Disconnect the positive power cable.
Courtesy of JAGUAR CARS, INC.

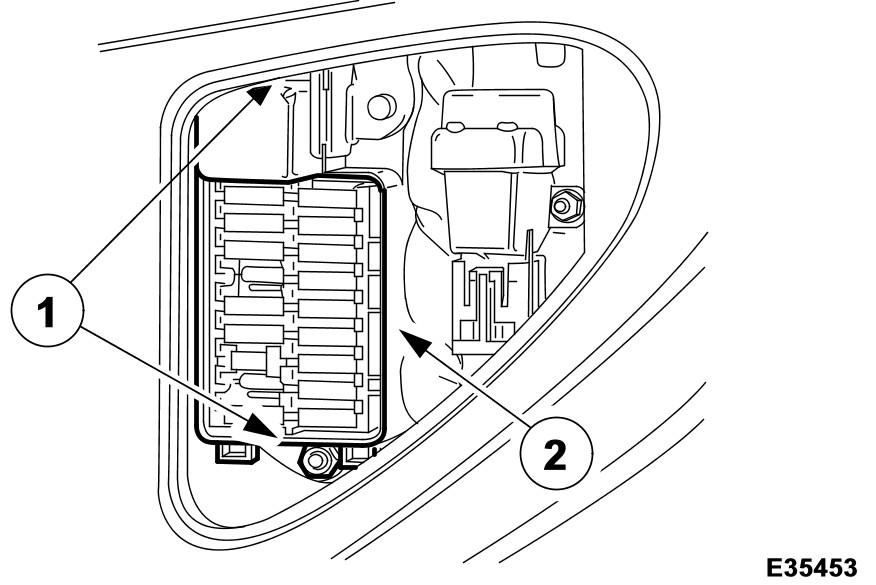

Remove the fuse-box.
1. Remove the two nuts which secure the fuse-box to the fascia.
2. Remove the fuse-box from the vehicle.
Courtesy of JAGUAR CARS, INC.

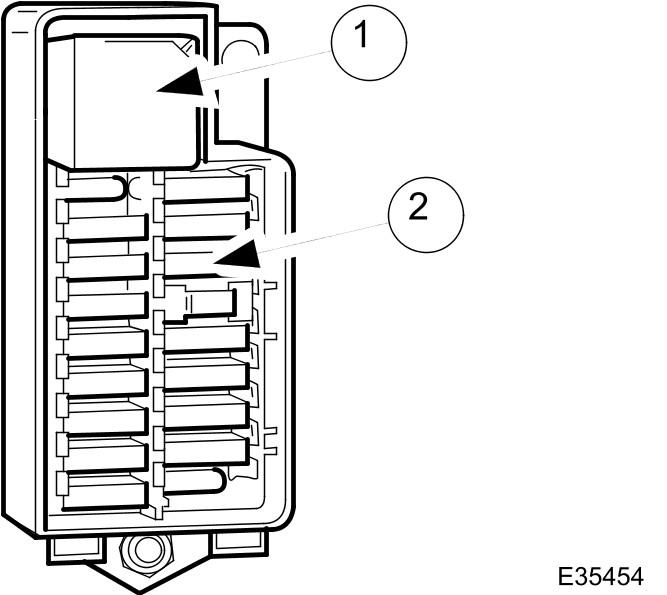

Remove the fuses and relay.
1. Remove the relay.
2. Identify each fuse and remove them. The value and position of each fuse is illustrated on the lid of the luggage compartment fuse-box - for all fuse-boxes on the vehicle.
