Driver Door Module (DDM) - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the driver's door, or both doors if necessary, to allow the side windows to drop. Ensure that the doors remain open until after the battery has been disconnected.
    GJ0000551Courtesy of JAGUAR CARS, INC.
  2. Disconnect the battery ground cable.
    • Remove the battery cover.
  3. Remove the trim pad from the door; refer to INTERIOR TRIM AND ORNAMENTATION .

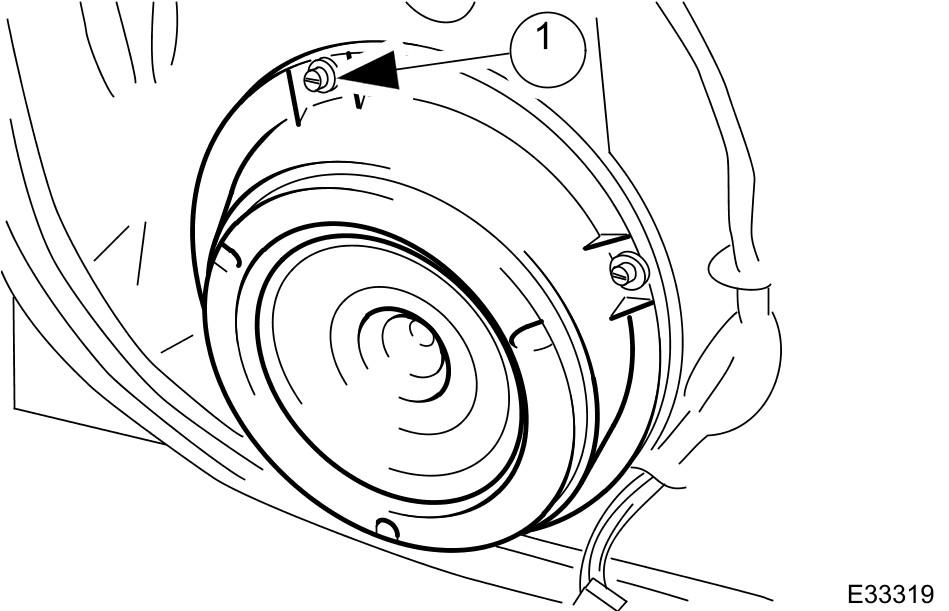

    GJ0001939Courtesy of JAGUAR CARS, INC.
  4. Remove the door speaker from the door.
    1. Remove the four bolts which secure the speaker.

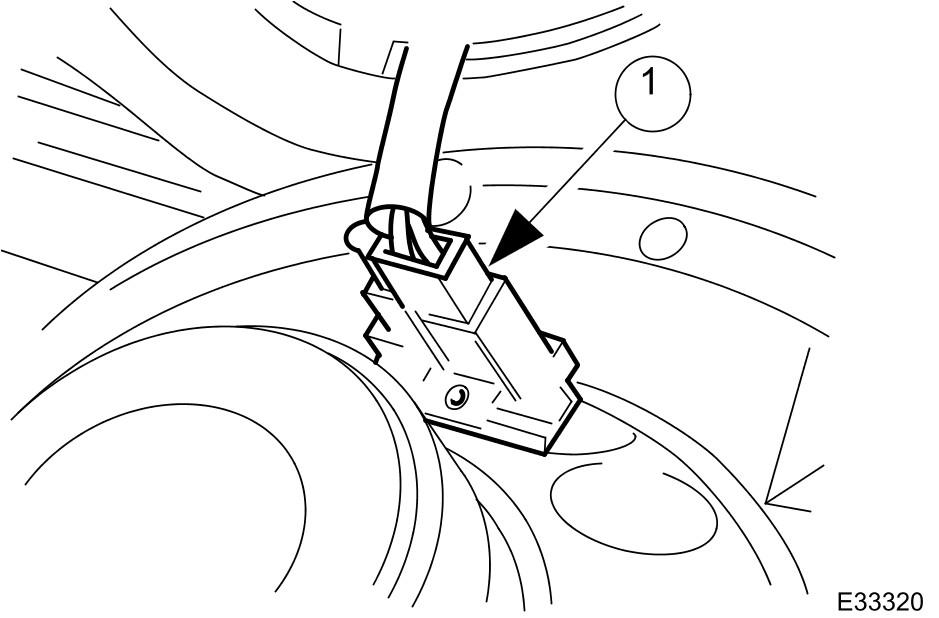

    GJ0001940Courtesy of JAGUAR CARS, INC.
  5. Disconnect and remove the speaker.
    1. Support the speaker, disconnect the multi-plug and remove the speaker.

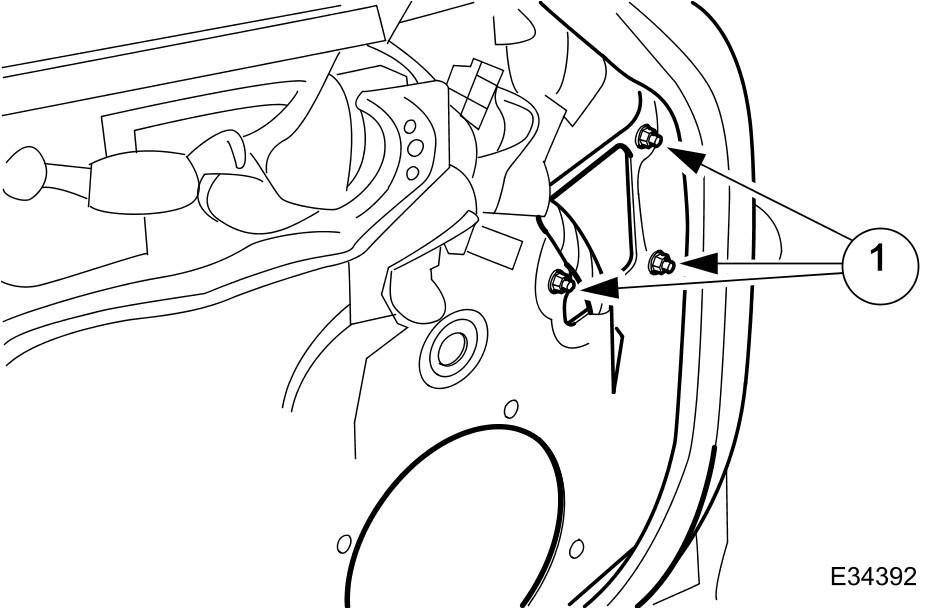

    GJ0001941Courtesy of JAGUAR CARS, INC.
  6. Disconnect the door module.
    1. Remove the three screws which secure the module to the door.
    2. Reposition the module outwards through the speaker aperture.

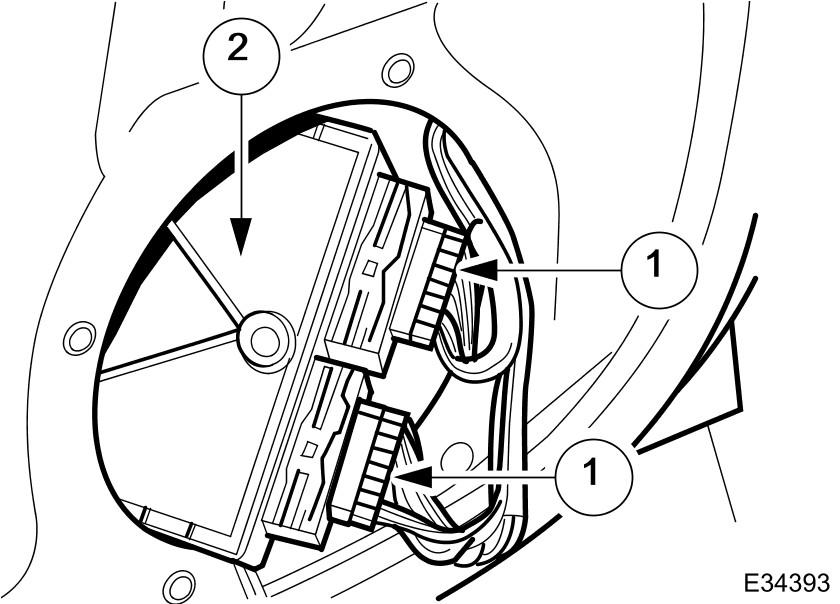

    GJ0001942Courtesy of JAGUAR CARS, INC.
  7. Disconnect the harness from the module.
    1. Disconnect the two multi-plugs.
    2. Remove the module.
  8. If necessary remove the foam gasket from the module; note that a new gasket must be fitted when installing a new module.
