Home >> Jaguar >> 2003 >> XJ8 SC >> Repair and Diagnosis (Single Page) >> Electrical >> Wiring Diagrams >> Connector End Views >> Connector End Views >> Passenger Rear Door Control Module Connector End View

Passenger Rear Door Control Module Connector End View

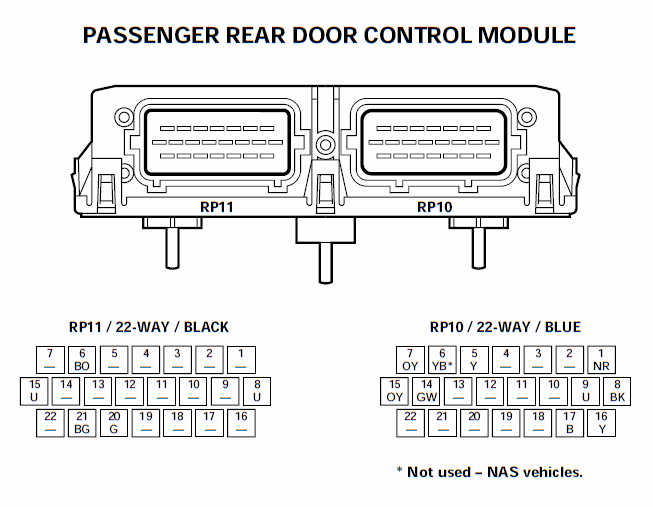

Fig 1: Passenger Rear Door Control Module Connector End View

G00558656

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
