Driver Seat Module (DSM) - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. Refer to Battery, Mounting and Cables article.
    GJ0001693Courtesy of JAGUAR CARS, INC.
  2. Detach the driver seat module (DSM) and mounting bracket.
    GJ0001694Courtesy of JAGUAR CARS, INC.

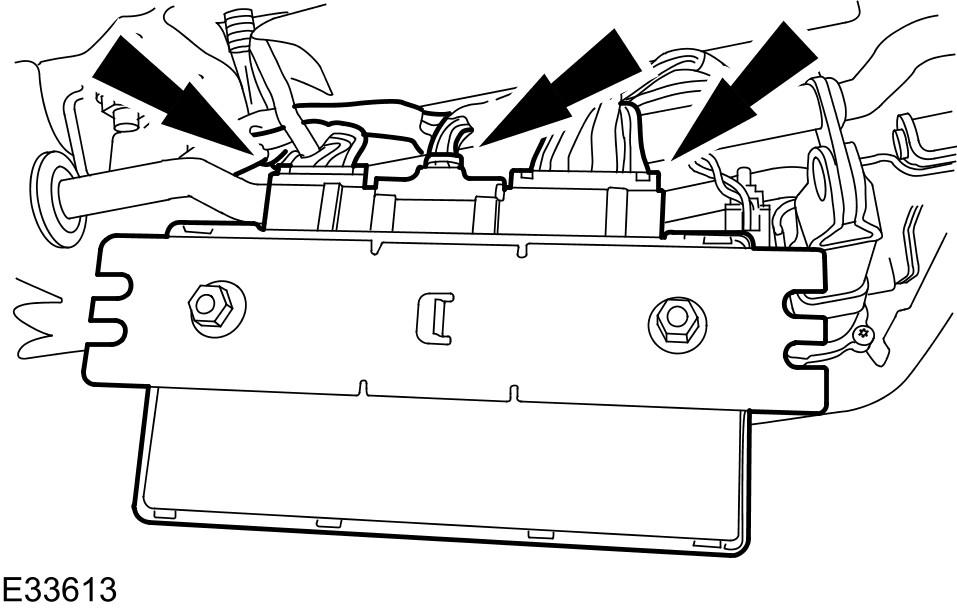

  3. Remove the DSM and mounting bracket.
    • Disconnect the electrical connectors.
    GJ0001695Courtesy of JAGUAR CARS, INC.
  4. Remove the DSM
