Selector Lever - Assembly and Disassembly: Disassembly

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

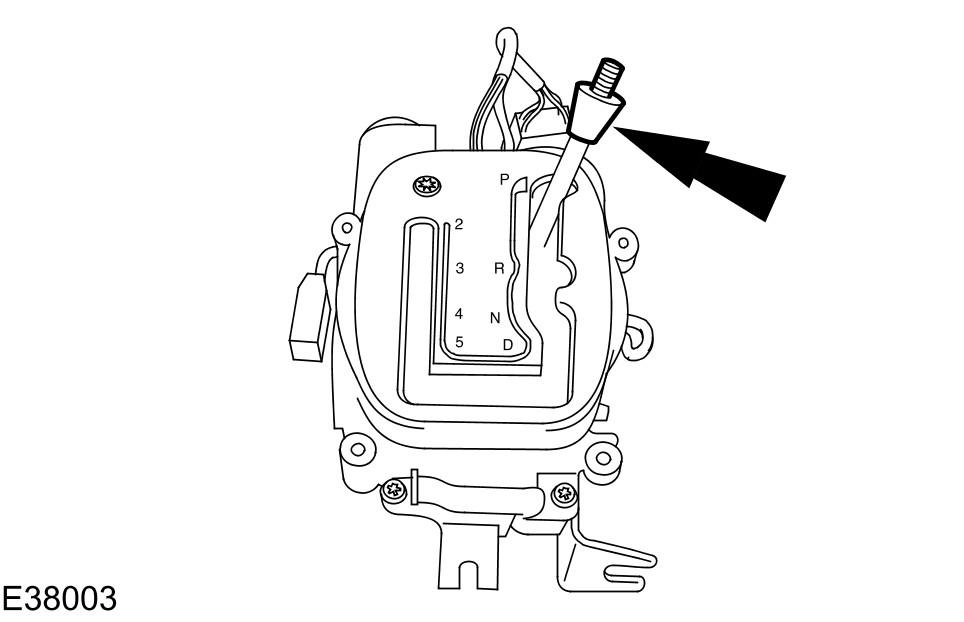

  1. Remove the transmission selector lever knob. Refer to Transmission Selector Lever Knob - Removal and Installation .
  2. Remove the transmission control switch. Refer to Transmission Control Switch - Removal and Installation .
    GJ0002473Courtesy of JAGUAR CARS, INC.

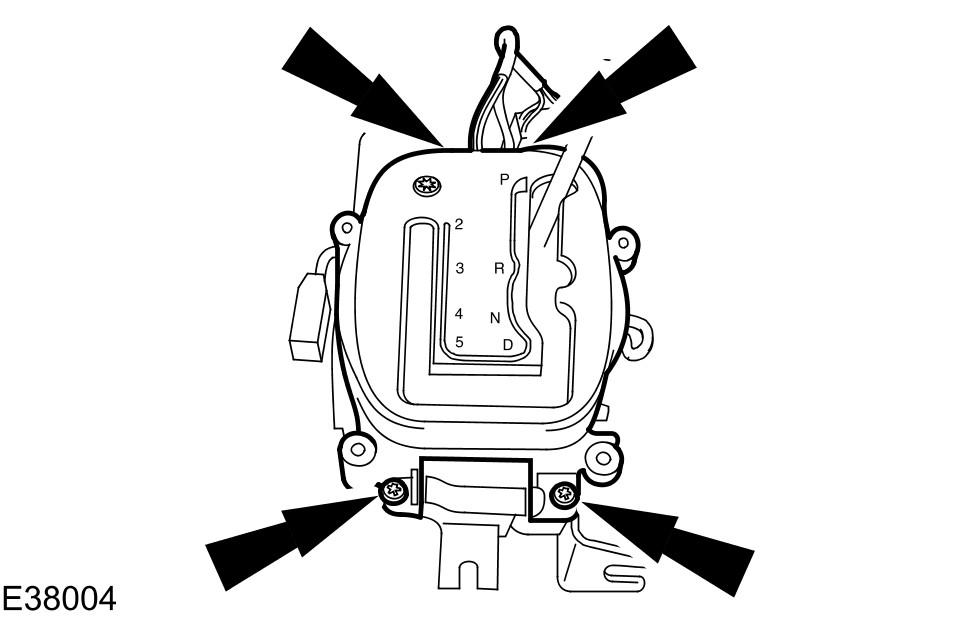

  3. Remove the transmission selector lever knob locking collar.
    GJ0002474Courtesy of JAGUAR CARS, INC.
  4. Remove the selector lever indicator assembly.
    GJ0002475Courtesy of JAGUAR CARS, INC.

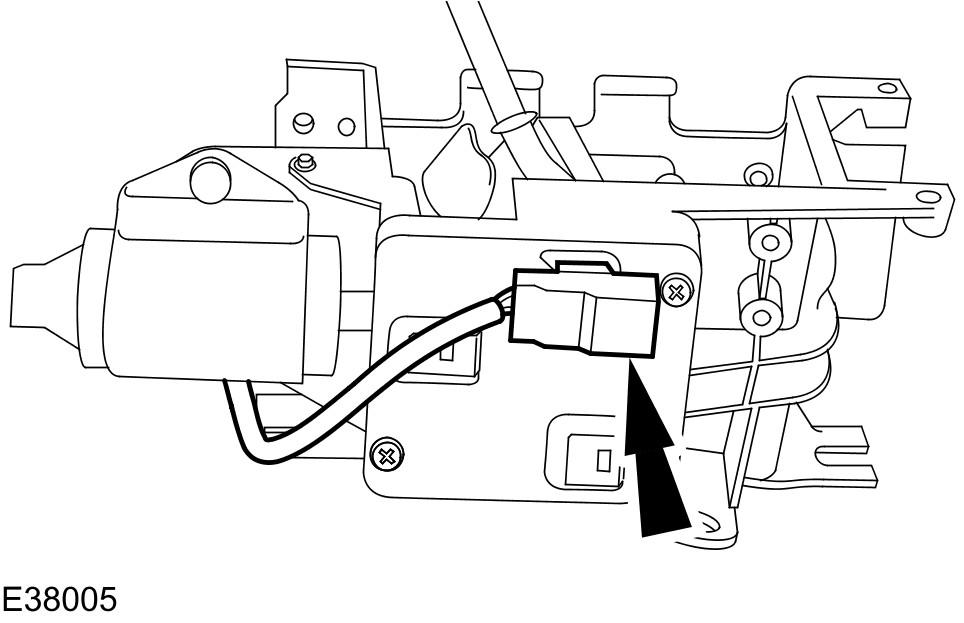

  5. Detach the park position switch electrical connector.
    GJ0002476Courtesy of JAGUAR CARS, INC.

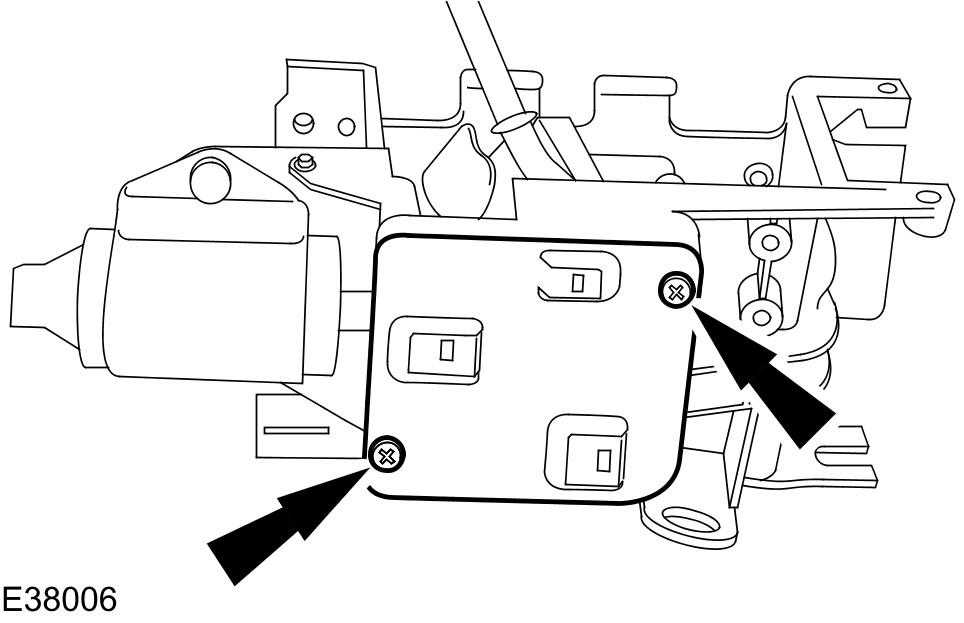

  6. Remove the brake shift interlock actuator cover.
    GJ0002477Courtesy of JAGUAR CARS, INC.
  7. Remove the brake shift interlock actuator.
    GJ0002478Courtesy of JAGUAR CARS, INC.

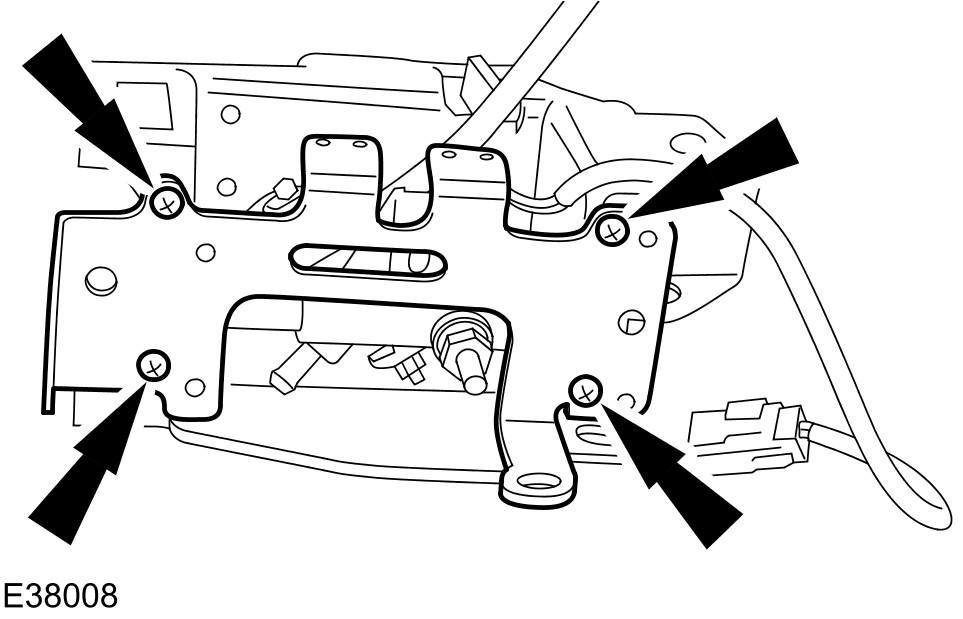

  8. Remove the side plate.
    GJ0002479Courtesy of JAGUAR CARS, INC.

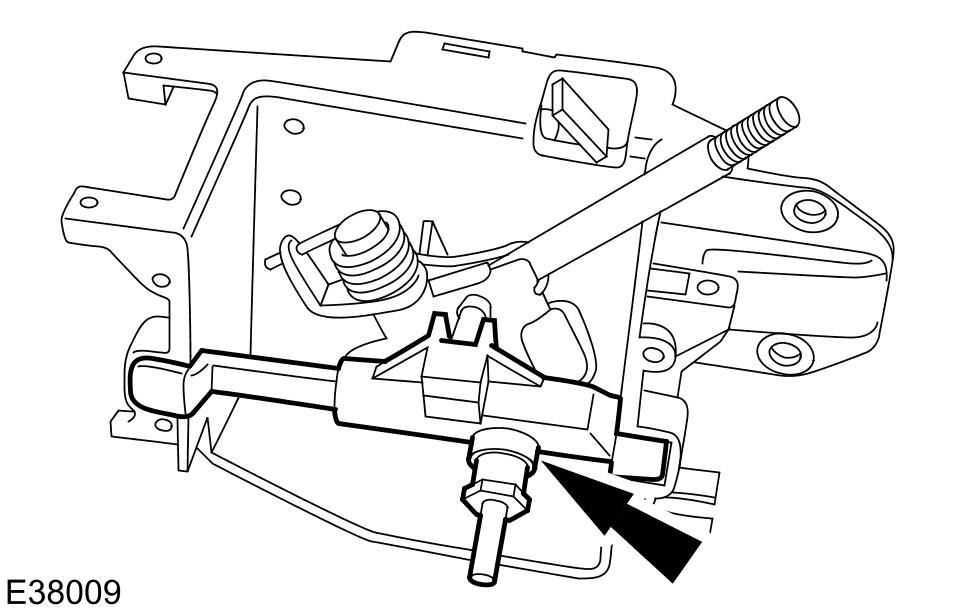

  9. Remove the slide block and shaft assembly.
    GJ0002480Courtesy of JAGUAR CARS, INC.
  10. Remove the brake shift interlock lever.
    GJ0002481Courtesy of JAGUAR CARS, INC.

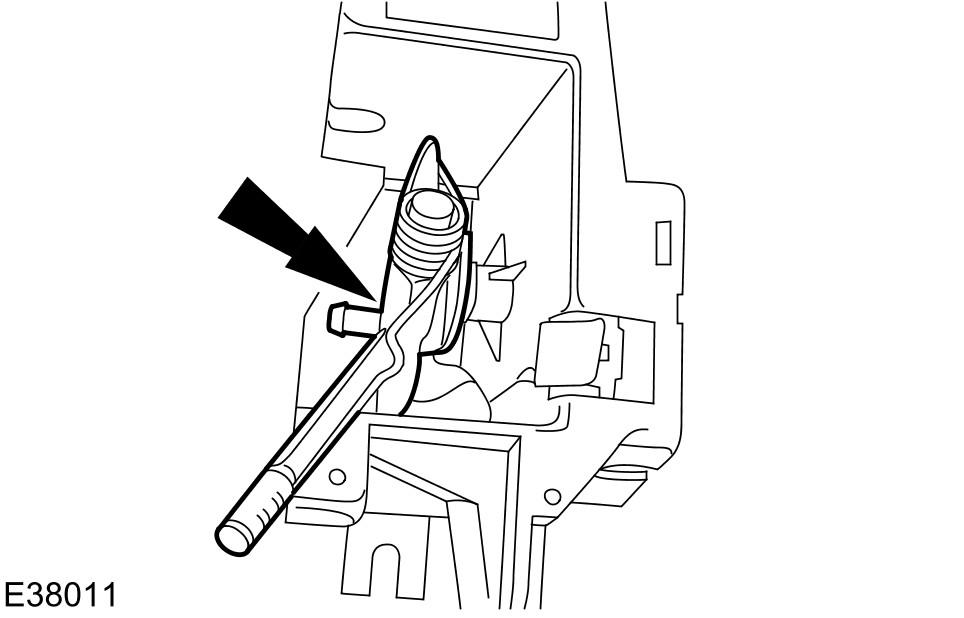

  11. Remove the selector lever assembly.
    GJ0002482Courtesy of JAGUAR CARS, INC.

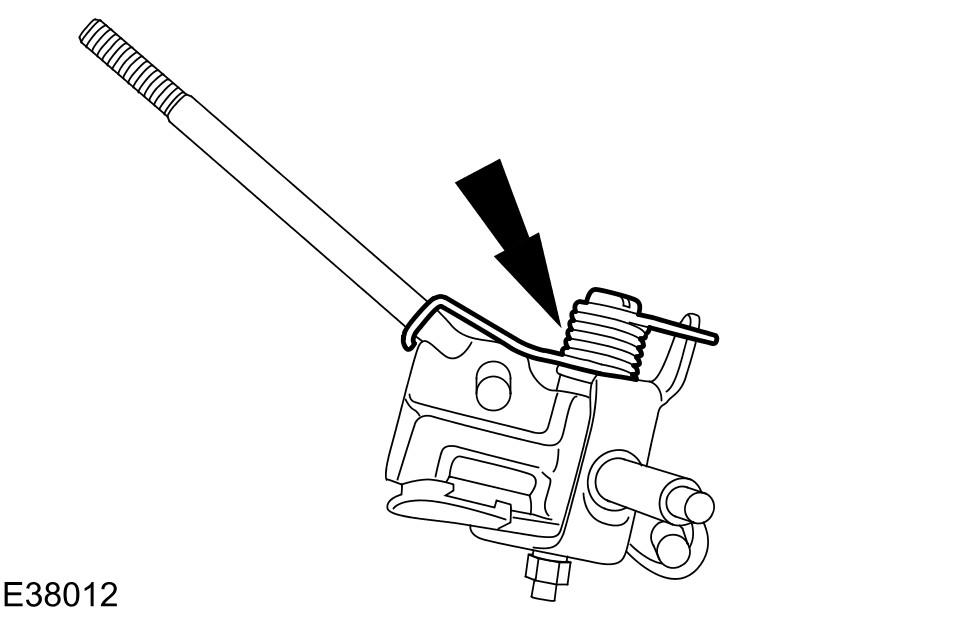

  12. Remove the return spring.
    GJ0002483Courtesy of JAGUAR CARS, INC.
  13. Remove the selector lever pivot brackets.
