Catalyst Monitor Sensor LH - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

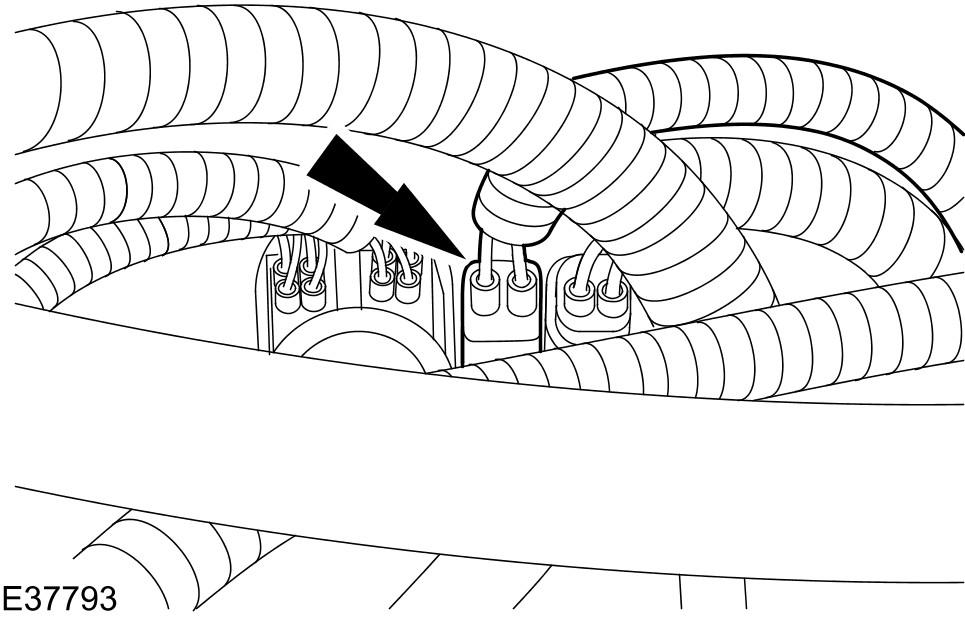

  1. Detach the catalyst monitor sensor electrical connector.
    GJ0002298Courtesy of JAGUAR CARS, INC.

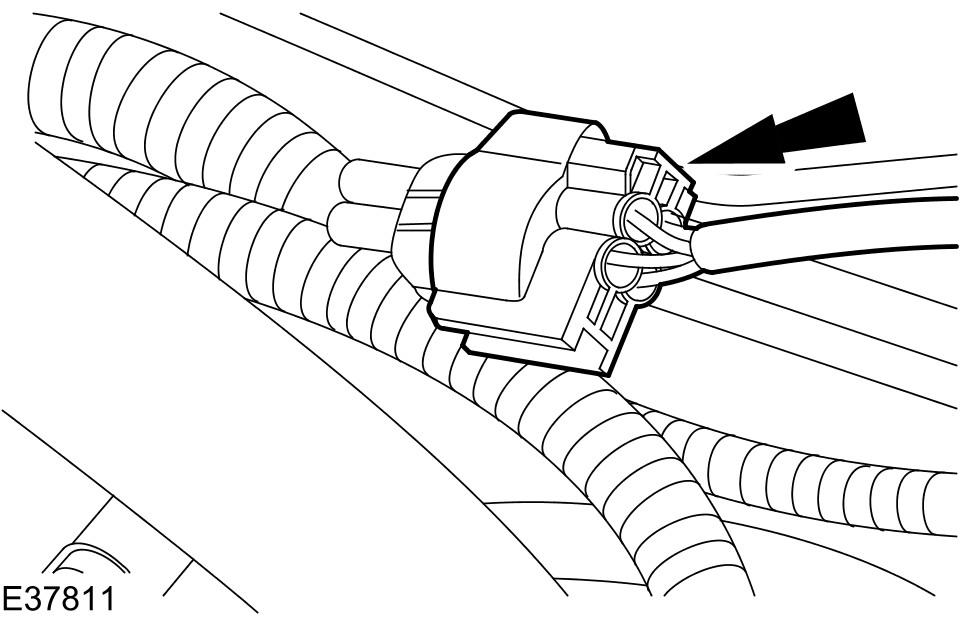

  2. Disconnect the catalyst monitor sensor electrical connector.
    GJ0002282Courtesy of JAGUAR CARS, INC.
  3. Raise and support the vehicle. Refer to Jacking and Lifting .
    4. CAUTION: Make sure the wiring harness is not twisted or damaged on removal. Failure to follow this instruction may result in damage to the vehicle.
  4. Using the Snap-on tool S6176, remove the catalyst monitor sensor.
    GJ0002299Courtesy of JAGUAR CARS, INC.
